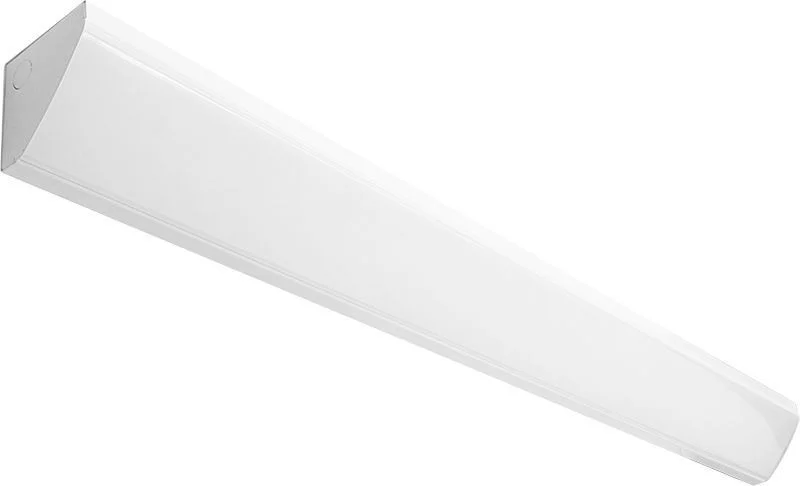

The LCL Series 4-foot LED corner corridor strip light brings efficient, adaptable illumination to everyday commercial spaces. With selectable power and color temperature in a familiar strip-light footprint, it offers a versatile upgrade for corridor and general-purpose lighting.
Key Features and Benefits
- Choose 20W, 30W, or 40W output and 3500K, 4000K, or 5000K color temperature using switches inside the fixture.
- Provides up to 4,600 lumens and supports smooth 0–10V dimming for flexible lighting control.
- Frosted diffuse polycarbonate lens delivers comfortable, evenly distributed light.
- Heavy die-formed steel housing and a white powder-coated finish create a durable, clean appearance.
- Rated for 50,000 hours and backed by a 5-year warranty to support long-term use.
- UL listed and IP44 rated; suitable for damp locations.
Specifications
- Fixture size: 4 ft
- Dimensions: 48 in. (W) × 3 8/9 in. (H) × 3 3/4 in. (D)
- Selectable wattage: 20W / 30W / 40W
- Total lumens: 2,300 / 3,450 / 4,600 lm
- Selectable color temperature: 3500K / 4000K / 5000K
- Input voltage: 120–277 VAC, 50/60 Hz
- Dimming: 0–10V
- Power factor: >0.98
- Efficacy: 115 lm/W
- Color rendering index: CRI ≥ 80
- BUG rating: B1-U3-G2
- Housing: Heavy die-formed steel
- Finish: White powder coated
- Lens: Frosted diffuse polycarbonate
- Mounting: Surface mount or wall mount
- Operating temperature: -22°F to 104°F
- Location rating: Suitable for damp locations
- Optional factory-installed accessories: Internal emergency backup battery, ultrasonic bi-level dimming, PIR occupancy sensor, daylight harvesting sensor, and 125V or 277V plug options
Common Uses
Well suited to corridors, stairwells, public rooms, schools, hospitals, and utility areas, this versatile fixture also serves a range of industrial, commercial, and residential spaces.
