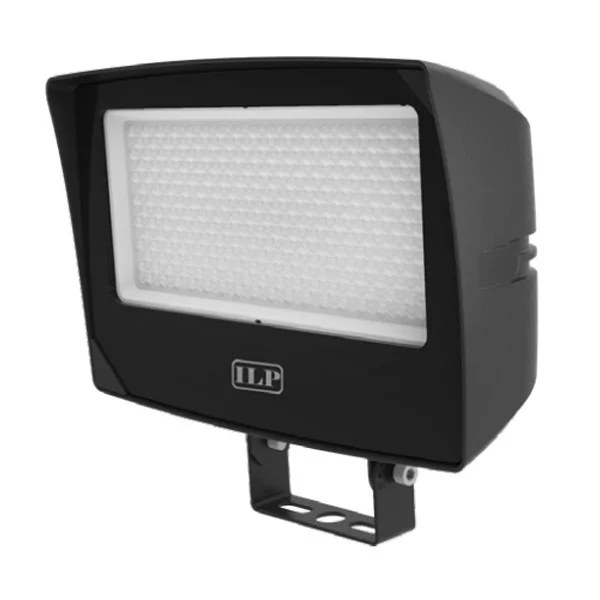

The ILP Viewpoint Floods 2.0 VFM2 is a versatile medium-size architectural flood fixture built for demanding exterior lighting projects. As part of ILP’s scalable VF2.0 family, it combines field-selectable lumen output, CCT, and distribution in one rugged platform to simplify specification and installation.
Key Features and Benefits
- Three selectable lumen settings in one fixture reduce SKU complexity and allow on-site light level tuning.
- Selectable 3000K, 4000K, and 5000K CCT supports visual comfort and application flexibility.
- Selectable 5H5V, 6H6V, and 7H6V optics enable beam pattern adjustment without changing fixtures.
- Durable die-cast aluminum housing with bronze powder coat and tempered glass lens stands up to harsh weather.
- ETL Listed for wet locations and LM-79/LM-80 tested for verified performance and reliability.
- Standard 5-year warranty with optional 10-year coverage for long-term project confidence.
Specifications
- Lumen Output: 7335|9480|11625
- Wattage: 45W|60W|75W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Dimming Type: 0-10V (10%-100%)
- Frequency (Hz): 50/60
- Ingress Protection: IP65
- Operating Temperature: -40°C to 40°C
- Mounting: Trunnion/Yoke (TRN)
- Cord: 18″ 5-wire SO cord
- EPA: 0.17
Common Uses
Ideal for landscape lighting, wall wash, signage, flag poles, spot and flood applications, and elevation illumination in commercial and industrial outdoor environments.
