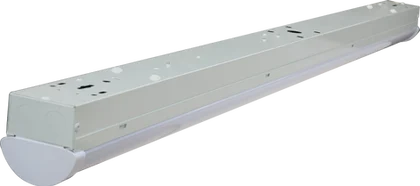

The Honya HY-LS100 series combines strip light efficiency with stairwell-ready performance in a low-profile linear form factor. Designed for flexible field adjustment, this 4′ model offers selectable wattage and CCT to simplify stocking and match varied project requirements. It is a practical, high-value solution across commercial and light industrial lighting upgrades.
Key Features and Benefits
- Field-selectable output with 20W/30W/40W and multi-CCT tuning for on-site adaptability
- Smooth 0-10V dimming support for energy savings and lighting control integration
- Damp-location suitability and robust thermal design with aluminum heatsink for reliable operation
- Long-life performance rated 50,000+ hours (L70) to reduce maintenance cycles
- 5-year warranty coverage for added project confidence
- Optional built-in motion sensor and emergency driver configurations for code-driven applications
Specifications
- Lumen Output: 2600|3900|5200
- Wattage: 20W|30W|40W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K|3500K|5000K|6500K
- CRI: 80
- Power Factor: 0.9
- Beam Angle: 120°
- Rated Life (L70): 50000
- Operating Temperature: -20°C to +40°C (-4°F to +104°F)
- Lens Material: PMMA
- Finish / Color: White
- Frequency (Hz): 50|60
Common Uses
Ideal for stairwells, corridors, warehouses, retail spaces, schools, government buildings, grocery stores, and residential garages where efficient linear illumination and configurable performance are required.
