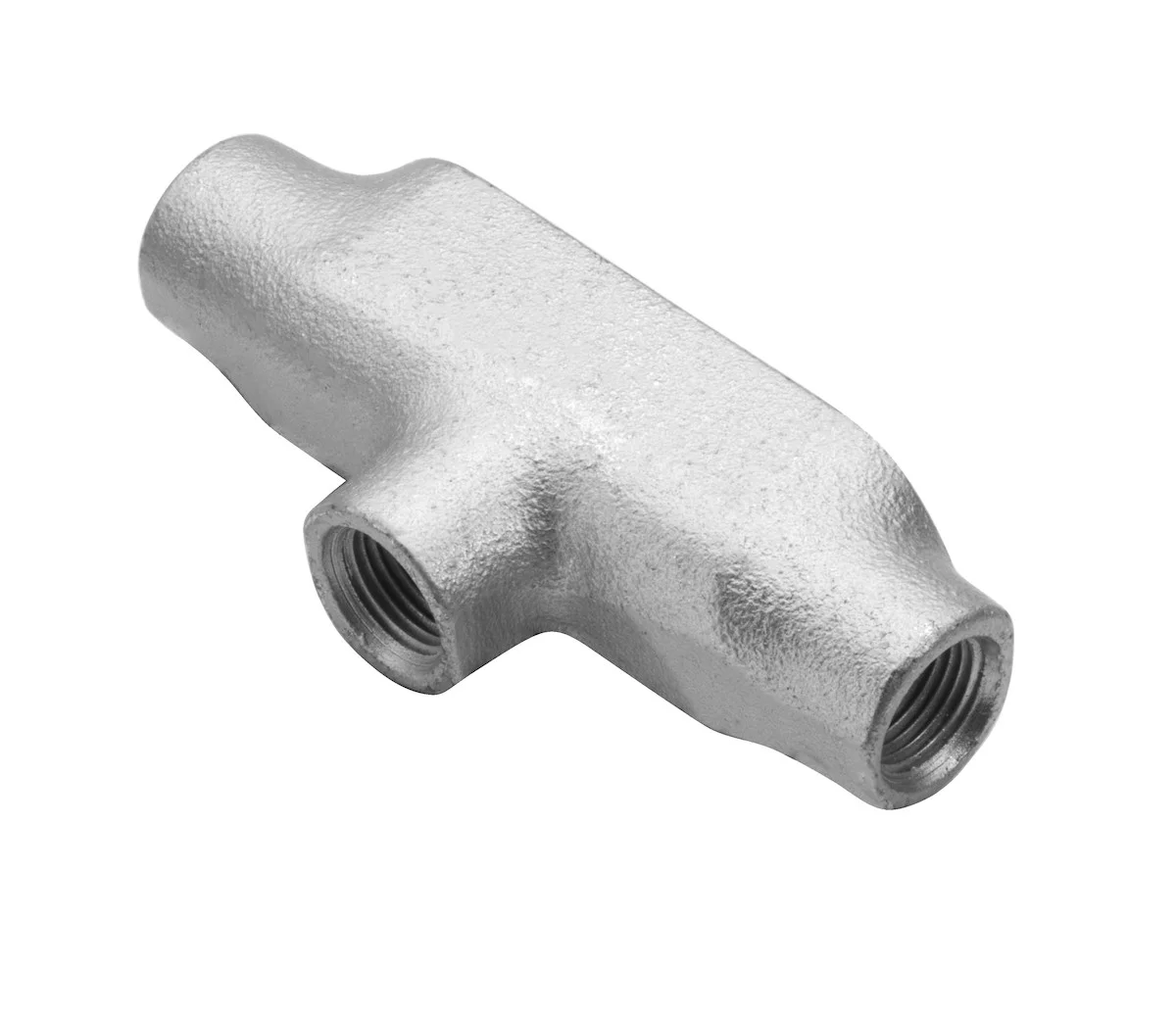

The Garvin Industries TB5M is a 1-1/2″ threaded TB type conduit body crafted from durable malleable iron. Designed for reliability and ease of use, this conduit body is a trusted solution for electrical professionals seeking convenient access to conductors for pulling, splicing, and maintenance tasks.
Key Features and Benefits
- Made from tough malleable iron for long-lasting performance
- 1-1/2″ NPT tapered hubs ensure secure connections
- Zinc-plated and aluminum enameled finish for corrosion resistance
- UL 514A listed and meets Fed. Spec W-C-586D and NEMA FB 1 standards
- Provides easy access to conductors for installation and maintenance
Specifications
- Size: 1-1/2″
- Material: Malleable iron
- Finish: Zinc plated, aluminum enameled
- Max. number of conductors: 3
- Max. wire size: 1 AWG
- Internal volume: 36 in³
- Certifications: UL 514A, Fed. Spec W-C-586D, NEMA FB 1
- Dimensions: 9.3125″ x 2.4375″ x 3.75″
Common Uses
Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, or maintenance.
