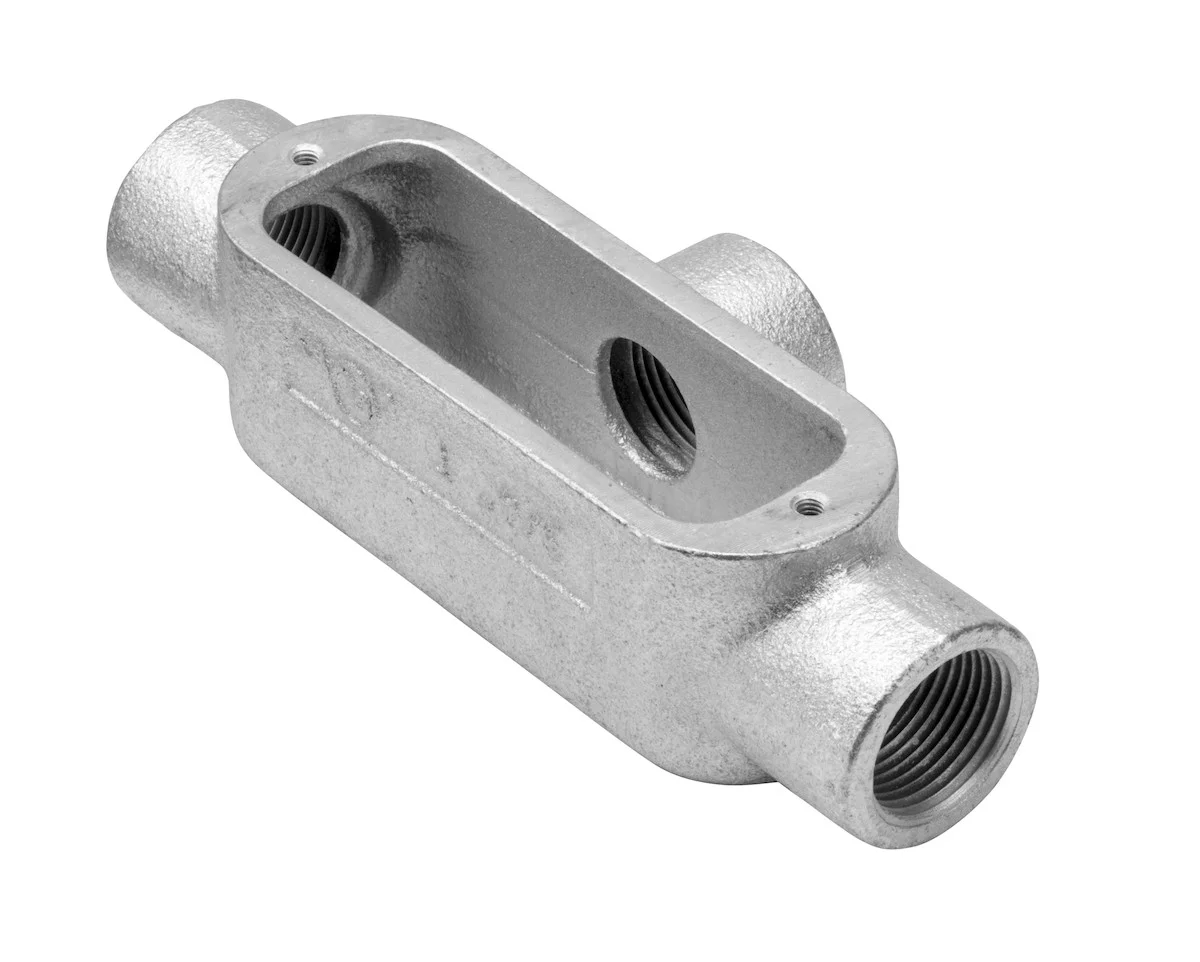

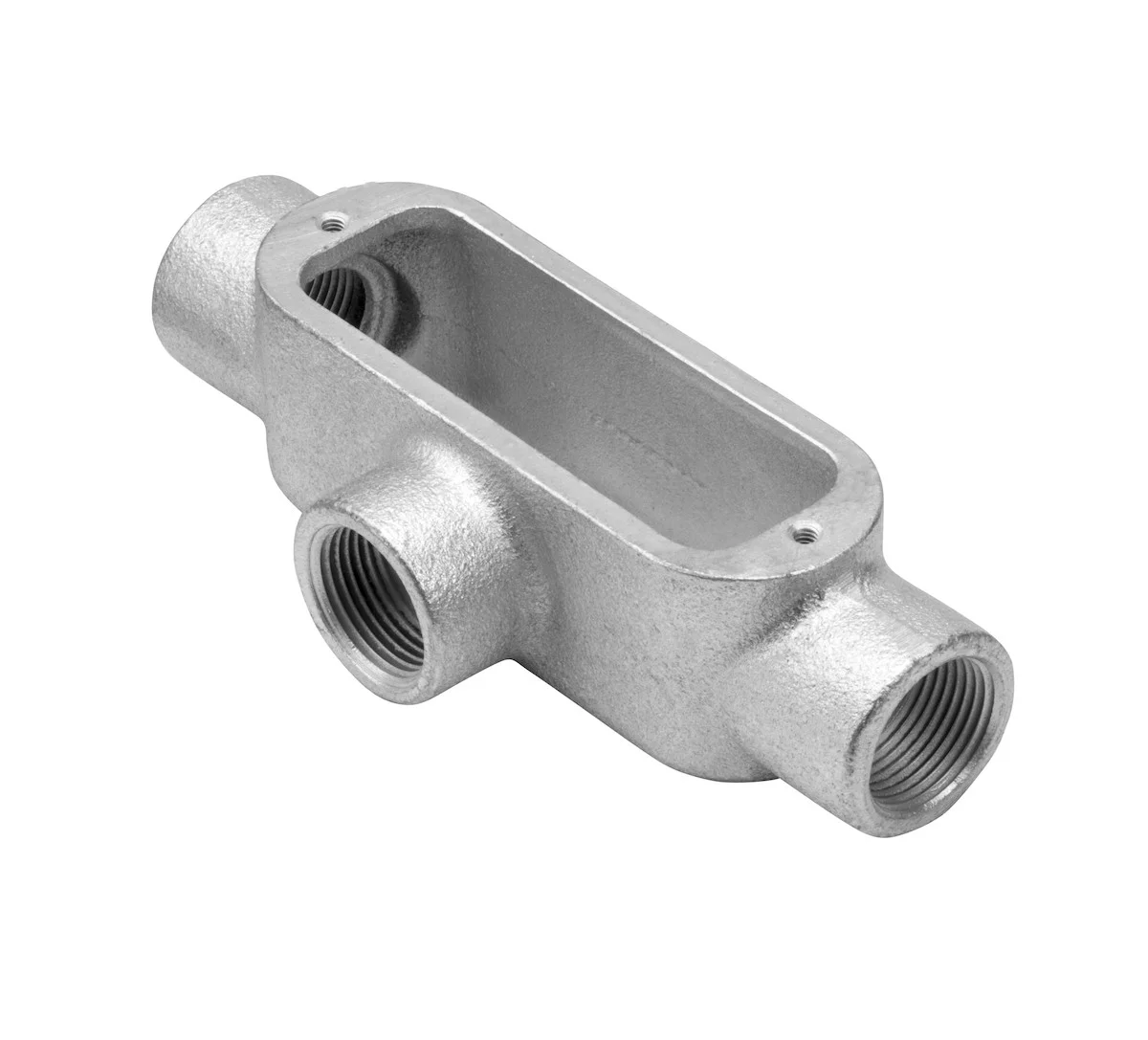

The Garvin Industries T7M is a rugged threaded T type rigid conduit body crafted from malleable iron, designed to provide reliable access to conductors for maintenance and system changes. Its robust construction and ample internal volume make it a go-to solution for demanding electrical installations.
Key Features and Benefits
- Durable malleable iron construction for long-lasting performance
- Threaded NPT tapered hubs ensure secure connections
- Suitable for use in concrete and harsh environments
- Large 138in³ internal volume for easy wire pulling and splicing
- Supports up to 4/0 AWG wire for high-capacity circuits
- Zinc plated and aluminum enameled finish for corrosion resistance
- UL 514A listed, meets Fed. Spec W-C-586D, and NEMA FB 1 compliant
Specifications
- Hub Size: 2-1/2″ NPT
- Number of Hubs: 3
- Max Wire Size: 4/0 AWG
- Internal Volume: 138in³
- Material: Malleable iron
- Finish: Zinc plated, aluminum enameled
- Certifications: UL 514A, Fed. Spec W-C-586D, NEMA FB 1
- Dimensions: 15″ x 3.9375″ x 5.718″
Common Uses
Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for maintenance or future upgrades, especially in concrete or harsh environments.
