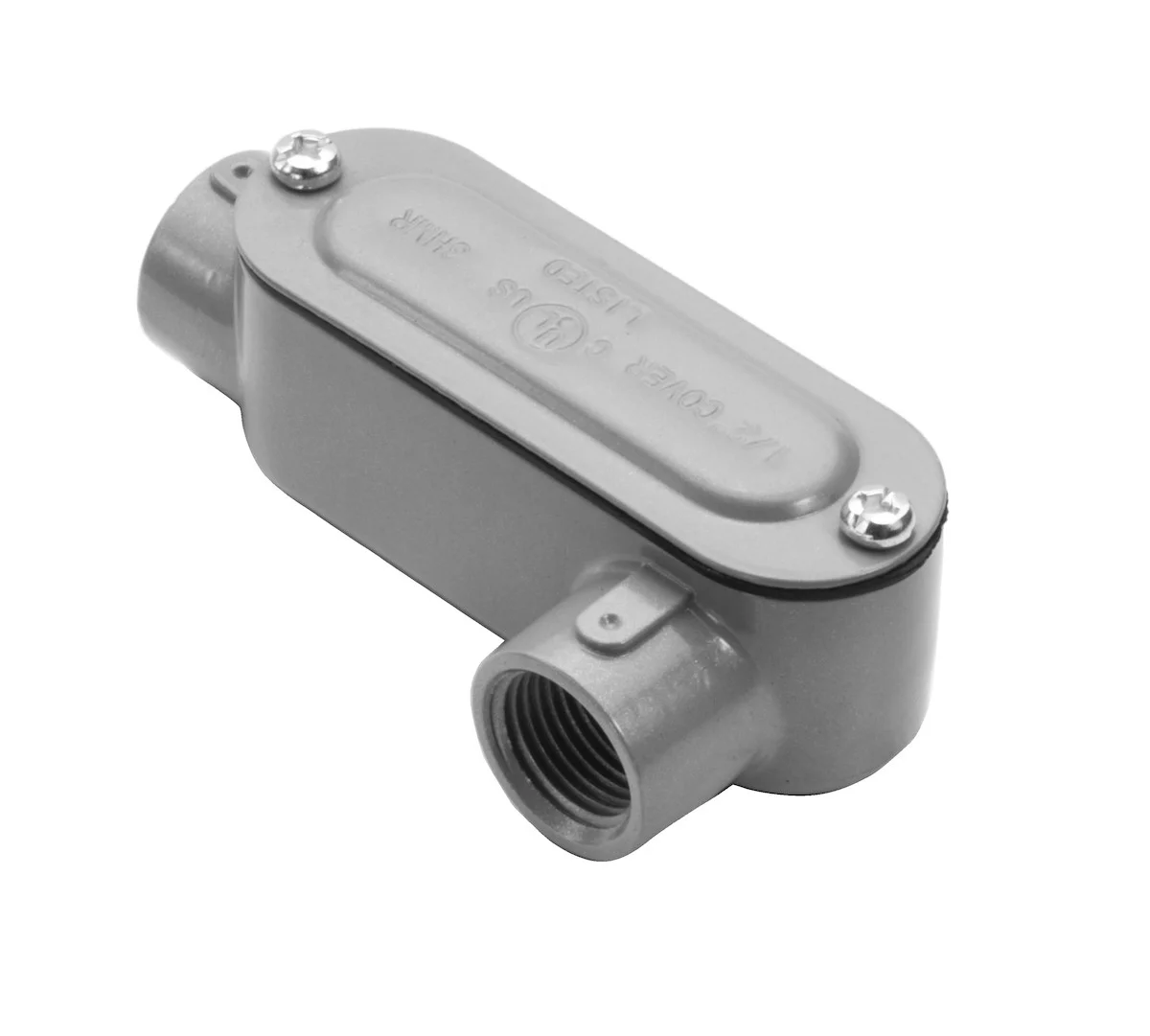

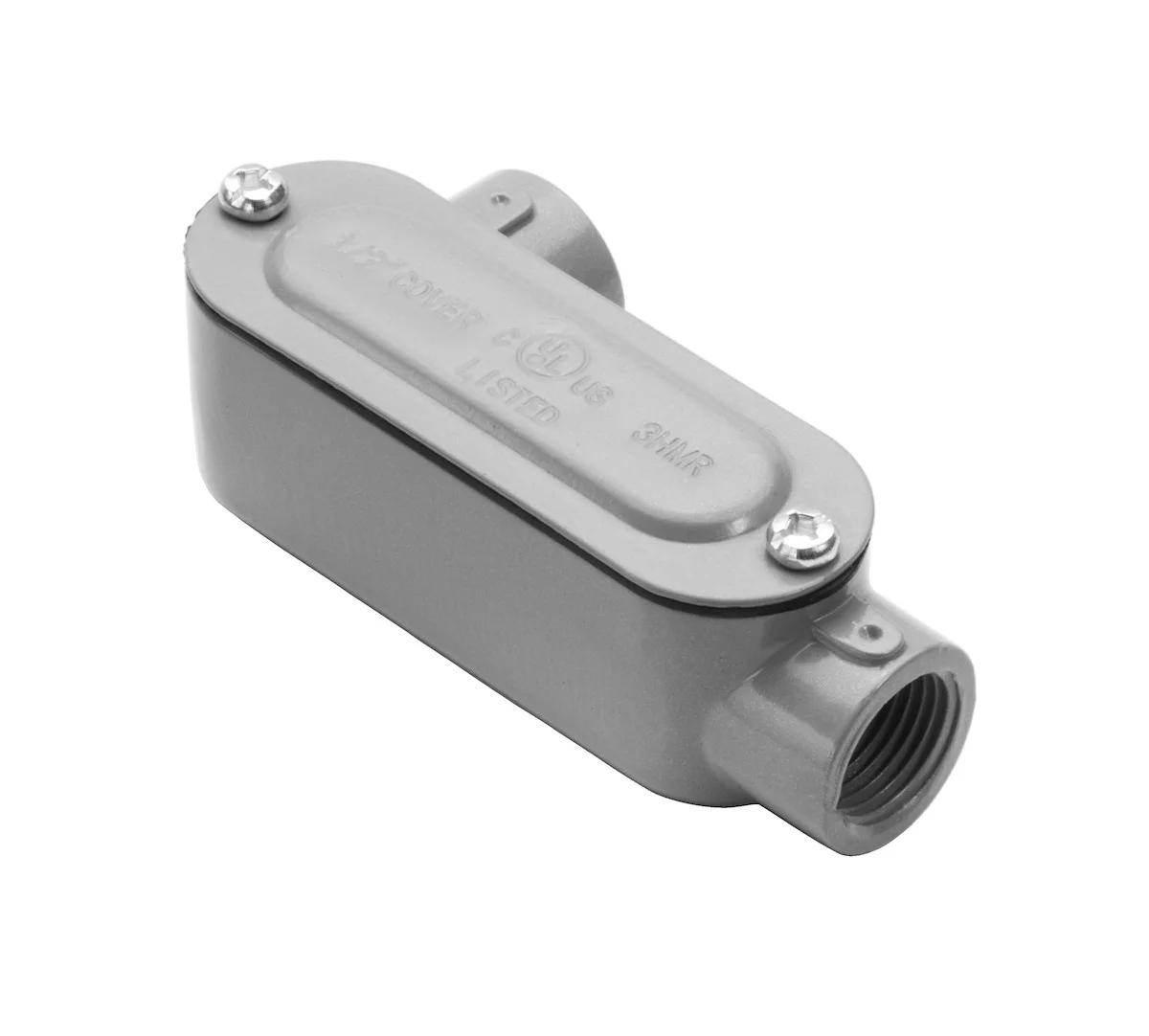

Garvin Industries Rigid Conduit Body, LL Type, 1-1/2″, Threaded, with Cover and Gasket, Copper-Free Aluminum

The Garvin Industries LL5CG is a 1-1/2″ rigid conduit body, LL type, designed for easy access to conductors for pulling, splicing, and maintenance. This model includes a cover and gasket, ensuring protection in wet and concrete environments, and is made from durable copper-free aluminum with a powder coat finish. It’s a reliable choice for demanding electrical installations.

Key Features and Benefits

• Threaded LL type conduit body for secure connections
• Includes cover and neoprene gasket for moisture protection
• Made from copper-free aluminum for corrosion resistance
• Powder coat finish for enhanced durability
• NPT tapered hubs for easy installation
• UL listed and NEMA FB 1 compliant for safety and quality
• Suitable for use in concrete and wet locations

Specifications

• Trade Size: 1-1/2″
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 7.894″ (A) x 2.77″ (B) x 3.385″ (C)
• Max Wire Size: 3 x 2AWG

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
