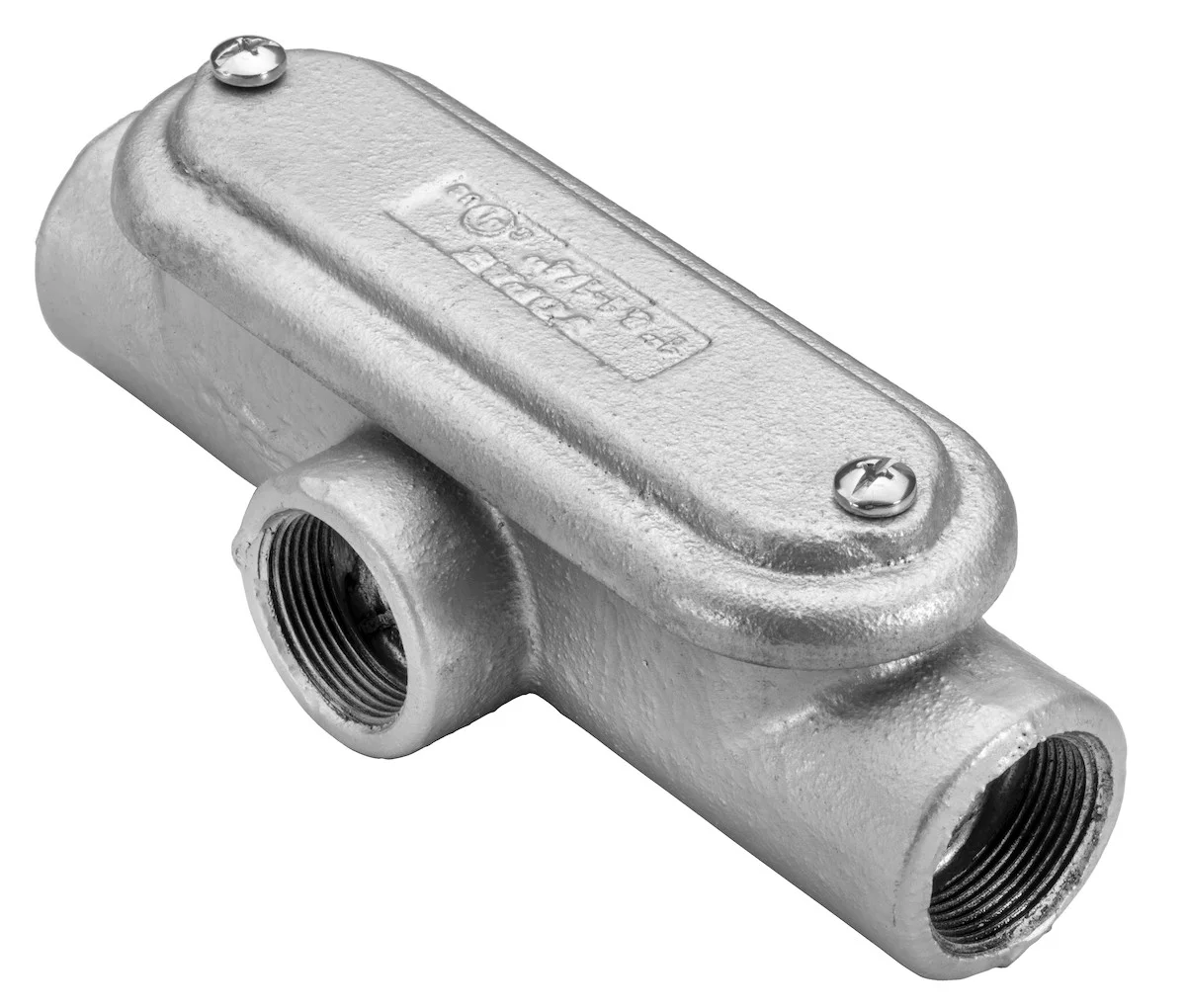

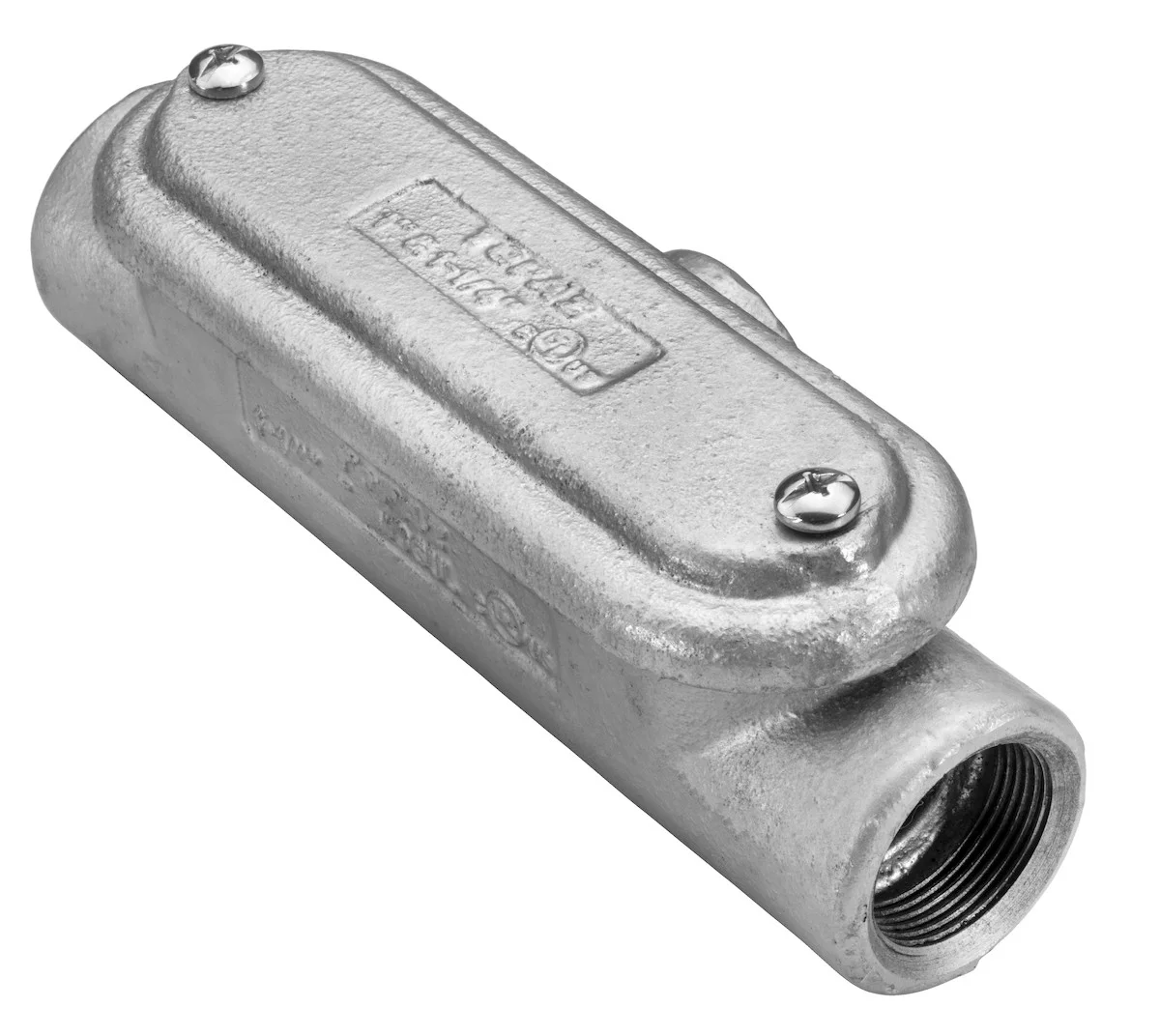

The Garvin Industries MT6CGHDG is a robust 2-inch T type mogul conduit body, crafted from hot dip galvanized malleable iron and designed for demanding electrical installations. This conduit body includes a raised cover, gasket, and stainless steel screws for superior protection and easy access to wiring.
Key Features and Benefits
- Hot dip galvanized finish for enhanced corrosion resistance
- Threaded NPT tapered hubs compatible with Rigid and IMC conduit
- Integral hub bushings protect conductor insulation
- Large internal volume (75 in³) for easy wire pulling, splicing, and taps
- c(UL)us listed for wet locations
- Includes neoprene gasket and stainless steel cover screws for a secure, weather-resistant seal
- Allows access for maintenance and future wiring changes
Specifications
- Size: 2″
- Max Number of Conductors: 3
- Max Conductor Size: 4/0 MCM
- Internal Volume: 75 in³
- Material: Malleable iron body, neoprene gasket, stainless steel screws
- Finish: Hot dip galvanized
- Certifications: UL 514A/514D, Fed. Spec W-C-586D, A-A-50563, NEMA FB 1-2014, NEMA 3R
Common Uses
Ideal for commercial and industrial electrical installations, especially where large conductors or frequent access to wiring is required. Perfect for wet locations, pull outlets, and making straight or 90° turns, taps, and splices.
