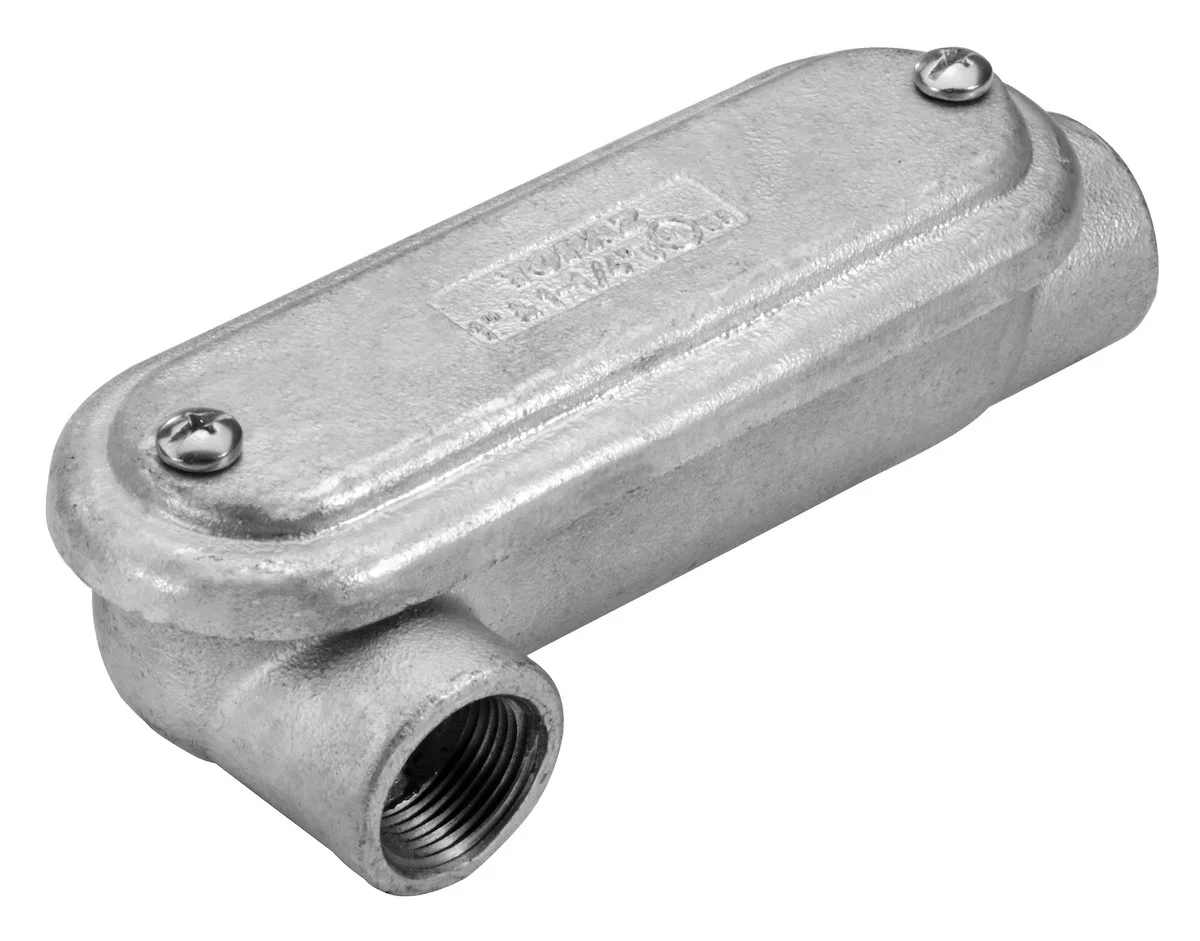

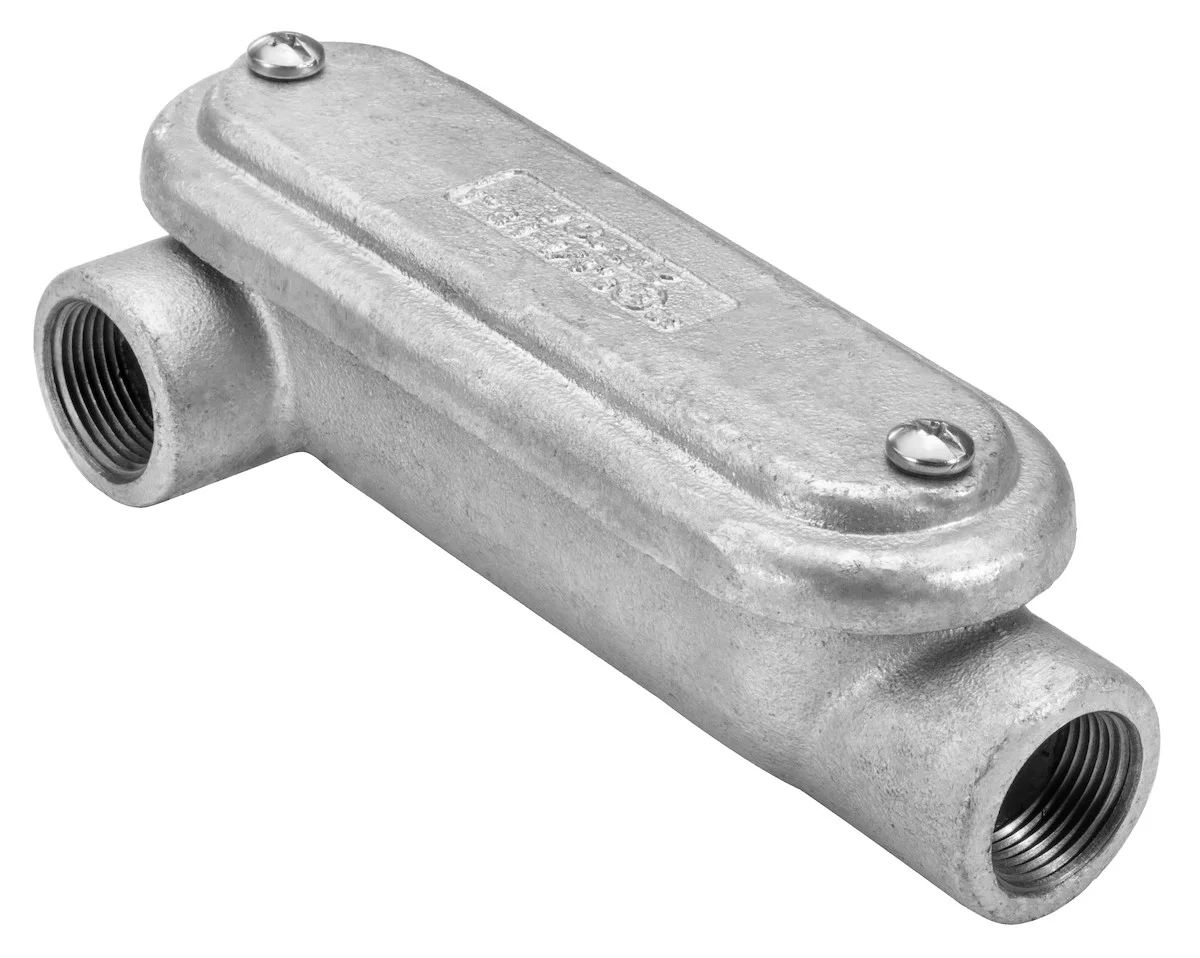

The Garvin Industries MLR3CGHDG is a 1″ LR type mogul conduit body crafted from hot dip galvanized malleable iron, complete with a cover and gasket. This robust conduit body is designed for reliability and ease of installation, making it a trusted choice for demanding electrical applications.
Key Features and Benefits
- Suitable for wet locations and c(UL)us listed for safety
- Threaded NPT tapered hubs for secure fit with Rigid and IMC conduit
- Smooth, round integral hub bushings protect conductor insulation
- Provides easy access for wiring maintenance and future changes
- Includes raised cover, neoprene gasket, and stainless steel screws for a tight seal
- Hot dip galvanized finish for superior corrosion resistance
Specifications
- Size: 1″
- Material: Malleable iron body, neoprene rubber gasket, stainless steel screws
- Finish: Hot dip galvanized
- Internal Volume: 19 in³
- Max Number of Conductors: 3
- Max Conductor Size: 4 AWG
- Certifications: UL 514A, UL 514D, Fed. Spec W-C-586D, A-A-50563, NEMA FB 1-2014, NEMA 3R
- Dimensions: 8.62″ L x 5.98″ W x 1.71″ H
Common Uses
Ideal for pulling straight or 90° angle turns, making taps and splices, and providing access for maintenance in commercial, industrial, and utility electrical installations.
