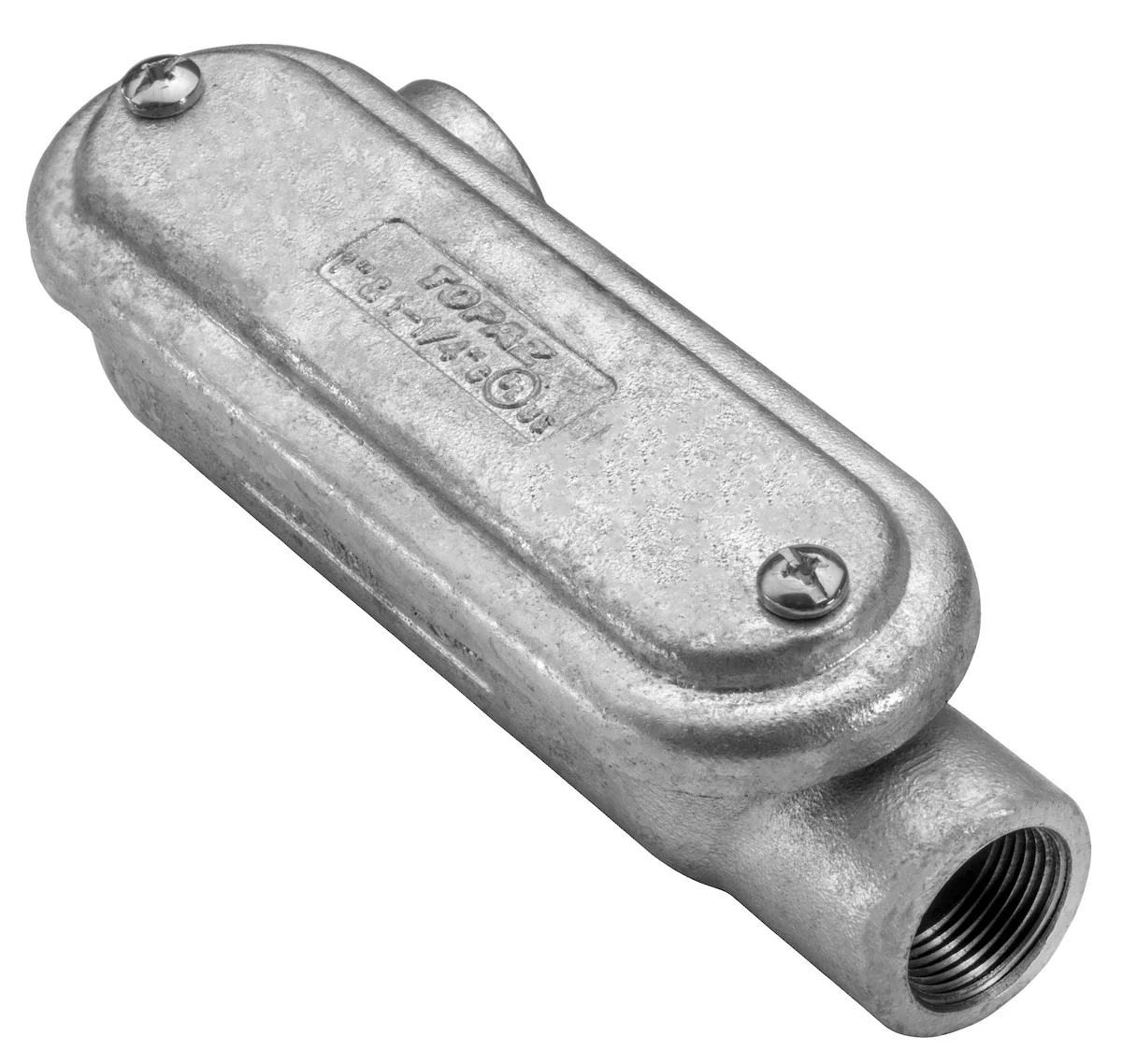

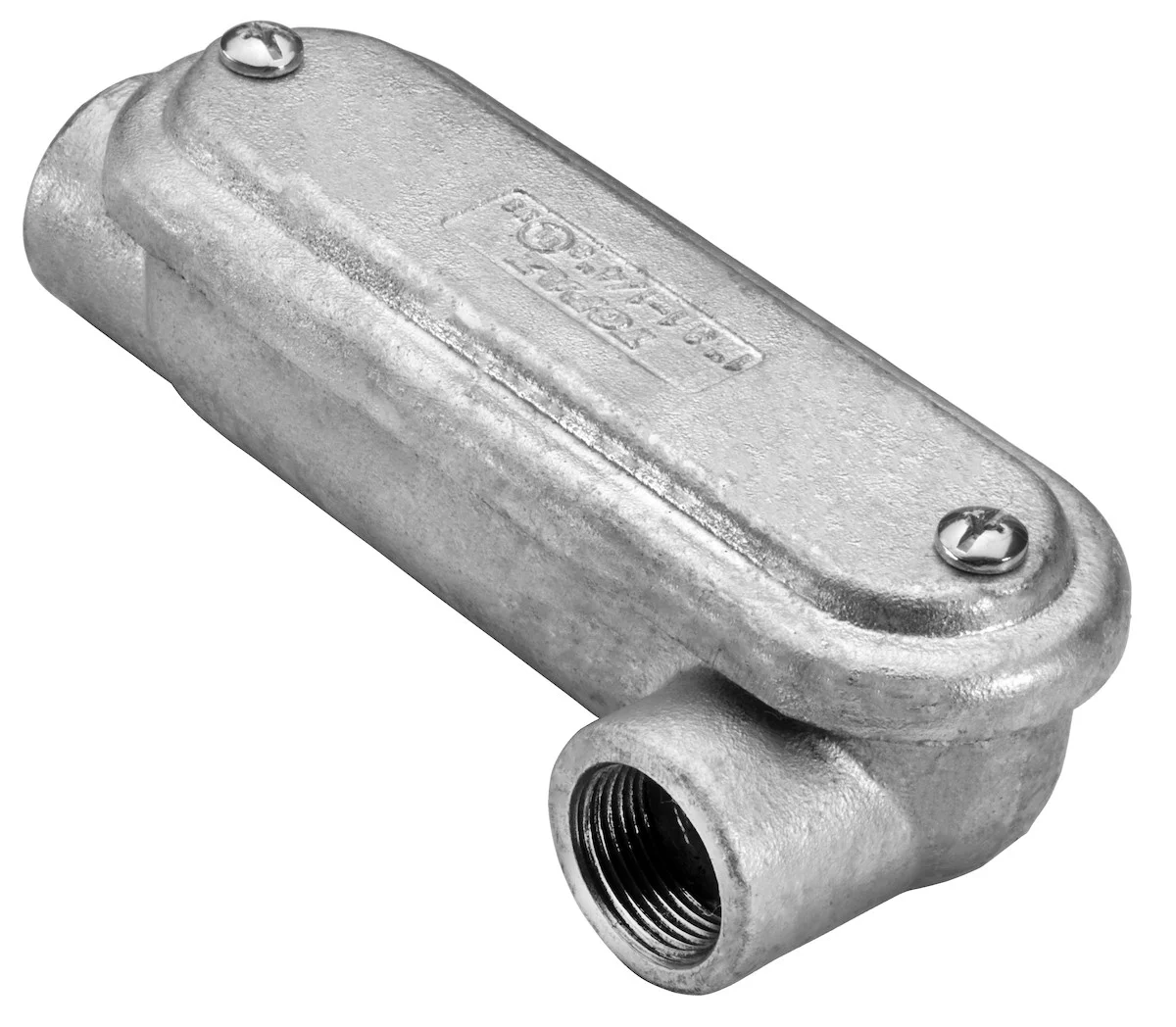

The Garvin Industries MLL4CGHDG is a 1-1/4″ LL type mogul conduit body, designed for durability and reliability in demanding electrical installations. Hot dip galvanized and constructed from malleable iron, this conduit body comes complete with a cover and gasket, making it ideal for wet locations and harsh environments.
Key Features and Benefits
- Hot dip galvanized malleable iron body for superior corrosion resistance
- Comes assembled with raised cover, neoprene gasket, and stainless steel screws
- Threaded NPT tapered hubs fit rigid and IMC conduit
- Smooth, round hub bushings protect conductor insulation
- Large internal volume (25 in³) for easy pulling, splicing, and tapping of large conductors
- UL listed for wet locations and meets multiple industry standards
Specifications
- Size: 1-1/4″
- Max number of conductors: 3
- Max conductor size: 2 AWG
- Internal volume: 25 in³
- Material: Malleable iron, hot dip galvanized
- Gasket: Neoprene rubber
- Screws: Stainless steel
- Certifications: UL 514A, UL 514D, Fed. Spec W-C-586D, A-A-50563, NEMA FB 1-2014, NEMA 3R
Common Uses
Perfect for commercial, industrial, and residential wiring projects where access to conductors for pulling, splicing, or making taps is needed, especially in wet or outdoor environments.
