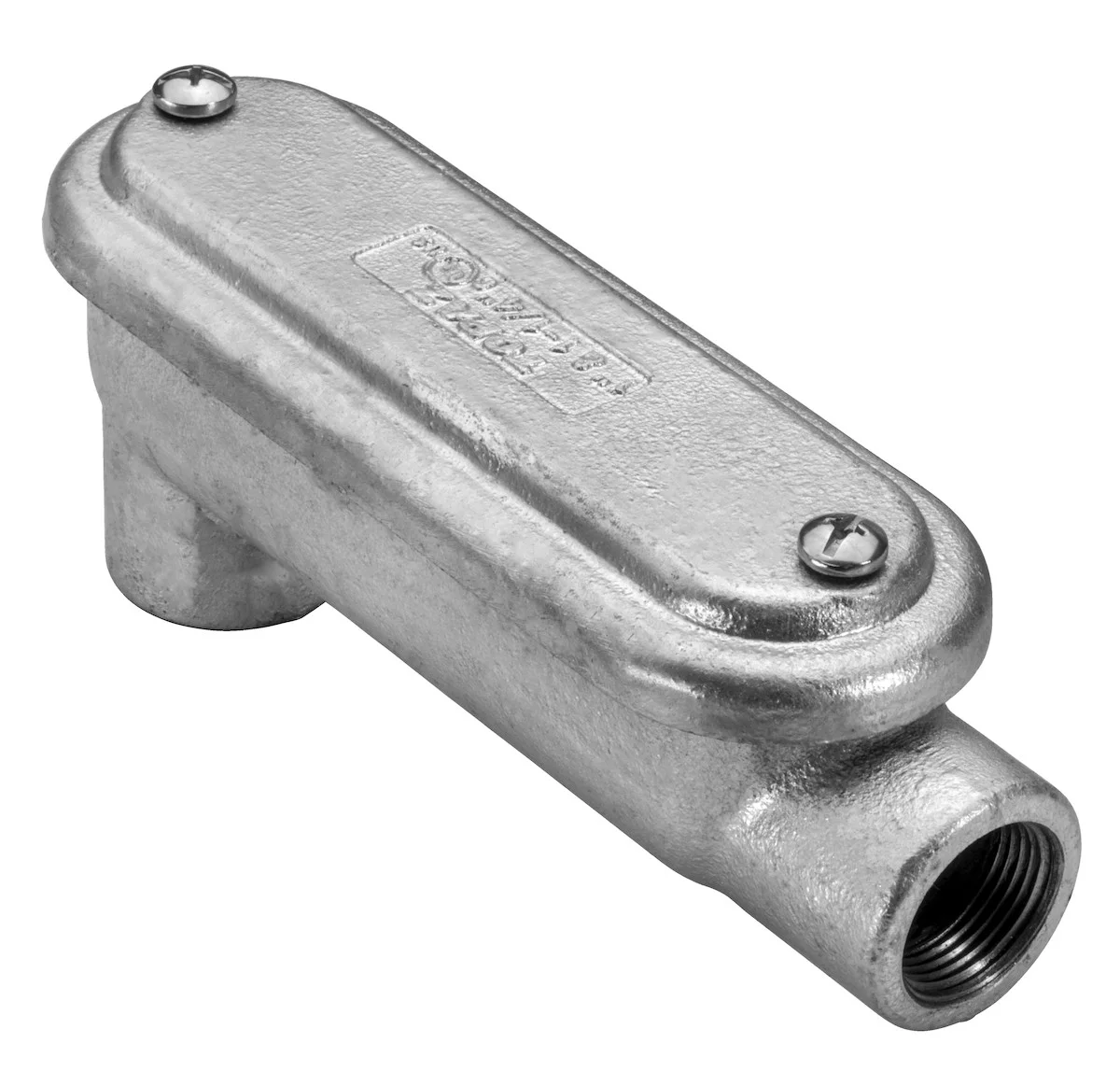

Garvin Industries MLB5CGHDG, 1-1/2″ LB Type Mogul Conduit Body with Cover and Gasket, Hot Dip Galvanized, Malleable Iron, Built-in Roller

The Garvin Industries MLB5CGHDG is a 1-1/2″ LB type mogul conduit body, designed for demanding cable pulls and splicing in wet locations. Its hot dip galvanized malleable iron construction ensures durability, while the built-in roller makes cable installation smoother and easier. This model comes complete with a cover, gasket, and stainless steel screws for a secure, weather-resistant seal.

Key Features and Benefits

• Hot dip galvanized malleable iron body for superior corrosion resistance
• Built-in cable pulling roller for easier wire installation
• Threaded NPT tapered hubs fit rigid and IMC conduit
• Integral hub bushings protect conductor insulation
• Large internal volume (57 in³) for easier splicing and pulling of large conductors
• Includes raised cover, neoprene gasket, and stainless steel screws for wet location use
• UL listed and NEMA 3R rated for safety and reliability

Specifications

• Size: 1-1/2″
• Max Number of Conductors: 3
• Max Conductor Size: 1/0 AWG
• Internal Volume: 57 in³
• Material: Malleable Iron
• Finish: Hot Dip Galvanized
• Certifications: UL 514A, UL 514D, NEMA 3R

Common Uses

Ideal for pulling, splicing, and tapping large conductors in commercial and industrial conduit runs, especially where moisture protection and durability are critical.
