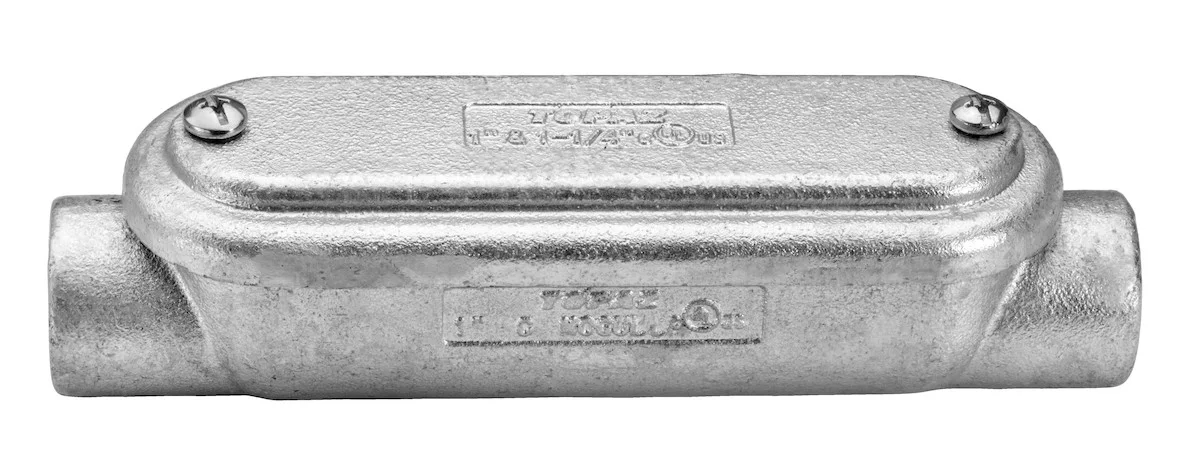

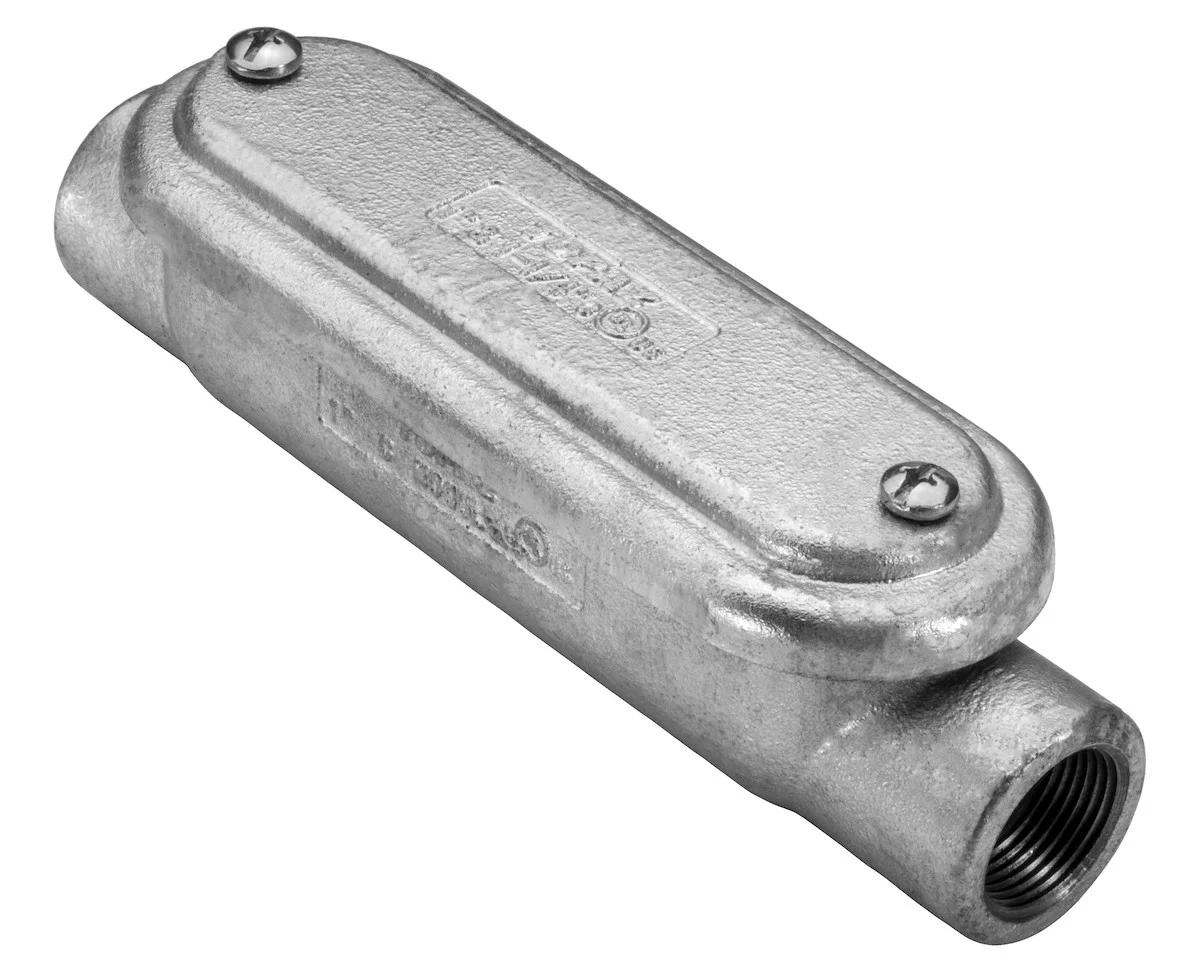

Garvin Industries MC6CGHDG, 2″ Mogul Conduit Body, C Type with Rollers, Hot Dip Galvanized, Malleable Iron, with Cover and Gasket

The Garvin Industries MC6CGHDG is a robust 2″ mogul conduit body designed for demanding electrical installations. As part of Southwire’s trusted lineup, this C type conduit body features built-in rollers for easier cable pulling and is constructed from hot dip galvanized malleable iron for superior durability and corrosion resistance. The included cover and gasket ensure a weather-resistant seal, making it suitable for wet locations.

Key Features and Benefits

• Built-in cable pulling roller for easier installation of large conductors
• Hot dip galvanized malleable iron body for long-lasting protection
• Threaded NPT tapered hubs compatible with Rigid and IMC conduit
• Integral hub bushings protect conductor insulation
• Raised cover with gasket and stainless steel screws for a secure, weather-resistant fit
• UL listed and NEMA 3R rated for safety and reliability

Specifications

• Size: 2″
• Max. number of conductors: 3
• Max. wire size: 4/0 MCM
• Internal volume: 75 in³
• Dimensions: 13.75″ x 10″ x 9.17″
• Material: Hot dip galvanized malleable iron
• Gasket: Neoprene rubber
• Screws: Stainless steel
• Certifications: UL 514A, UL 514D, NEMA 3R, Fed. Spec W-C-586D, A-A-50563

Common Uses

Ideal for commercial and industrial electrical installations requiring long and large openings for pulling, splicing, and tapping large or stiff conductors, especially in wet or outdoor environments.
