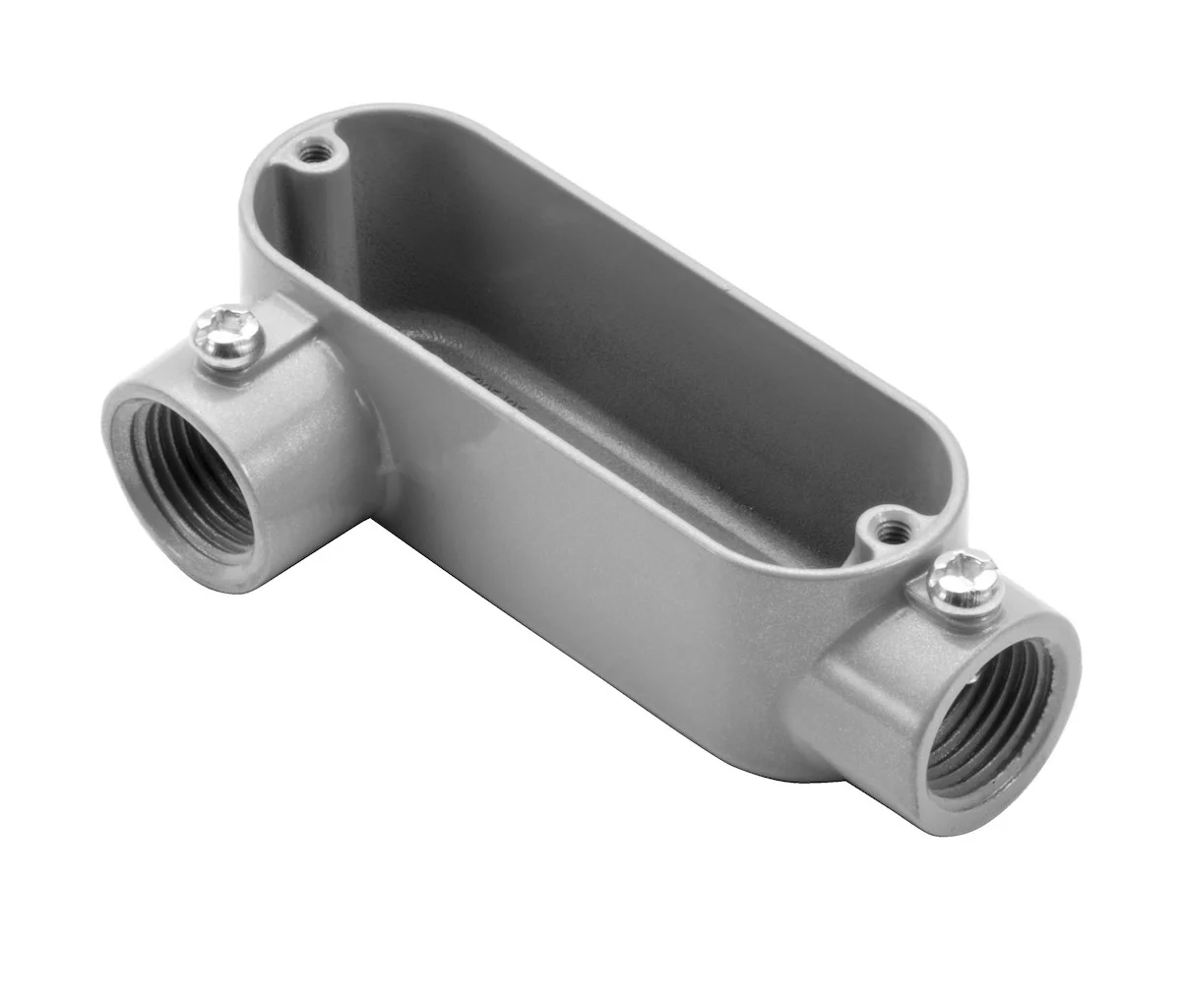

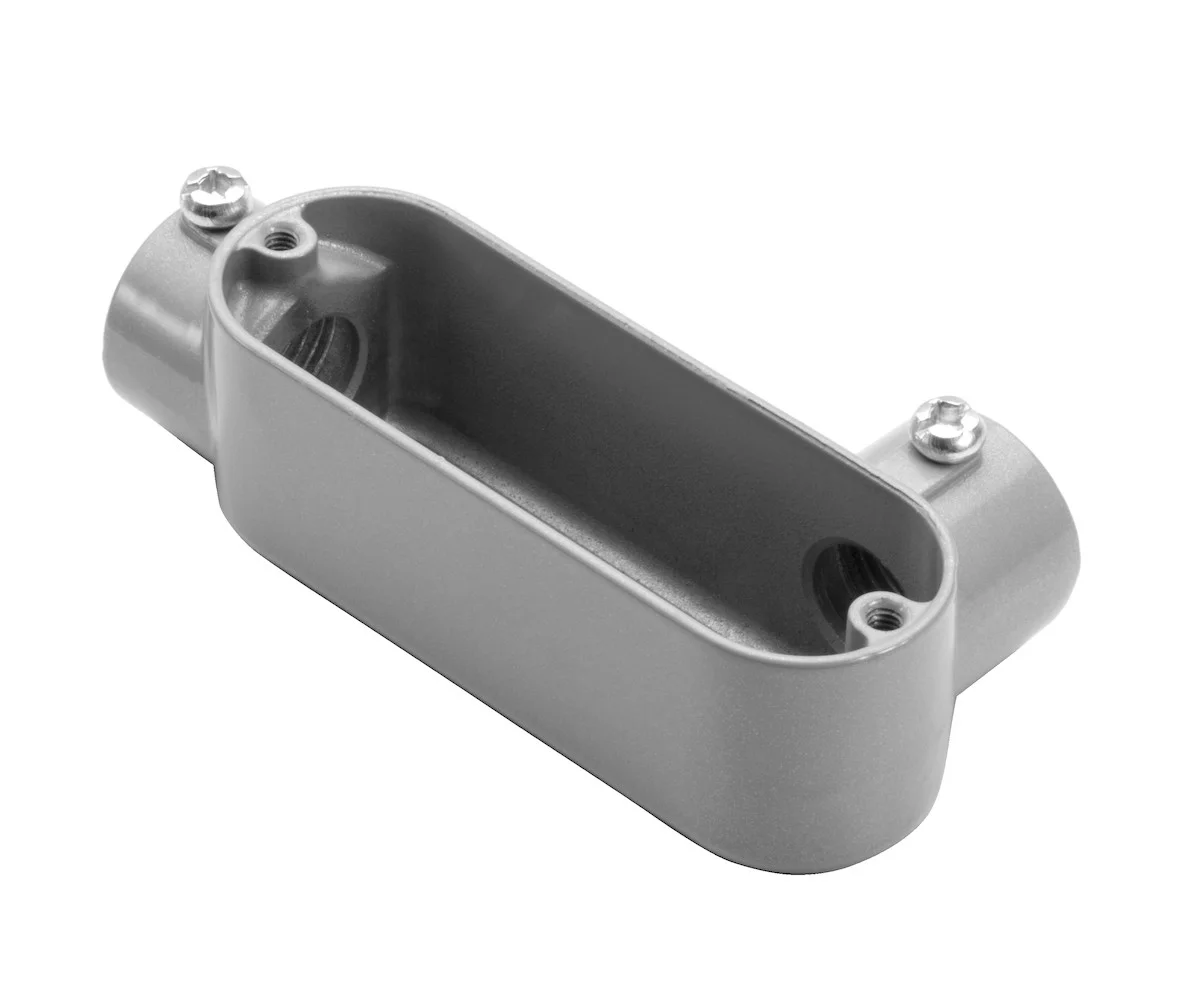

Garvin Industries LR6SS, 2″ Combination LR Type Conduit Body, Copper-Free Aluminum, NPT Tapered Hubs

The Garvin Industries LR6SS is a robust 2″ combination LR type conduit body designed to provide easy access to conductors for pulling, splicing, and maintenance. Built from copper-free aluminum and finished with a durable powder coat, this conduit body is engineered for longevity and reliability in demanding environments. Its NPT tapered hubs and NEMA FB 1 rating make it suitable for wet locations when used with threaded rigid metal conduit only.

Key Features and Benefits

• Combination LR type for versatile installations
• NPT tapered hubs ensure secure, leak-resistant connections
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish adds durability and longevity
• UL listed and meets Fed. Spec. W-C-586D
• NEMA FB 1 rated for wet locations with threaded rigid conduit
• Steel screws for added strength

Specifications

• Trade Size: 2″
• Max Wire Size: 2/0 AWG
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 10.48″ (A) x 3.29″ (B) x 4.07″ (C)

Common Uses

Ideal for commercial and industrial electrical installations, especially where access to conductors for pulling, splicing, or maintenance is required. Suitable for wet locations and concrete applications.
