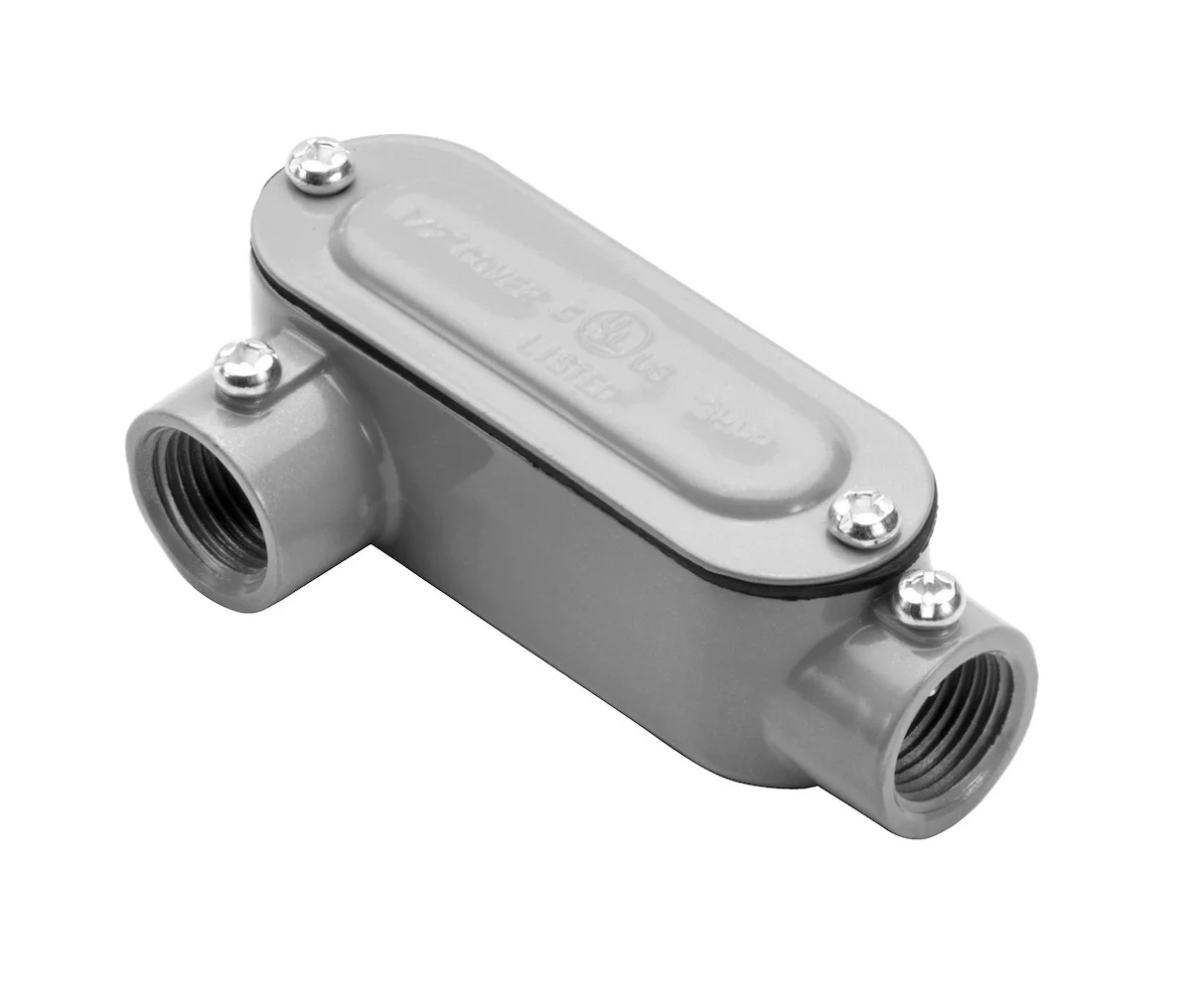

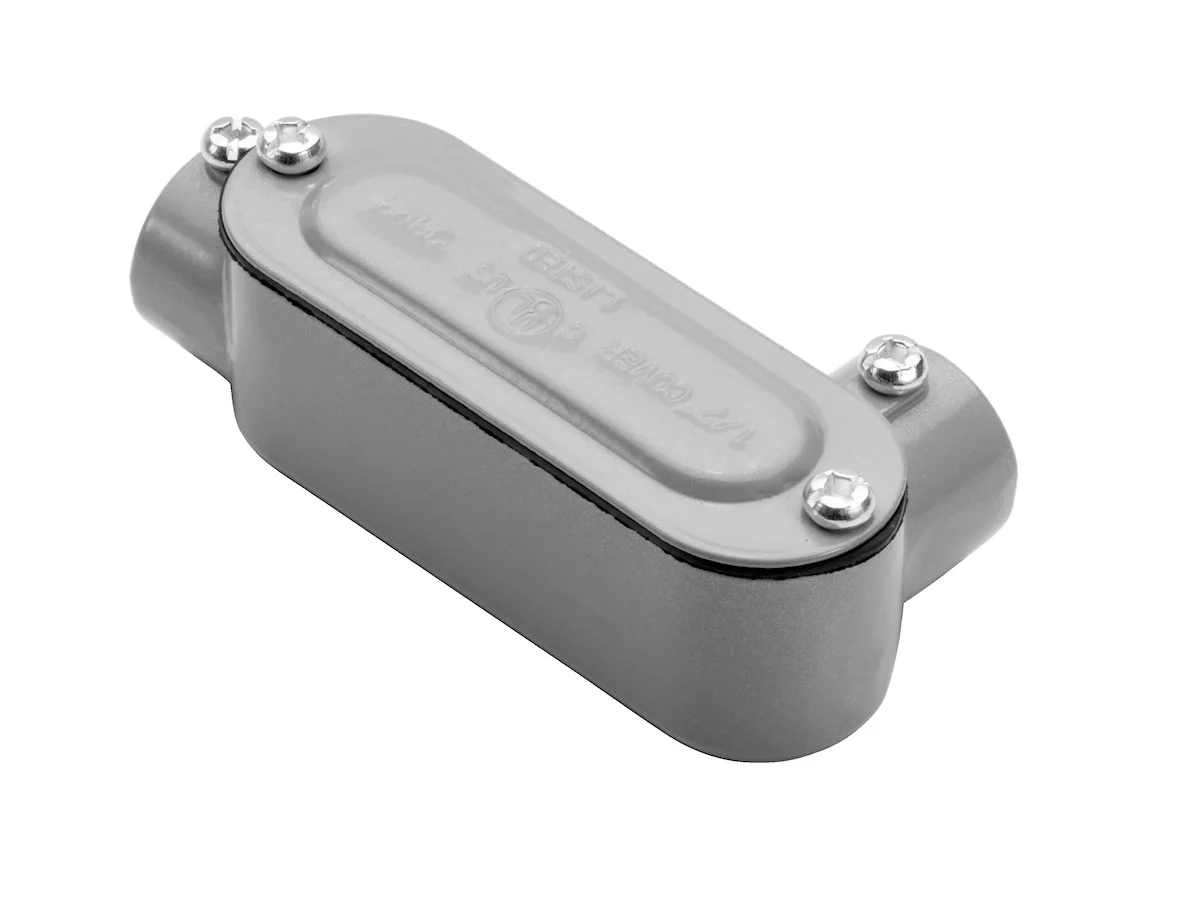

Garvin Industries LR5SSCG, 1-1/2″ EMT and Rigid Combination Conduit Body, LR Type, with Cover and Gasket, Copper-Free Aluminum

The Garvin Industries LR5SSCG is a 1-1/2″ EMT and rigid combination conduit body, LR type, designed for reliable access to conductors for pulling, splicing, and maintenance. This robust conduit body comes complete with a cover and gasket, making it ideal for wet locations and concrete installations.

Key Features and Benefits

• Combination LR type for versatile conduit runs
• Includes stamped steel cover and neoprene rubber gasket for a secure seal
• NPT tapered hubs ensure tight, leak-resistant connections
• Suitable for use in concrete and wet locations
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• UL 514A and NEMA FB 1 certified for safety and quality

Specifications

• Size: 1-1/2″
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Max Wire Size: 2 AWG
• Dimensions: 8.22″ (A) x 2.67″ (B) x 3.48″ (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, and maintenance, especially in wet or concrete environments.
