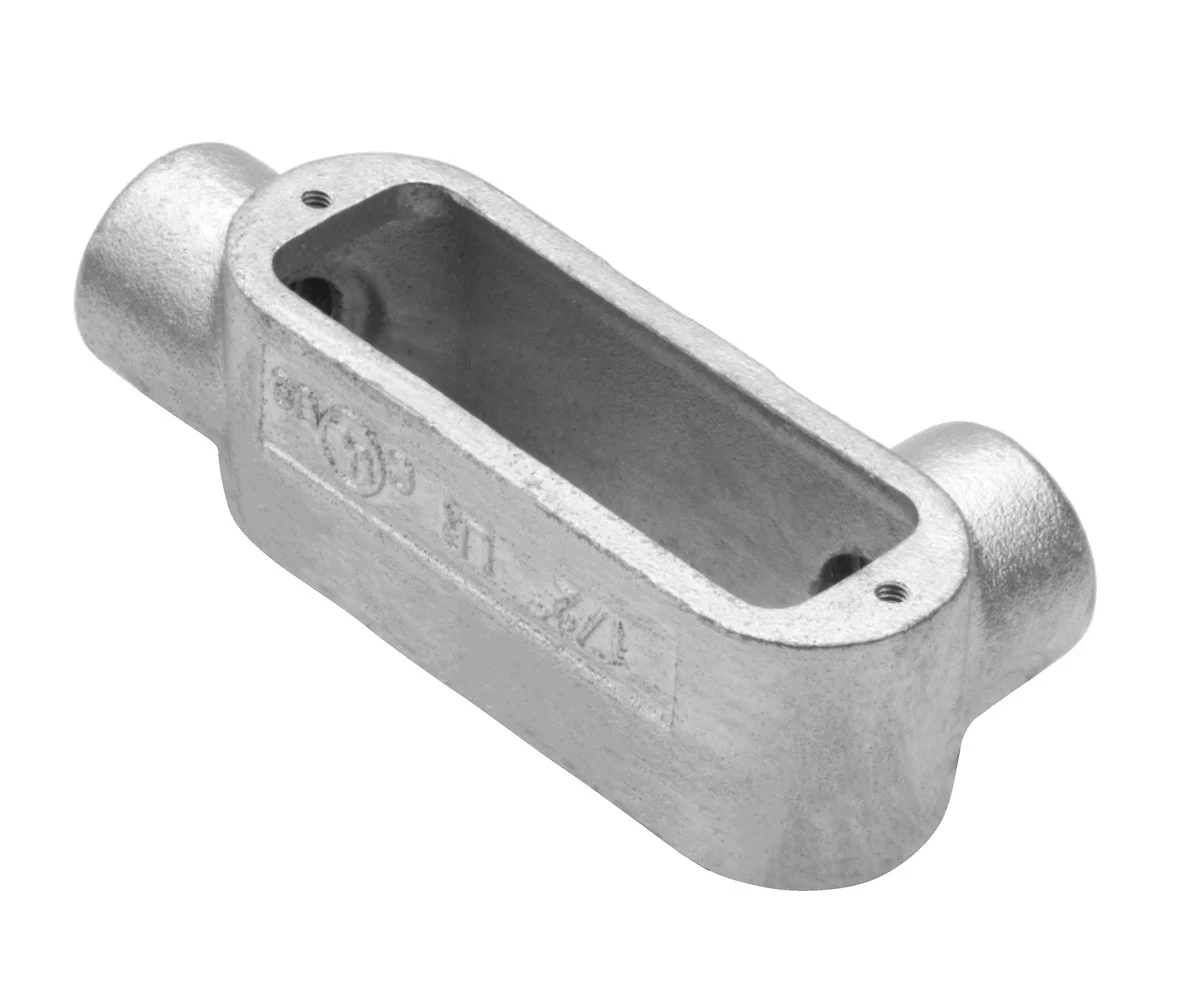

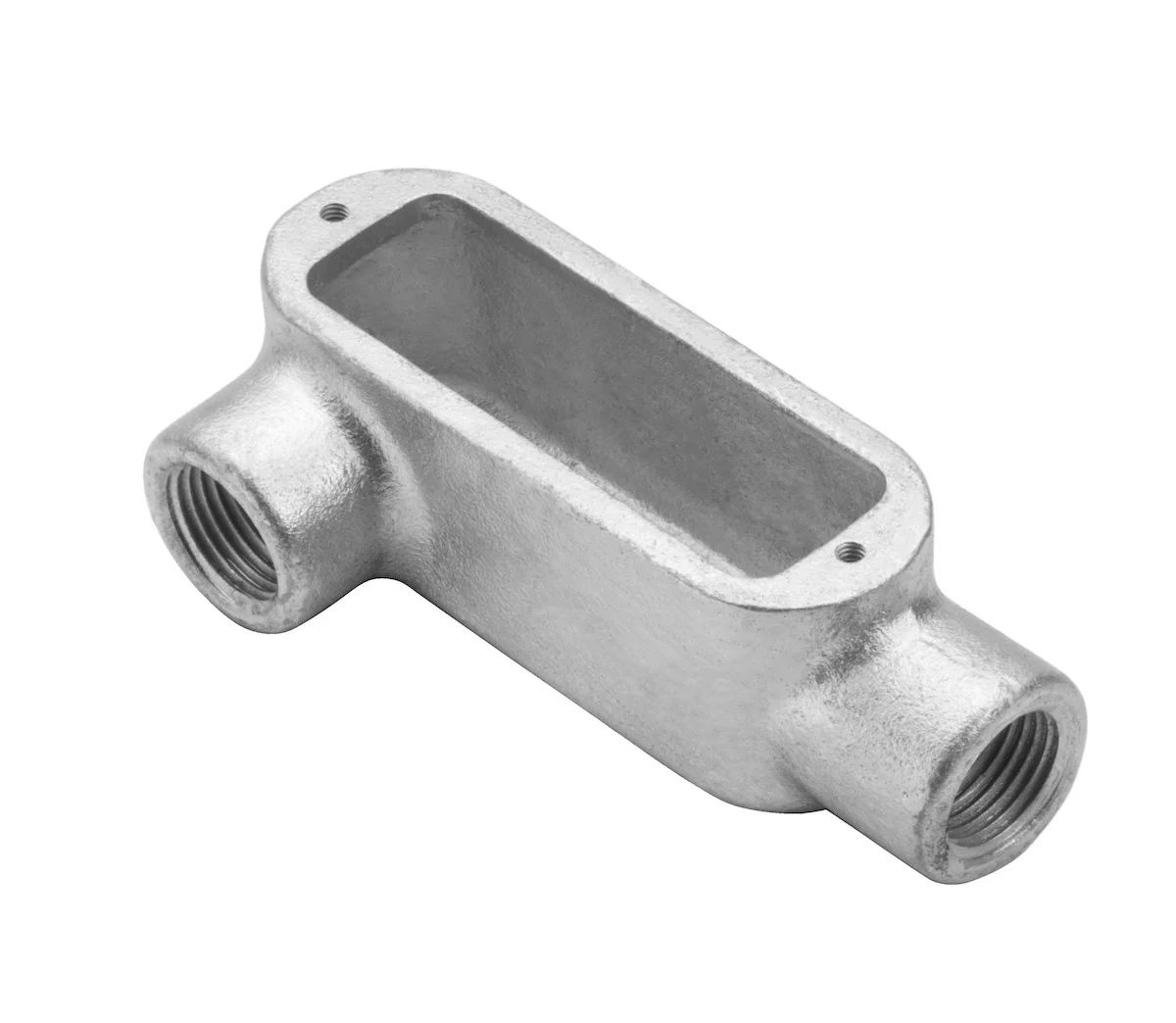

The Garvin Industries LR2M is a 3/4″ threaded LR type conduit body crafted from durable malleable iron, making it a reliable choice for electrical installations. Designed for easy access to conductors, this conduit body is essential for maintenance and future system changes.
Key Features and Benefits
- Constructed from robust malleable iron for long-lasting performance
- NPT tapered hubs ensure a secure and tight fit
- Suitable for use in concrete installations
- Zinc plated and aluminum enameled for enhanced corrosion resistance
- Provides convenient access to conductors for maintenance
- UL 514A listed and compliant with Fed. Spec W-C-586D and NEMA FB 1
Specifications
- Size: 3/4″
- Maximum number of conductors: 3
- Maximum wire size: 6 AWG
- Internal volume: 7.5 in³
- Material: Malleable iron
- Finish: Zinc plated, aluminum enameled
- Certifications: UL 514A, Fed. Spec W-C-586D, NEMA FB 1
- Dimensions: 5.31″ (A) x 1.62″ (B) x 2.23″ (C)
Common Uses
Ideal for commercial, industrial, and residential electrical conduit installations where access to wiring is required for maintenance or future upgrades.
