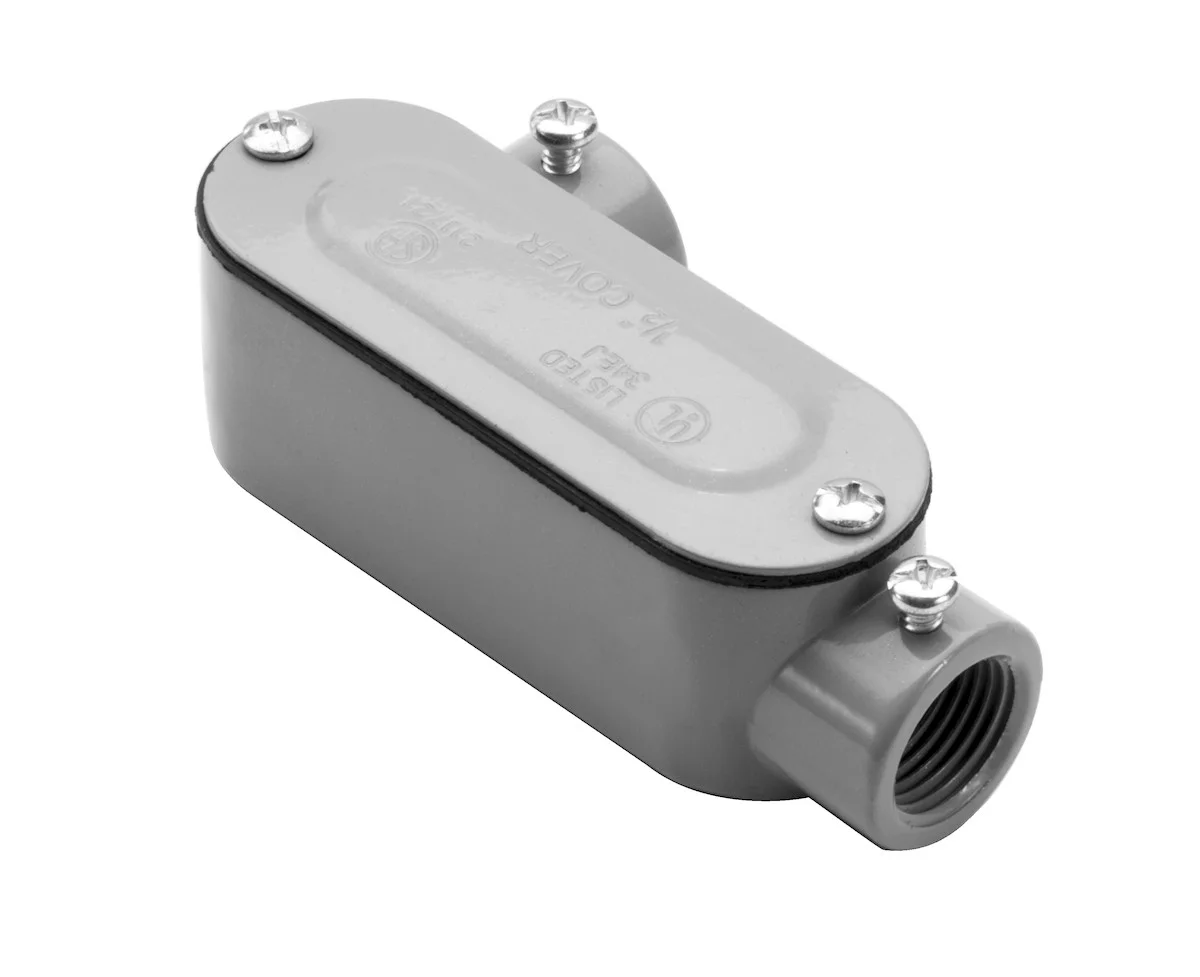

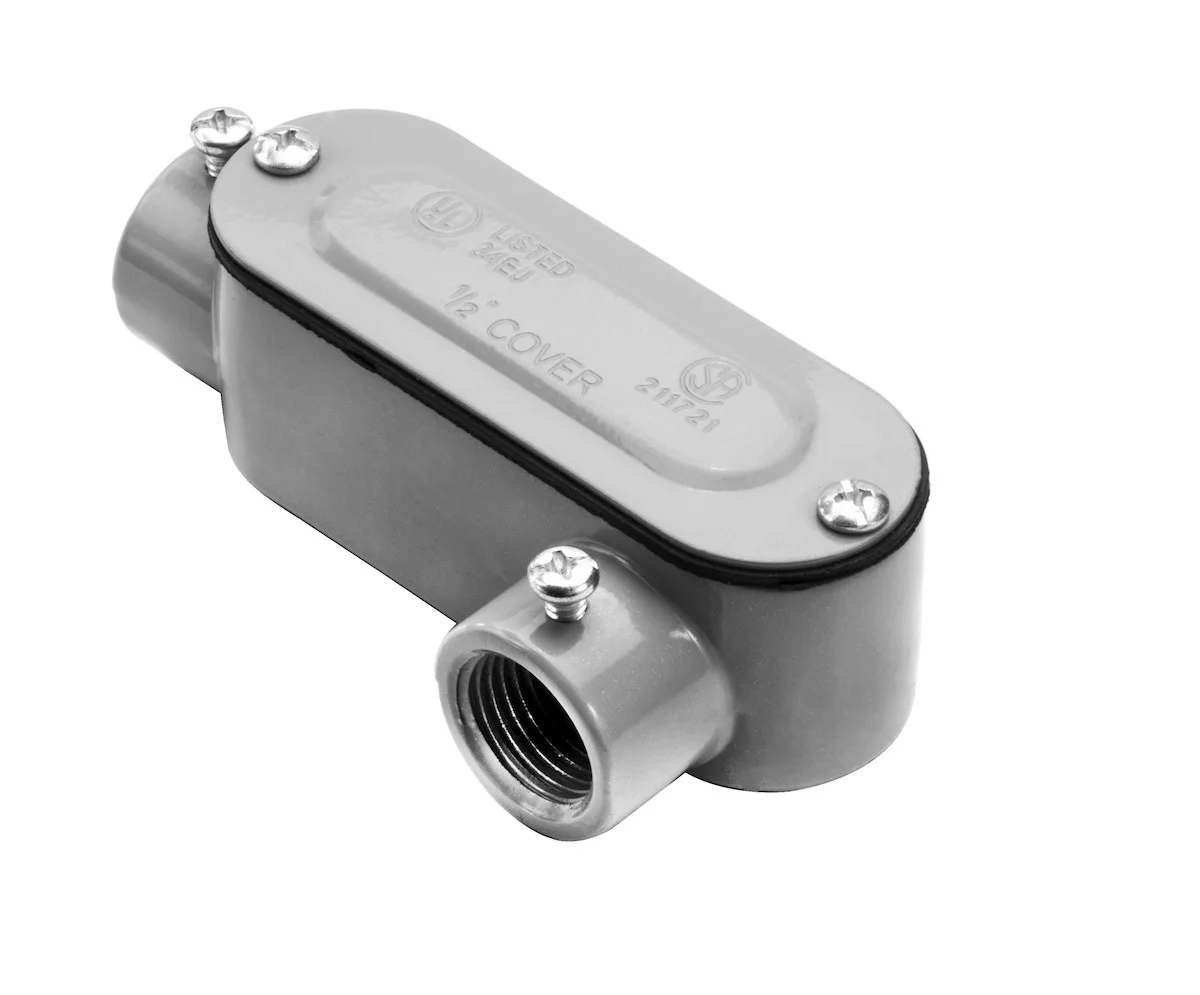

Garvin Industries LL5SSCG, 1-1/2″ EMT and Rigid Combination Conduit Body, LL Type, With Cover and Gasket, Copper-Free Aluminum

The Garvin Industries LL5SSCG is a 1-1/2″ EMT and rigid combination conduit body, LL type, designed to provide reliable access to conductors for pulling, splicing, and maintenance. This essential component in the Garvin lineup features a durable copper-free aluminum die-cast body, a stamped steel cover, and a neoprene rubber gasket, ensuring long-lasting performance in demanding environments.

Key Features and Benefits

• Combination LL type body with cover and gasket for secure installation
• NPT tapered hubs for easy conduit connection
• Rated for wet locations and suitable for use in concrete
• Powder coat finish for added durability and corrosion resistance
• Copper-free aluminum construction for lightweight strength
• UL 514A and NEMA FB 1 certified for quality assurance

Specifications

• Size: 1-1/2″
• Max wire size: 2 AWG
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 8.22″ (A) x 2.67″ (B) x 3.48″ (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
