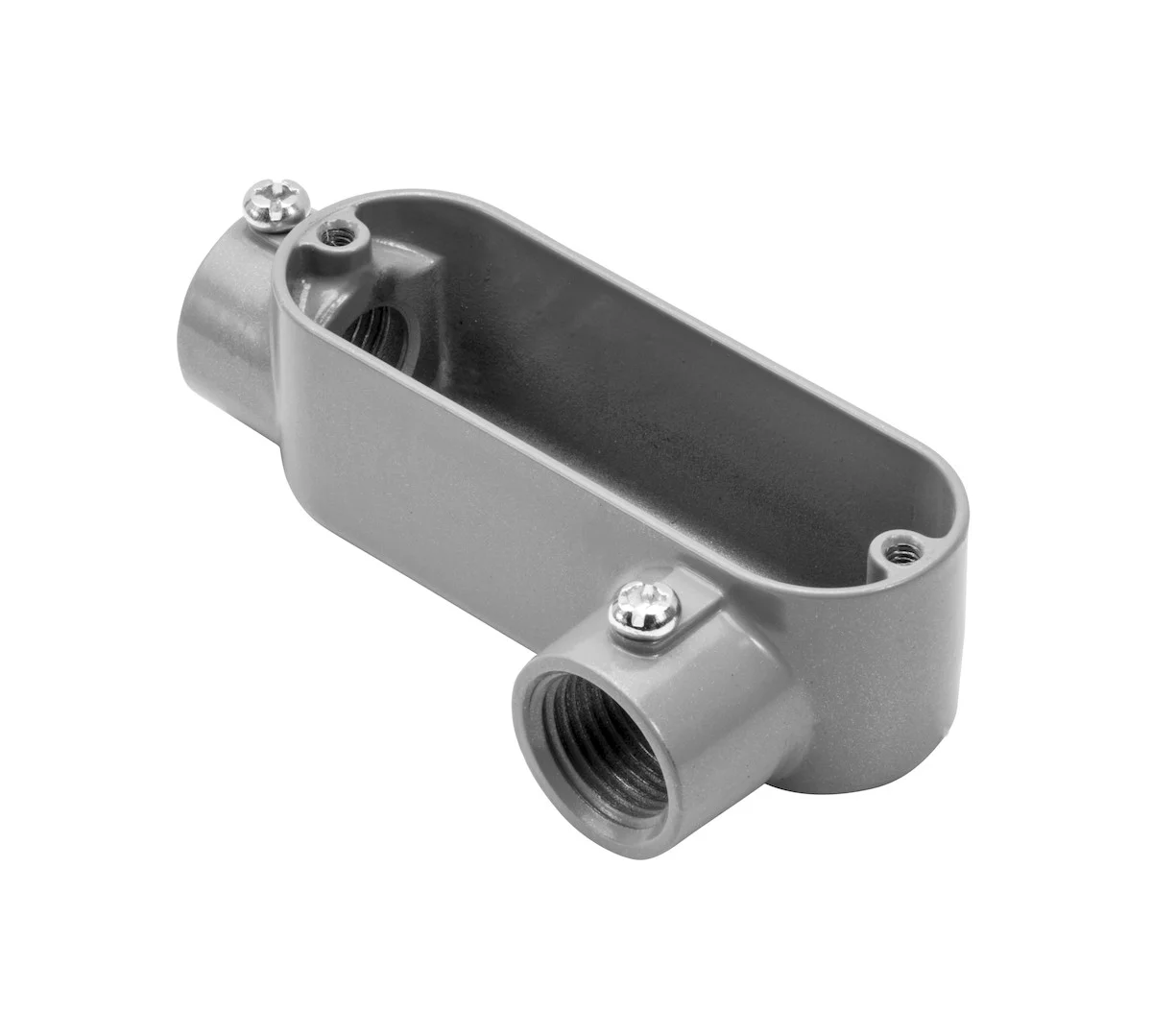

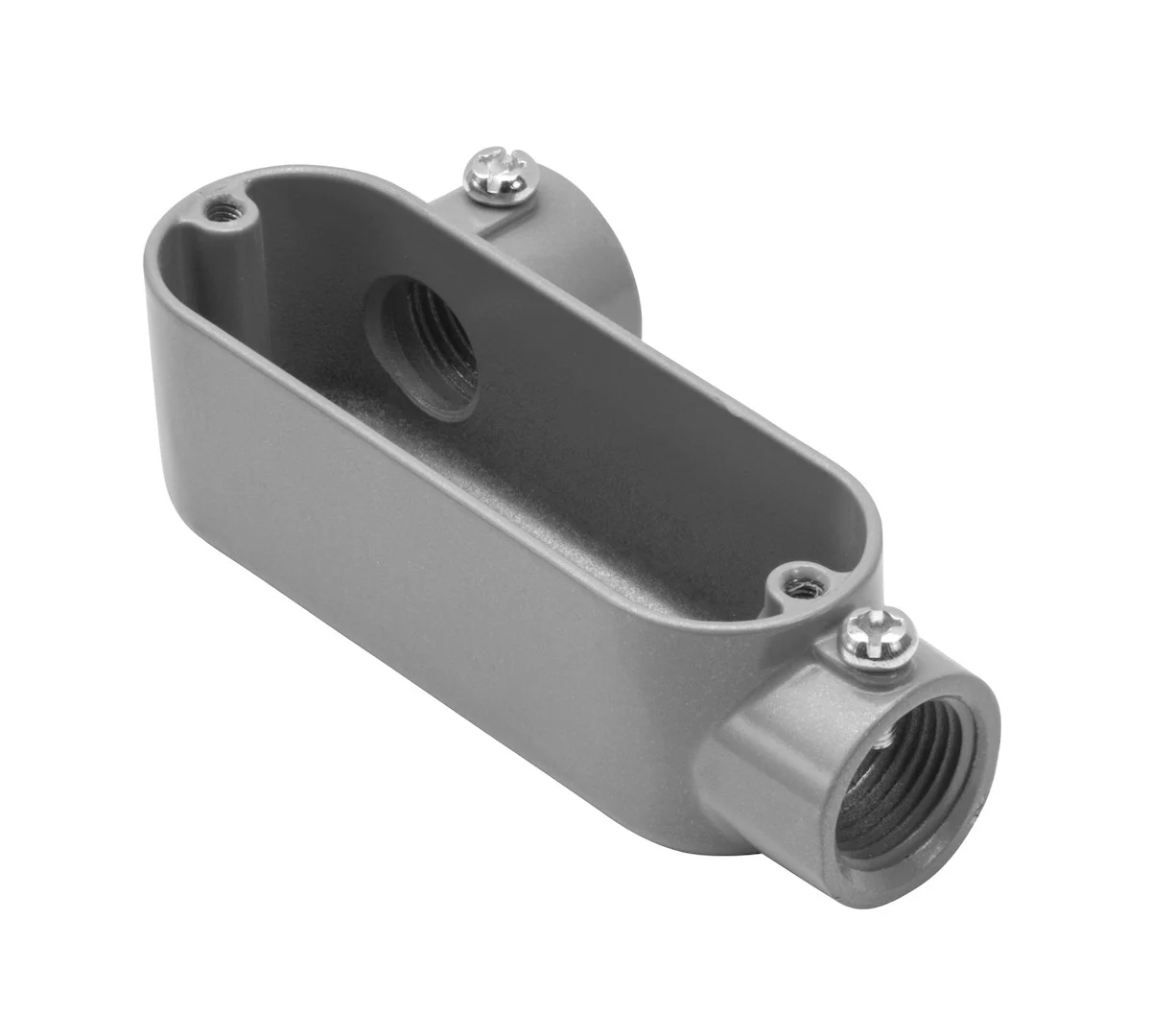

Garvin Industries LL5SS, 1-1/2″ EMT and Rigid Combination Conduit Body, Copper-Free Aluminum, LL Type

The Garvin Industries LL5SS is a 1-1/2″ EMT and rigid combination conduit body, designed for easy access to conductors for pulling, splicing, and maintenance. Built from copper-free aluminum and finished with a durable powder coat, this LL type conduit body is a reliable solution for demanding environments, including wet locations.

Key Features and Benefits

• Combination LL type for versatile conduit runs
• NPT tapered hubs ensure secure, leak-resistant connections
• Suitable for use in concrete and wet locations
• Constructed from corrosion-resistant, copper-free aluminum
• Powder coat finish for enhanced durability
• UL listed and NEMA FB 1 rated for safety and compliance

Specifications

• Size: 1-1/2″
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Maximum wire size: 2 AWG
• Dimensions: 8.22″ (A) x 2.67″ (B) x 3.48″ (C)

Common Uses

Ideal for commercial and industrial electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
