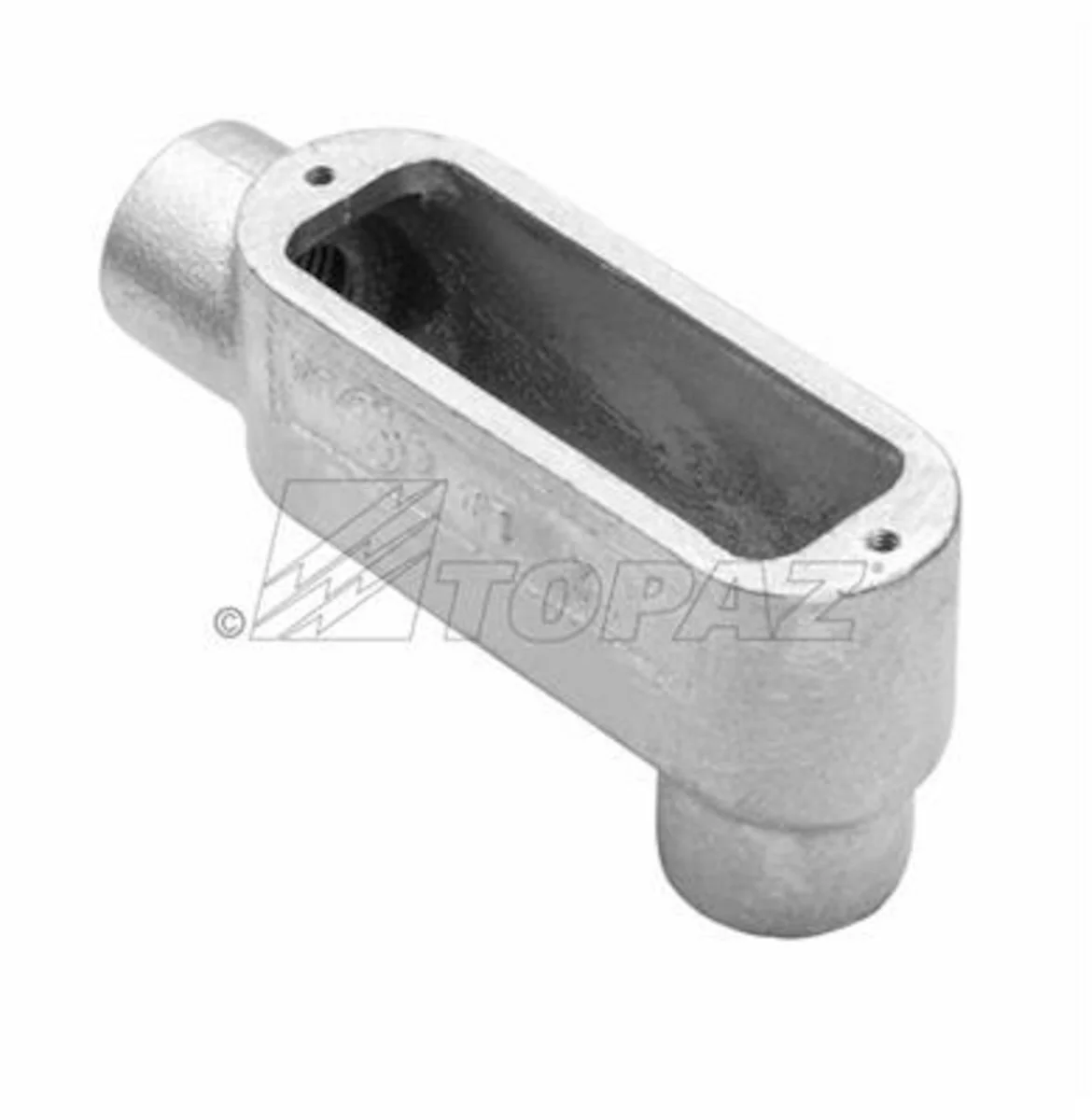

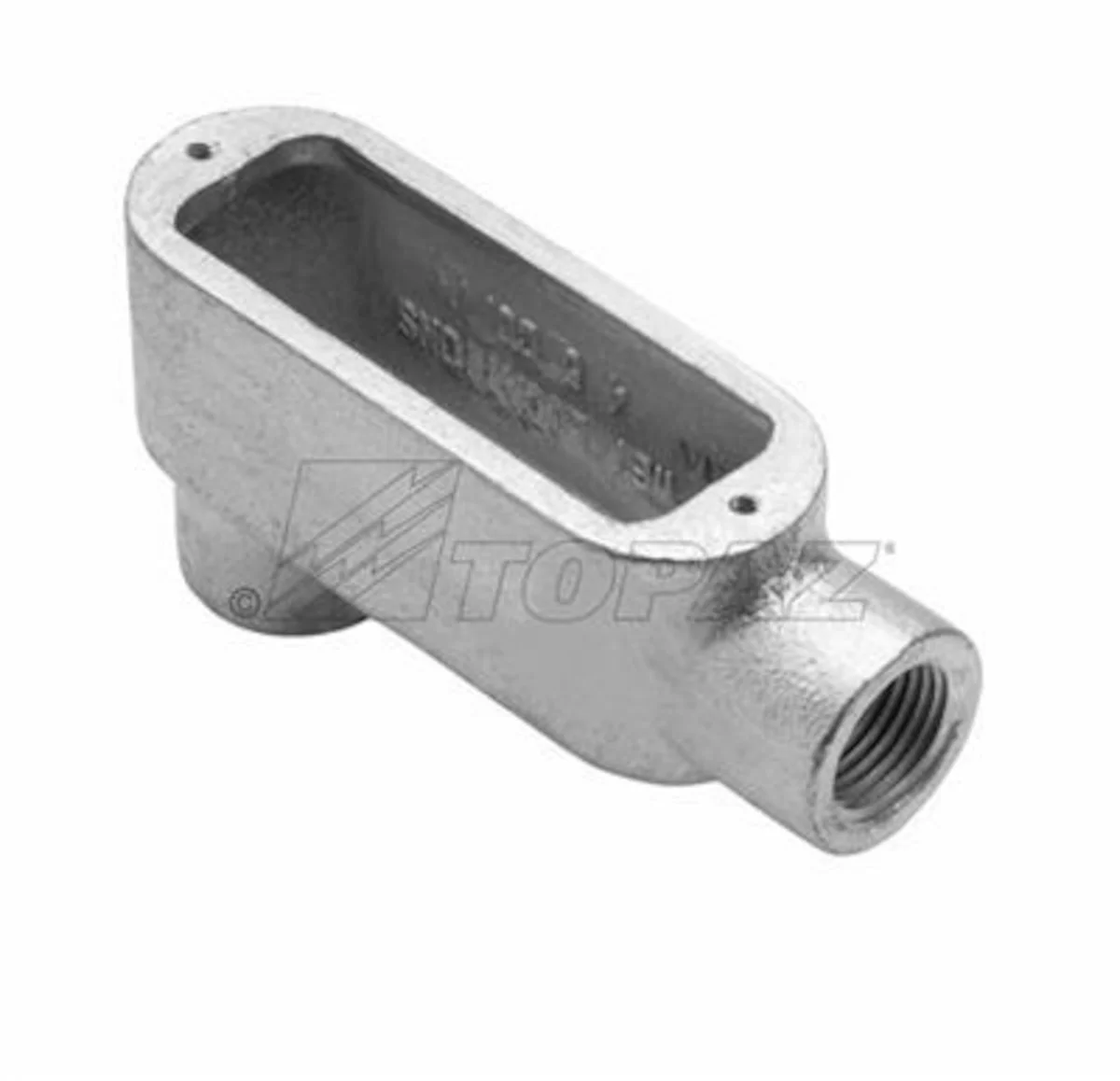

Garvin Industries LB7M, 2-1/2″ Threaded LB Type Conduit Body, Malleable Iron, Zinc Plated, Aluminum Enameled

The Garvin Industries LB7M is a 2-1/2″ threaded LB type conduit body crafted from durable malleable iron, finished with zinc plating and aluminum enamel for superior protection. As part of Southwire’s trusted lineup, this conduit body ensures reliable access to conductors for pulling, splicing, and maintenance in both commercial and industrial settings.

Key Features and Benefits

• Robust malleable iron construction for long-lasting durability
• Zinc plated and aluminum enameled finish resists corrosion
• NPT tapered hubs for secure, leak-resistant connections
• UL listed and meets NEMA FB 1 and Fed. Spec W-C-586D standards
• Suitable for use in concrete installations
• Provides easy access for conductor maintenance and splicing

Specifications

• Size: 2-1/2″
• Material: Malleable iron
• Finish: Zinc plated, aluminum enameled
• Certifications: UL 514A, NEMA FB 1, Fed. Spec W-C-586D
• Max. Number of Conductors: 3
• Max. Wire Size: 300 MCM
• Dimensions: 13.75″ (A) x 4.45″ (B) x 4.38″ (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, and ongoing maintenance, especially in concrete or harsh environments.
