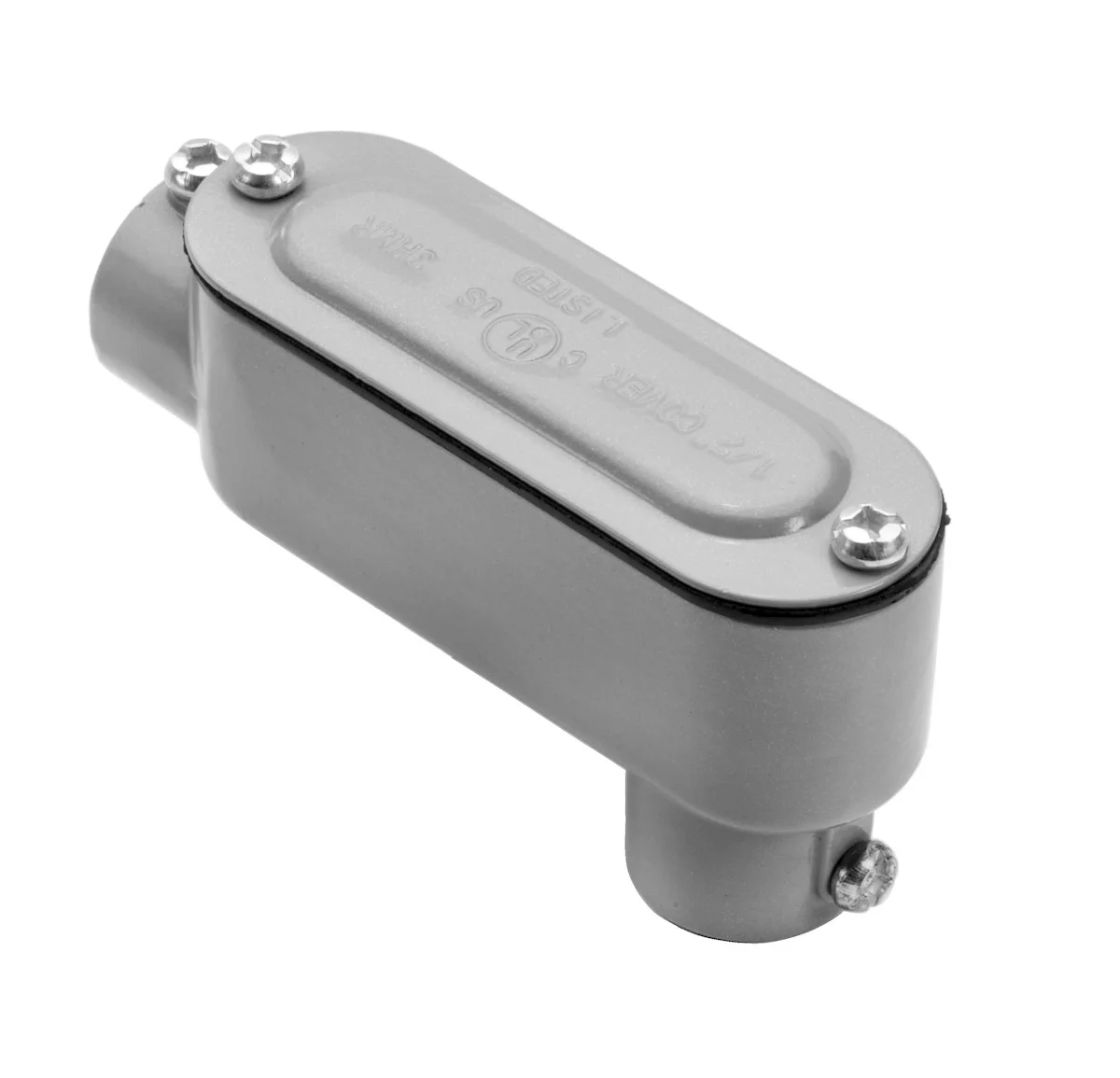

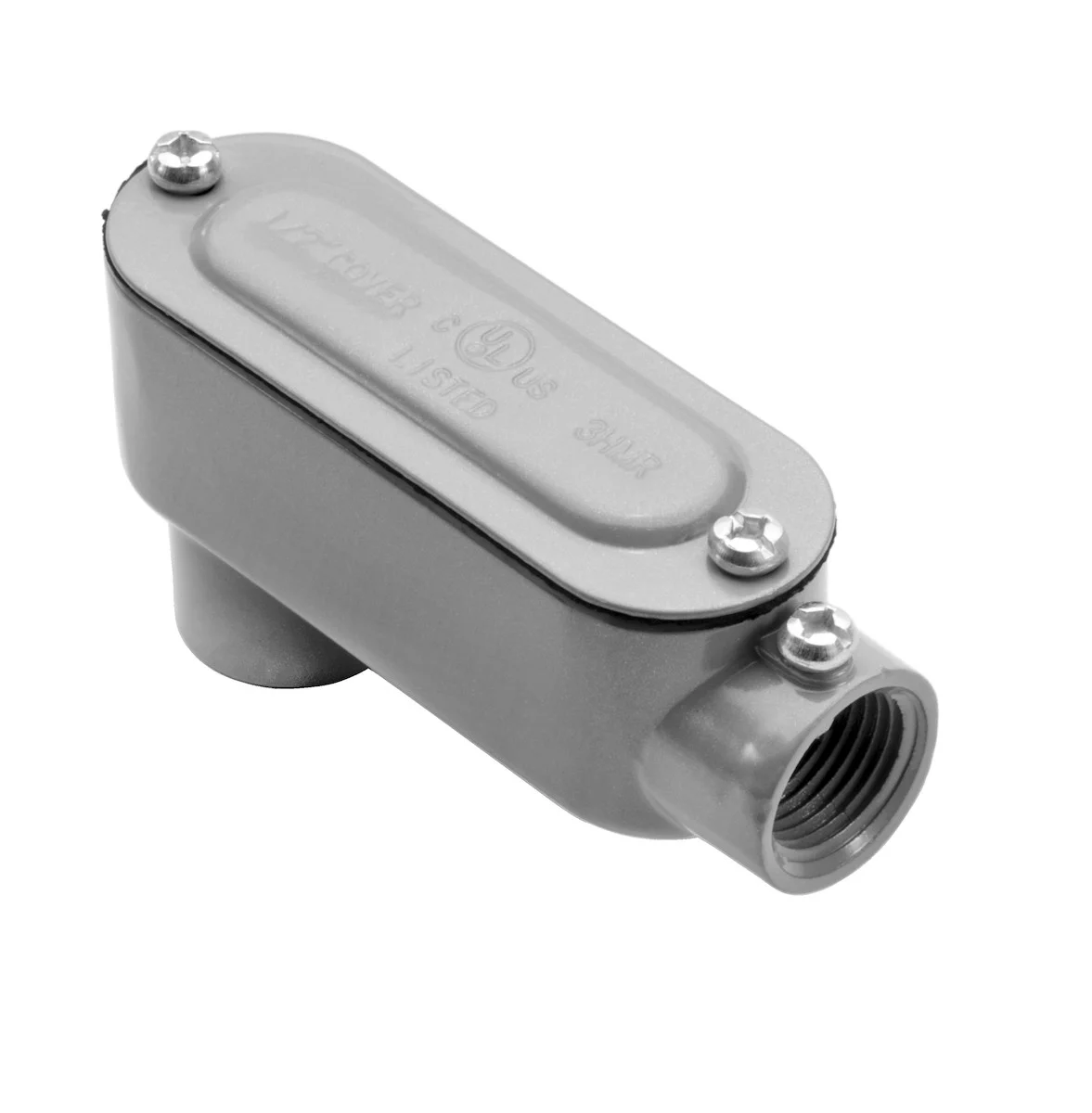

The Garvin Industries LB4SSCG is a 1-1/4″ EMT and rigid combination conduit body, designed for easy access to conductors for pulling, splicing, and maintenance. This LB type body includes a cover and gasket, making it ideal for wet locations and concrete installations.
Key Features and Benefits
- Durable copper-free aluminum die cast construction for corrosion resistance
- Includes stamped steel cover and neoprene rubber gasket for a secure, weather-resistant seal
- NPT tapered hubs ensure reliable connections
- NEMA FB 1 rated for wet locations when used with threaded rigid metal conduit
- UL listed and meets federal specifications for safety and performance
- Powder coat finish for added durability
Specifications
- Size: 1-1/4″
- Max wire size: 3 wires of 2 AWG
- Material: Copper-free aluminum body, stamped steel cover, neoprene rubber gasket
- Finish: Powder coat
- Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
- Dimensions: 8.22″ (A) x 3.50″ (B) x 2.40″ (C)
Common Uses
Perfect for commercial, industrial, and residential conduit installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
