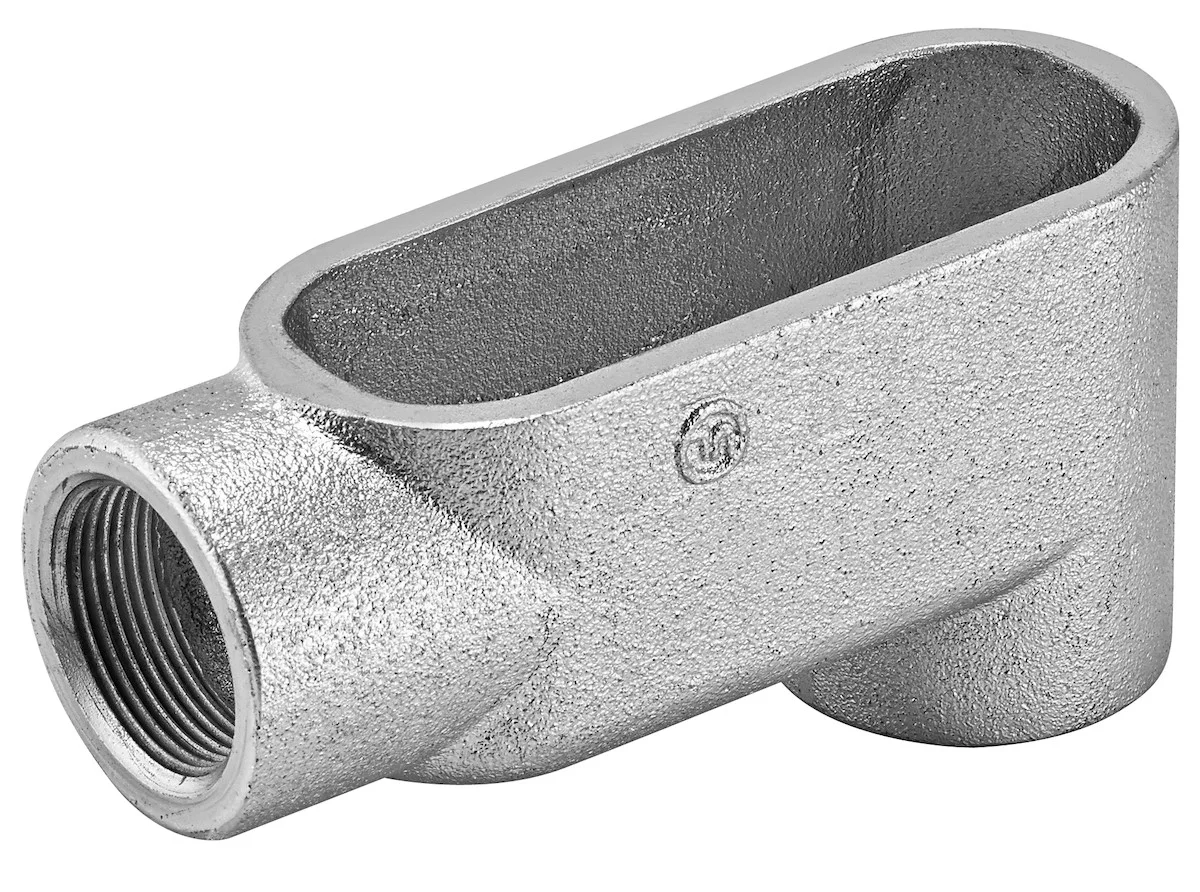

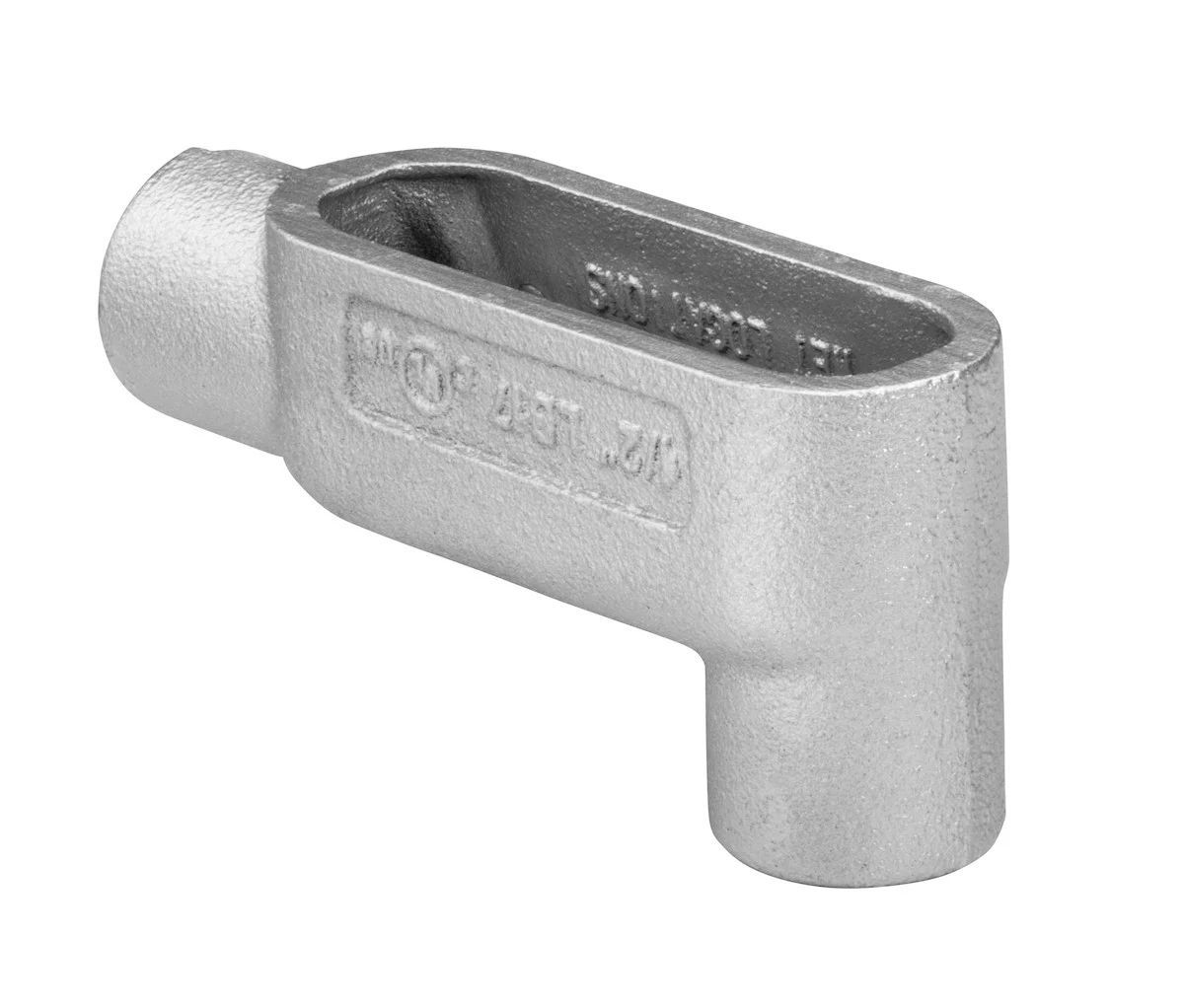

The Garvin Industries LB1G7 is a 1/2″ LB Type Form 7 rigid conduit body, designed for durability and versatility in electrical conduit systems. This conduit body is an essential part of Southwire’s lineup, offering reliable access and flexibility for wiring installations.
Key Features and Benefits
- NPT tapered hubs for secure connections
- Raintight (NEMA 3R) when installed with cover and gasket
- Suitable for Class 1 Div.2 hazardous locations per NEC 2014
- Gray iron construction with zinc plating for corrosion resistance
- Eco-friendly finish, highly resistant to solvents, fuels, and acids
- UL 514A and UL 514D listed for safety and compliance
- Enables 90° conduit bends and easy conductor access
Specifications
- Size: 1/2″
- Material: Gray iron
- Finish: Zinc plated, eco-friendly coating
- Internal Volume: 3.8 in³
- Certifications: UL 514A, UL 514D, NEMA FB 1, Fed. Spec A-A-50563
- Dimensions: 4.50″ (A) x 1.50″ (B) x 2.20″ (C)
Common Uses
Ideal for use as a pull outlet, making 90° bends, splicing or tapping conductors, changing conduit direction, and providing access for maintenance in commercial, industrial, and hazardous locations.
