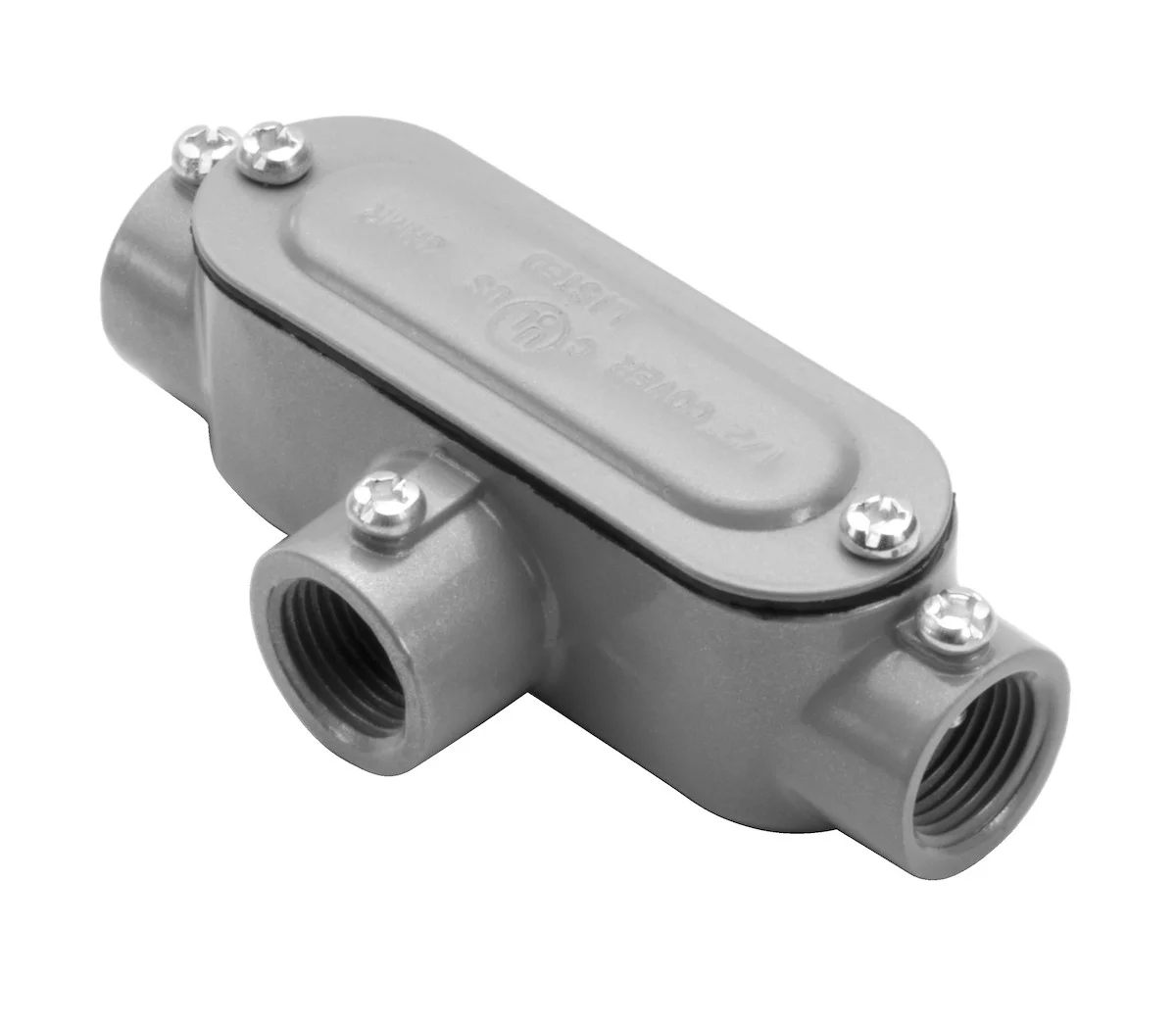

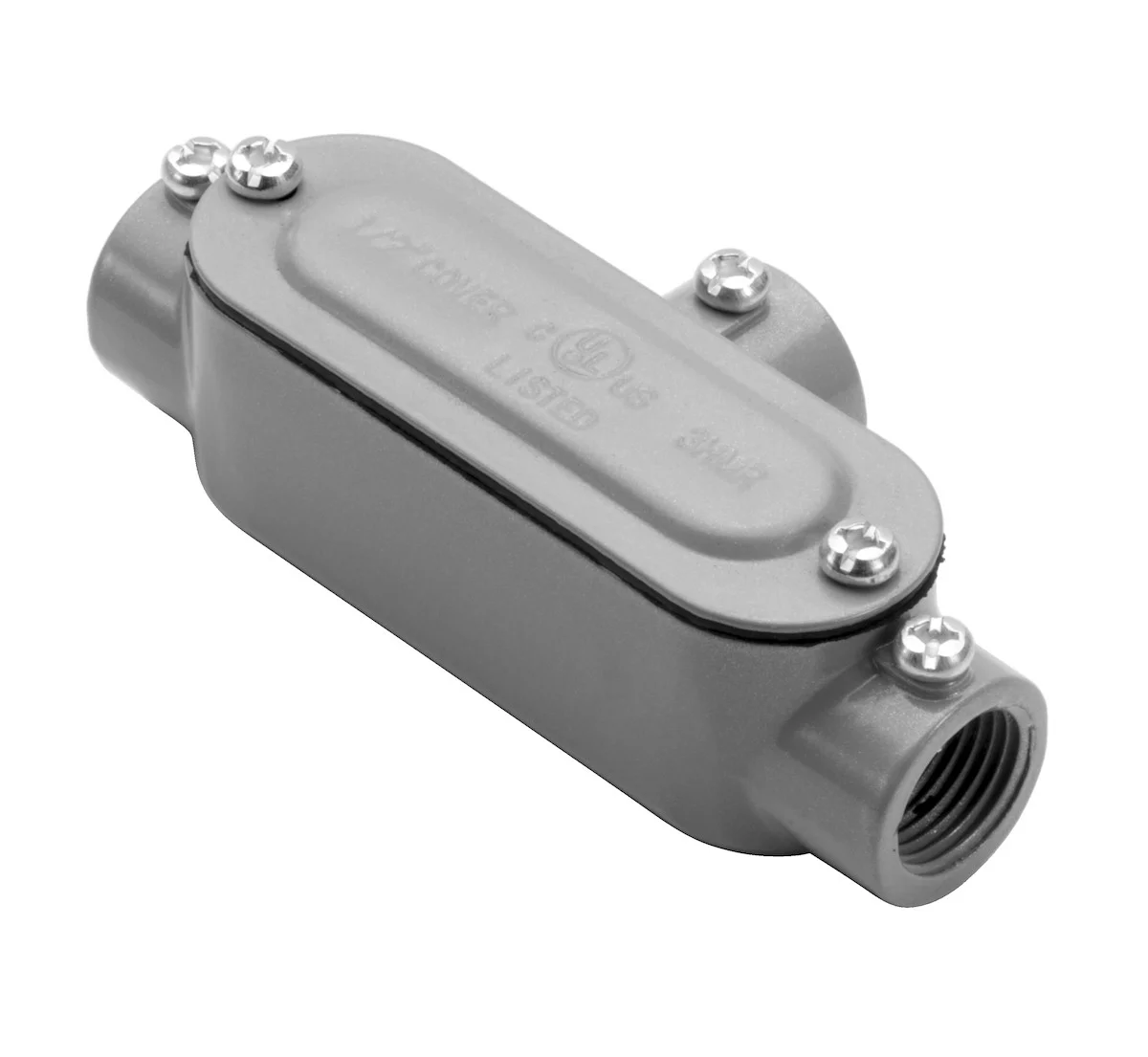

Garvin Industries EMT and Rigid Combination Conduit Body, T Type, 1-1/2″, With Cover and Gasket

The Garvin Industries EMT and Rigid Combination Conduit Body, T Type, 1-1/2″ (T5SSCG) is a versatile solution for electrical installations, providing easy access to conductors for pulling, splicing, and maintenance. This model is a key part of Southwire’s robust line of conduit fittings, designed for durability and reliability in demanding environments.

Key Features and Benefits

• Combination T type body with included cover and gasket for secure, weather-resistant installations
• NPT tapered hubs ensure a tight, reliable fit
• Suitable for use in concrete and rated for wet locations with threaded rigid metal conduit
• Copper-free aluminum die-cast construction for corrosion resistance
• Powder coat finish for enhanced durability
• UL 514A and NEMA FB 1 certified for safety and compliance

Specifications

• Size: 1-1/2″
• Max Wire Size: 3 conductors, up to 2 AWG
• Material: Copper-free aluminum body, stamped steel cover, neoprene rubber gasket
• Finish: Powder coat
• Dimensions: 9.25″ (A) x 2.67″ (B) x 3.50″ (C)

Common Uses

Ideal for commercial, industrial, and residential conduit installations, especially where access to conductors is needed for pulling, splicing, or maintenance in wet or concrete environments.
