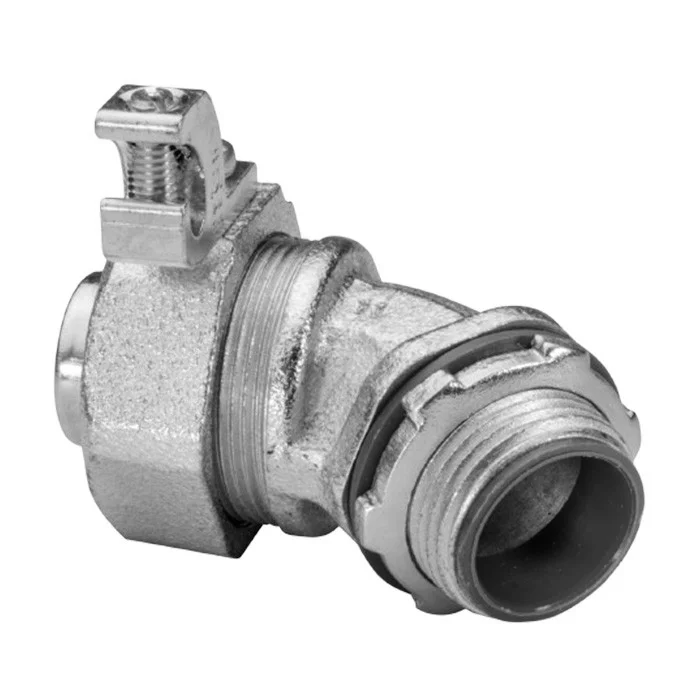

Garvin Industries 231CSGR, 1/2″ 45° Liquidtight Connector with 4-14 Copper Lay-In Grounding Lug, Insulated Throat

The Garvin Industries 231CSGR is a 1/2″ 45° liquidtight connector with a 4-14 copper lay-in grounding lug and an insulated throat, designed for secure and reliable conduit connections. This fitting is engineered for use in demanding environments where liquidtight, raintight, and oiltight performance is required, making it a trusted choice for both commercial and industrial applications.

Key Features and Benefits

• Provides liquidtight, raintight, and oiltight protection for conduit connections
• Features a durable aluminum or copper lay-in grounding lug for easy bonding
• Insulated throat helps prevent abrasion damage to conductors
• Constructed from malleable iron with a zinc-plated finish for long-lasting durability
• UL listed and compliant with NEC requirements for hazardous locations

Specifications

• Size: 1/2″
• Angle: 45°
• Grounding Lug: 4-14 copper lay-in
• Material: Malleable iron, steel locknut, aluminum or copper lug
• Finish: Zinc plated
• Certifications: UL 467, UL 486A, Fed. Spec: W-S-610E, NEMA: GR 1-2017

Common Uses

Ideal for connecting liquidtight flexible metal conduit and terminating external bonding conductors in commercial, industrial, and hazardous locations.
