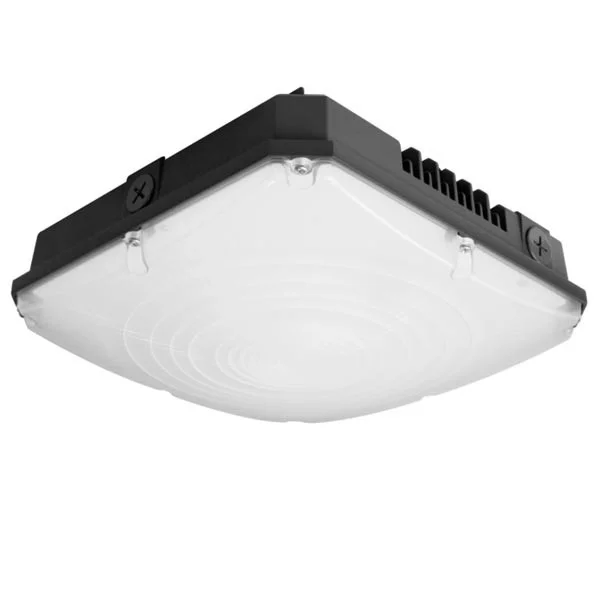

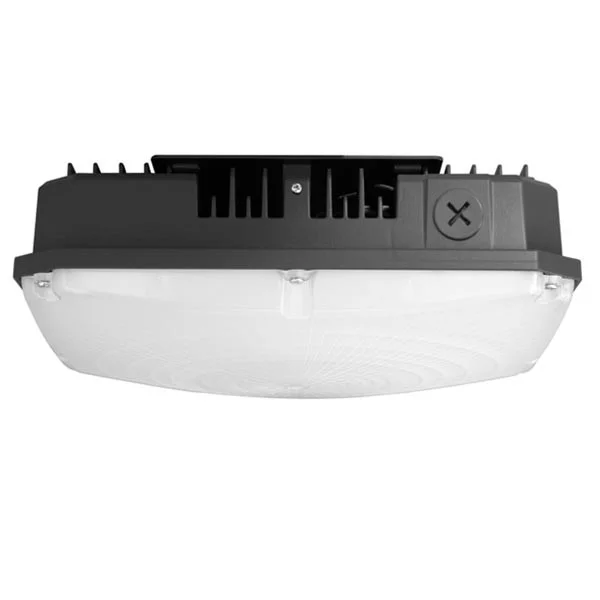

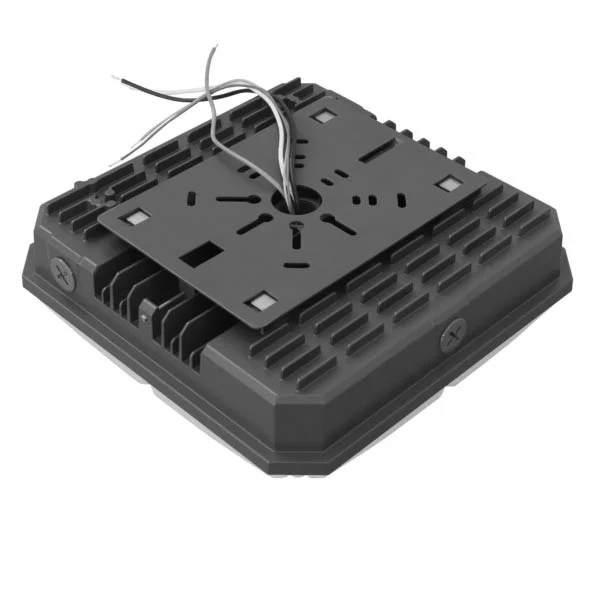

The EX-LITE CPS Slim Canopy Light is a low-profile architectural LED fixture engineered for parking garage and canopy applications. As part of the CPS series, it combines efficient output, wide light distribution, and durable construction for dependable commercial exterior performance.
Key Features and Benefits
- Slim architectural housing delivers a clean, modern canopy appearance
- Patented Fresnel lens design provides broad, glare-controlled illumination for low mounting heights
- IP65-rated construction supports reliable operation in wet and damp outdoor environments
- 0-10V dimming capability enables energy-saving lighting control integration
- UL Listed, DLC Standard, FCC, and RoHS compliance supports code-ready commercial projects
- Backed by a 5-year fixture warranty for long-term confidence
Specifications
- Lumen Output: 5200
- Wattage: 40W
- Voltage: 120-277V
- Color Temperature: 4000K|5000K
- CRI: 80
- Efficacy: 130 lm/W
- Distribution: Wide beam (NEMA 7×7)
- Dimensions: 10″ x 10″ x 3.4″
Common Uses
Ideal for parking garages, gas station canopies, covered walkways, loading zones, and other commercial exterior ceiling-mounted applications requiring uniform, wide-area light coverage.
