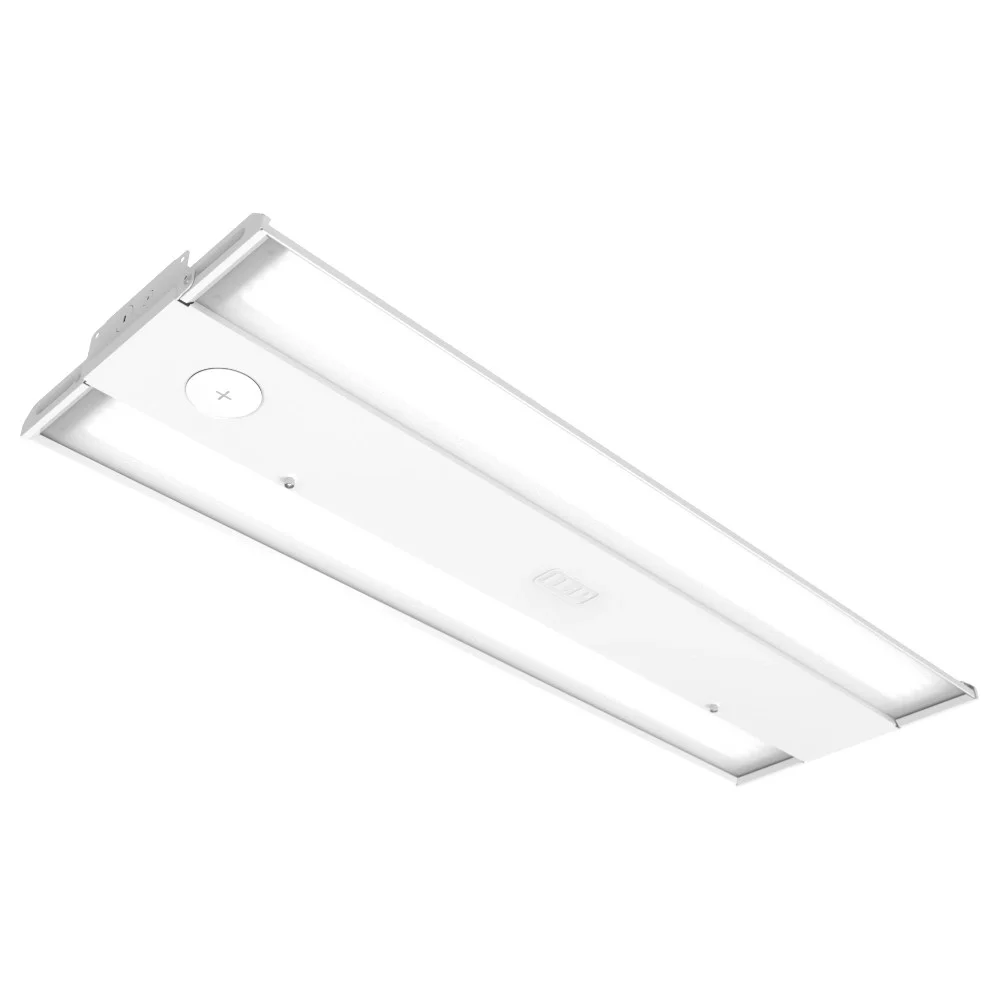

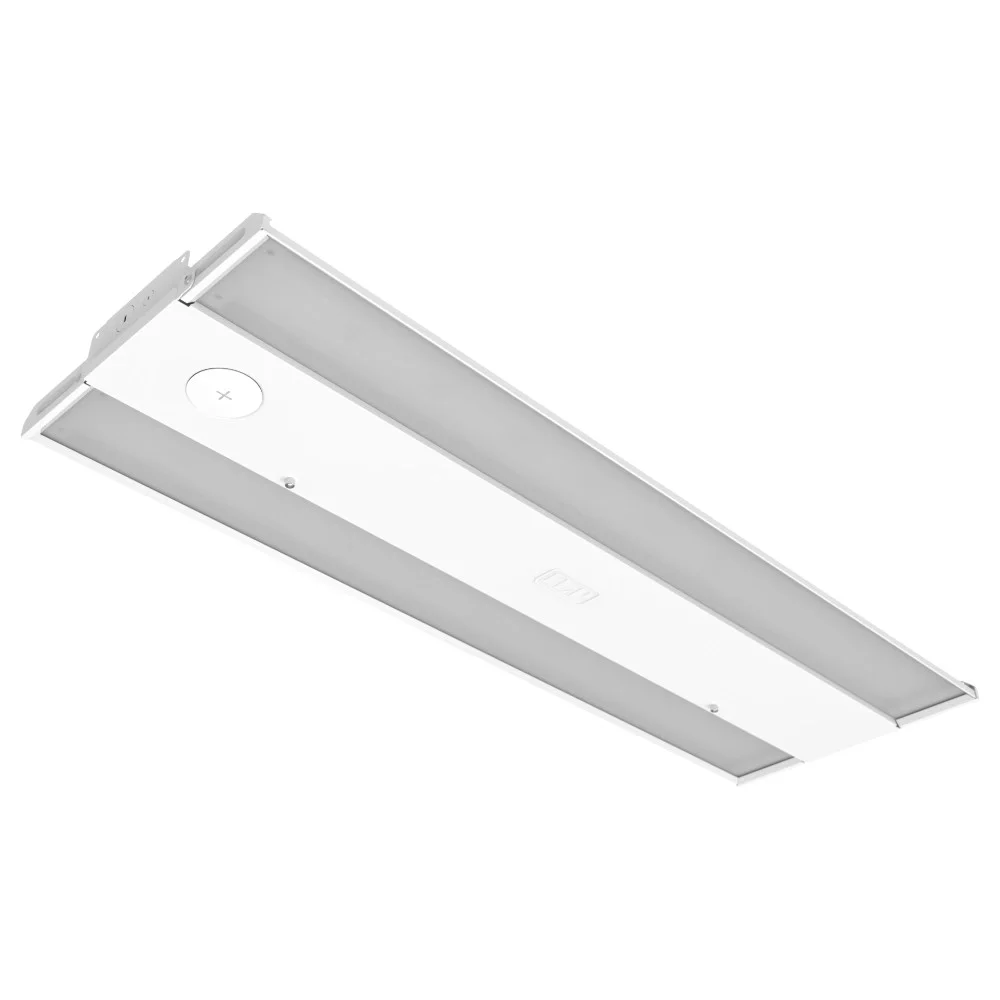

Compact and lightweight highbay fixture with selectable lumen outputs up to 48,000, 5000K color temperature, and impact-resistant frosted acrylic lens.
Key Features and Benefits
- Compact, lightweight fixture with rugged steel construction
- High efficiencies up to 167 LPW
- Lumen selectable outputs up to 48,000 to accommodate various ceiling heights and application requirements
- Ambient temperature settings from -40°F up to 122°F with 6kV ANSI Surge Protection
- 1-for-1 replacement of linear fluorescent & HID fixtures
- Field installable/swappable wide and narrow distributions
- Plug N Play Sensor Ready with 12V Auxiliary DIM to Off Drivers
Specifications
- Rugged steel housing with IP5X rated lens apertures
- Non Isolated high-performance drivers with over-voltage, under-voltage, short circuit, and over temperature protection
- L70 >100,000 hrs. at 25°C ambient temperature
- Power Factor > 0.90, THD<20%
- 120-277 Vac 50/60Hz or 277-480 Vac 0-10V dim to off drivers
- 6kV/3kA Standard surge protection
- Field swappable lenses: frosted acrylic, clear polycarbonate, and diffuse narrow distribution
- 80 CRI standard
- Dedicated 4000K or 5000K CCT options
- Operating Ambient Temperature: -40°C to +50°C
- ETL Listed for damp locations
- DLC Premium qualified product
Common Uses
Warehouse, gymnasiums, manufacturing plants, distribution centers
