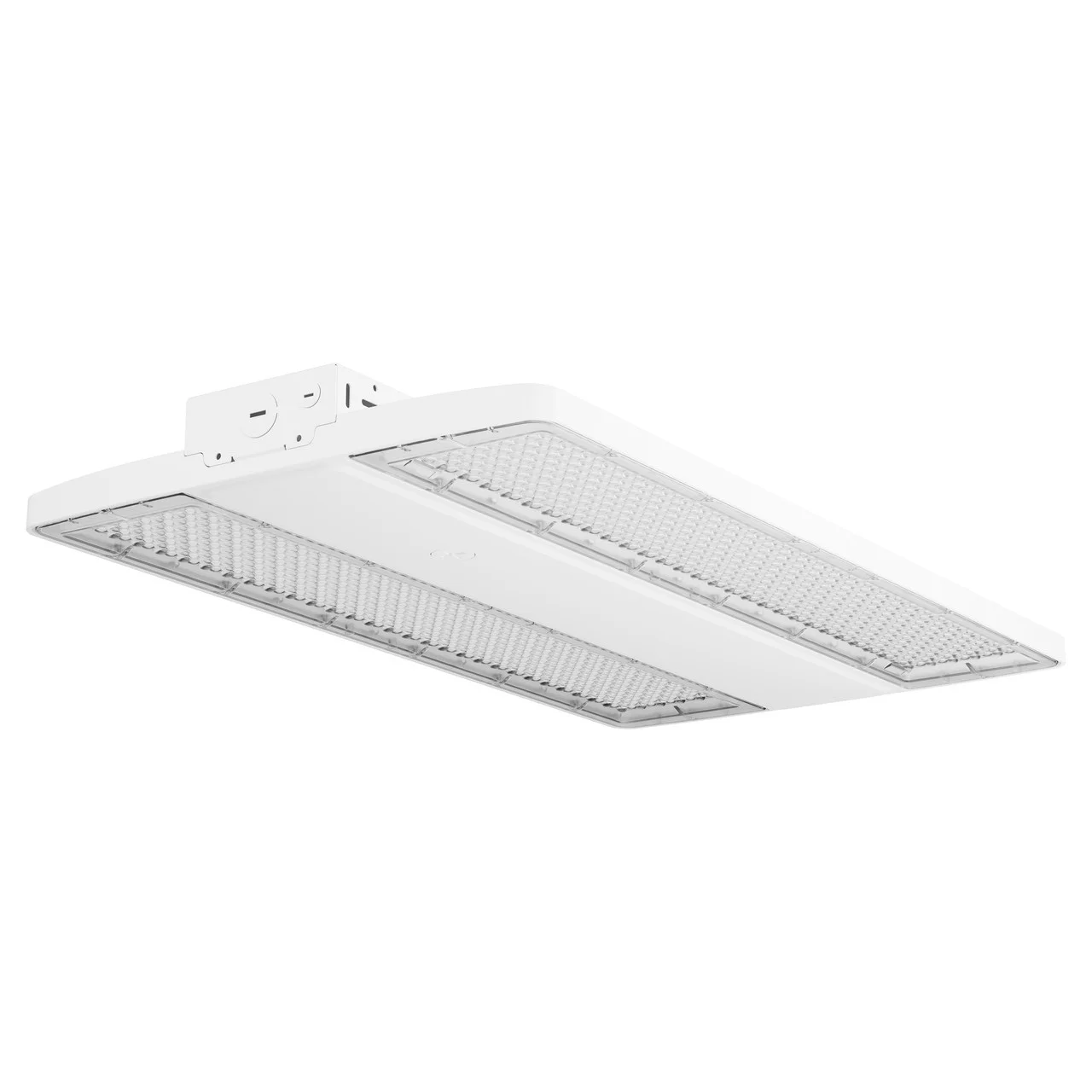

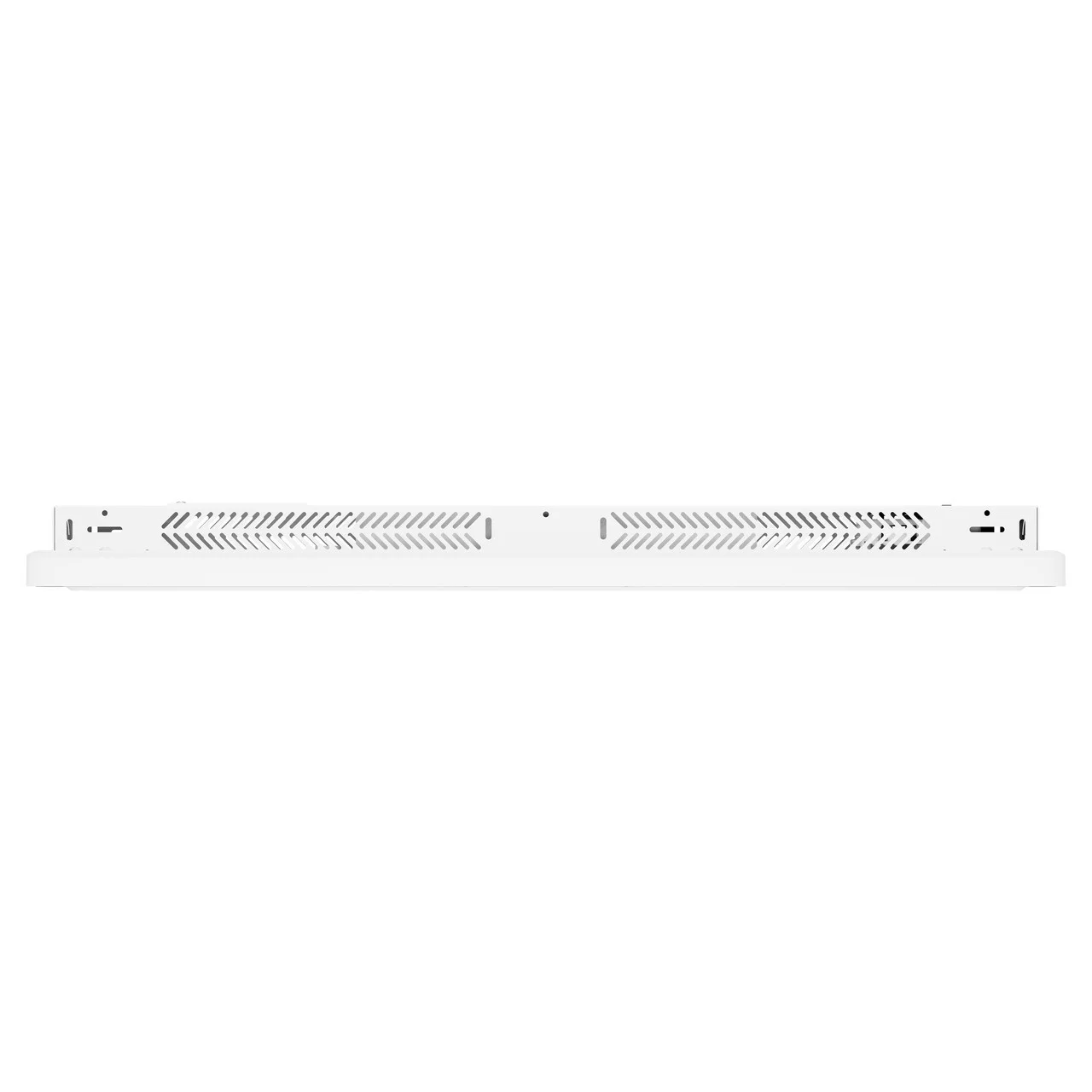

The ESL Vision Linear High Bay Series delivers powerful, configurable illumination for high-ceiling commercial and industrial facilities. This 5th-generation ESL-LHB-255320W-54057-HV model combines multi-watt, multi-CCT, and multi-beam flexibility in one rugged fixture to simplify stocking and project design.
Key Features and Benefits
- Field-selectable output with three wattage settings (255W/295W/320W) for precise light levels and energy control
- Selectable CCT options (4000K/5000K/5700K) to match visual comfort and task requirements
- Three optical distributions (90×90°, 45×100°, 65×95°) support open areas and aisle-focused layouts
- 0-10V dim-to-off capability enables advanced lighting controls and additional energy savings
- DLC Premium listed with UL certification support for rebate-focused and code-conscious projects
- 5-year warranty and IK10 impact resistance for long-term reliability in demanding environments
Specifications
- Lumen Output: up to 51,100
- Efficacy: up to 170 lm/W
- Input Voltage: 277-480 VAC
- Input Frequency: 50/60 Hz
- CRI: >80
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Rated Life (L70): 200,000 hours (TM-21 calculated)
- Dimensions: 22.05″ x 12.40″ x 1.89″
- Weight: 8.82 lbs
- Surge Protection: 6kV
Common Uses
Ideal for warehouses, distribution centers, manufacturing plants, gymnasiums, and other high-mount applications requiring high output, optical flexibility, and dependable performance in damp locations.
