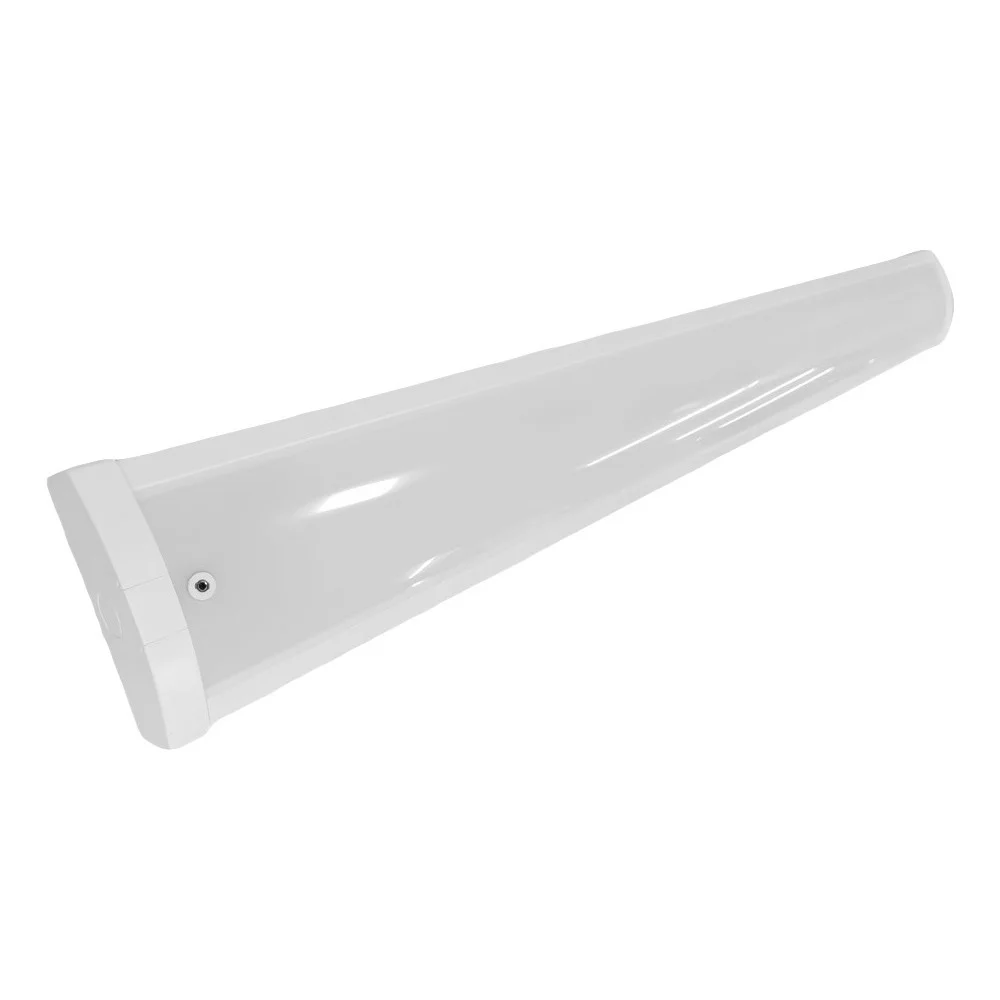

The ESL Vision LED 810 Wrap Series is a versatile contractor-grade linear wrap fixture designed for efficient general illumination in commercial and institutional spaces. This configurable model combines multi-watt and multi-CCT flexibility in one SKU, helping simplify stocking and on-site setup while delivering dependable performance.
Key Features and Benefits
- Field-selectable output with three wattage settings (20W/30W/40W) for adaptable light levels
- 5-CCT selectable tuning from warm-neutral to daylight tones (3500K to 6500K)
- Low-profile wrap design supports clean ceiling integration in utility and occupied spaces
- 0-10V dimming compatibility enables energy savings and lighting control integration
- ETL Listed construction for trusted safety compliance
- Backed by a 5-year manufacturer warranty for long-term confidence
Specifications
- Lumen Output: up to 5200
- Efficacy: up to 130 lm/W
- Input Voltage: 120-277V
- Input Frequency: 50/60
- CRI: >80
- Power Factor: >0.98
- Rated Life (L70): 75000 hours
- Operating Temperature: -20b0C to 45b0C
- Dimensions: 48″ x 11.8″ x 6.3″
- Weight: 22.05 lbs
Common Uses
Ideal for corridors, stairwells, utility rooms, storage areas, schools, and commercial back-of-house environments where selectable output and straightforward installation are important.
