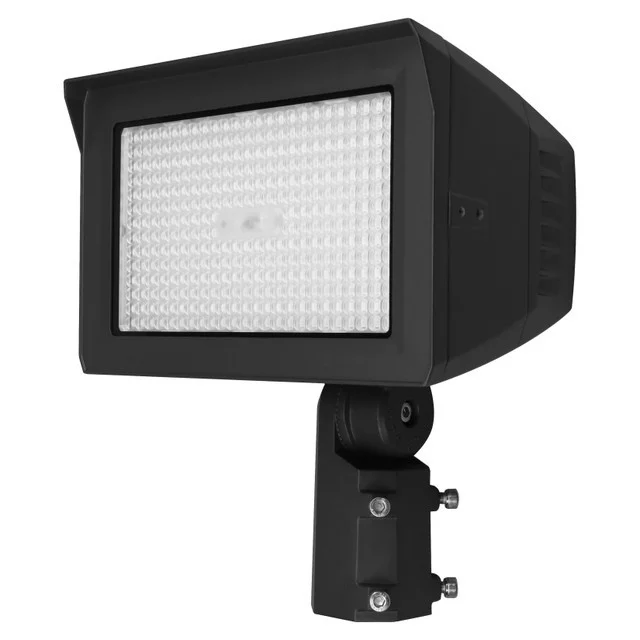

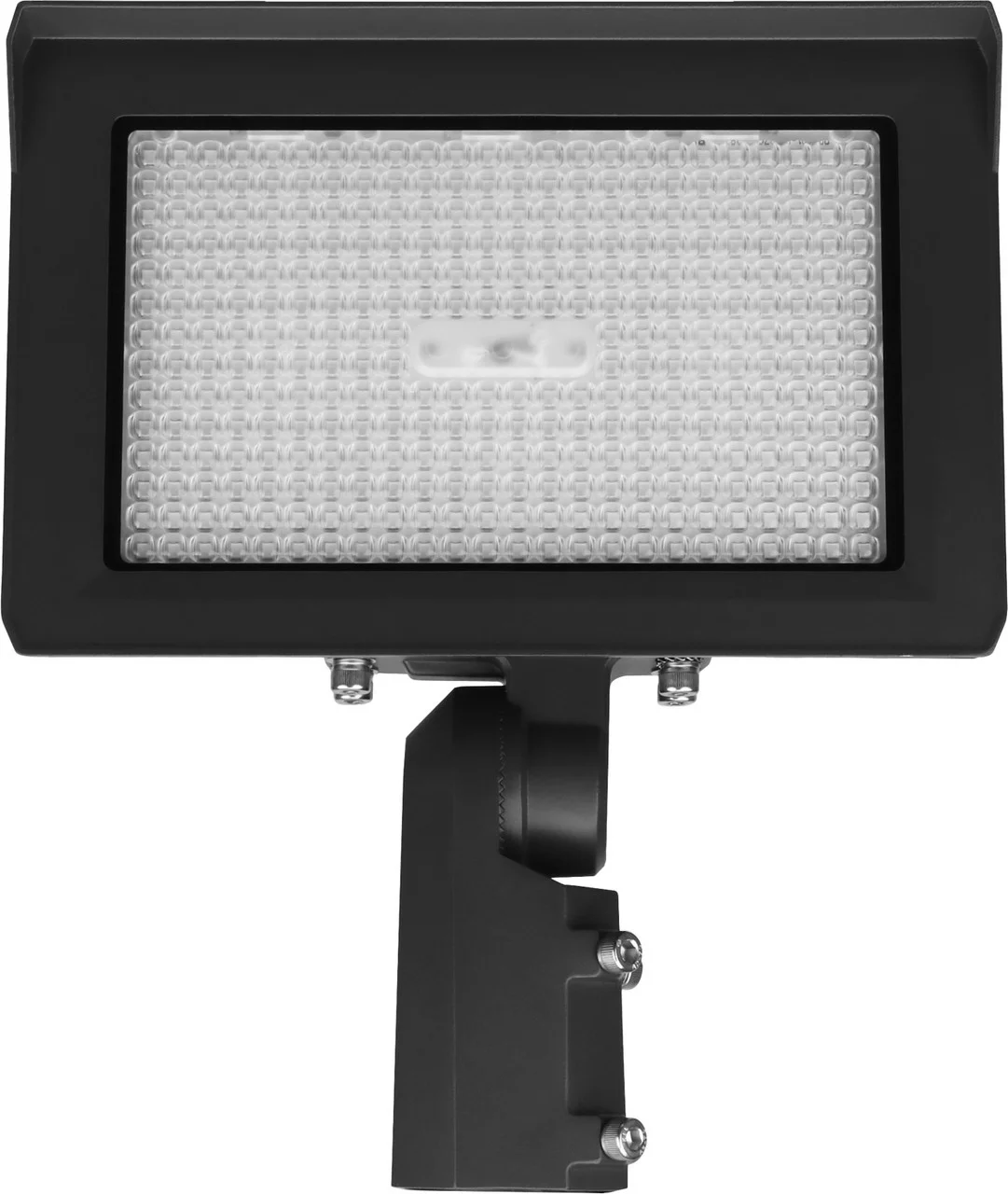

The ESL Vision Flood Light Series ESL-FLD-75150W-23050-BZ is a versatile, high-output exterior luminaire designed for adaptable site lighting. As part of ESL Vision’s 2nd generation selectable flood lineup, it combines field-adjustable wattage, CCT, and beam spread to simplify stocking and installation across varied projects.
Key Features and Benefits
- 4-level selectable power lets you tune light output and energy use on site
- 3-CCT selectable design supports warmer or cooler lighting needs from one fixture
- Selectable 55°/75°/90° optics provide flexible aiming for accent, area, or broad flood coverage
- Integrated on/off photocell enables automatic dusk-to-dawn operation
- Rugged die-cast housing built for demanding outdoor environments
- Includes slip fitter and yoke mount options in the box for installation flexibility
- DLC Premium listed and UL certified for trusted performance and compliance
- Backed by a 5-year manufacturer warranty for long-term confidence
Specifications
- Lumen Output: up to 22500
- Wattage: 75W|100W|125W|150W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- Beam Angle: 55°|75°|90°
- CRI: >80
- Efficacy: up to 150 lm/W
- Frequency: 50/60 Hz
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Rated Life (L70): 165000 hours
- Dimensions: 11.2″ x 7.3″ x 7.0″
- Weight: 9.92 lbs
- Default Settings: 150W, 5000K, 90° beam, photocell on
Common Uses
Ideal for building facades, parking areas, loading zones, security perimeters, signage illumination, and general commercial or industrial outdoor floodlighting where adjustable output and distribution are required.
