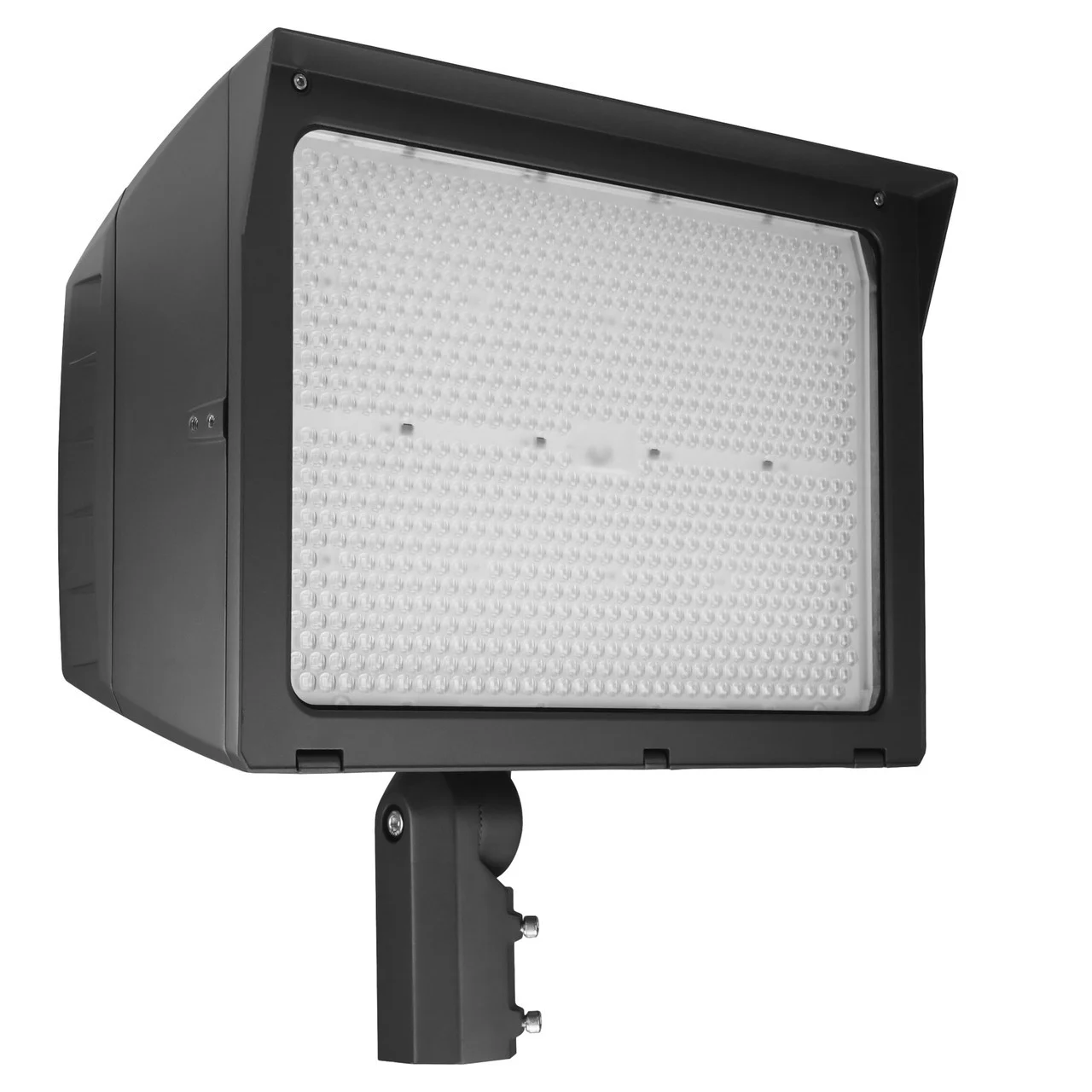

The ESL Vision Flood Light Series ESL-FLD-380500W-23050-BZ is a powerful, field-configurable outdoor luminaire built for demanding area and facade illumination. As part of ESL Vision’s 2nd generation flood lineup, it combines high lumen output, selectable performance settings, and rugged construction for versatile project deployment.
Key Features and Benefits
- Field-selectable power lets you tune output with 380W, 420W, 450W, or 500W settings.
- Selectable CCT and beam spread (3000K/4000K/5000K and 55°/75°/90°) simplify stocking and on-site aiming.
- Integrated twist-lock on/off photocell supports automatic dusk-to-dawn operation.
- Durable die-cast housing with IP65 protection helps withstand harsh outdoor environments.
- 0-10V dim-to-off control supports energy savings and lighting control integration.
- DLC Premium listed and UL certified design backed by a 5-year warranty.
Specifications
- Lumen Output: up to 75000
- Efficacy: up to 150 lm/W
- Input Voltage: 120-277V AC
- Frequency: 50/60 Hz
- CRI: >80
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Rated Life (L70, TM-21): 165000 hours
- Dimensions: 19.5″ x 14.19″ x 9.69″
- Weight: 29.32 lbs
- Default Setting: 500W, 5000K, 90° beam angle

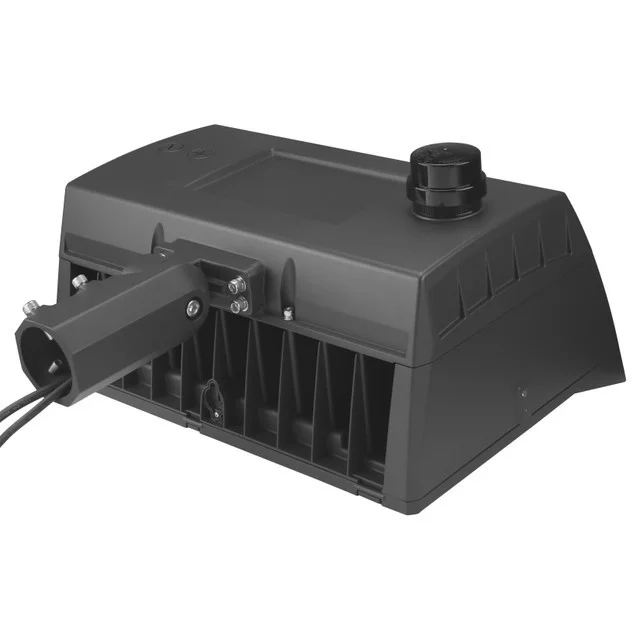

- Included Mounts: Slip fitter and yoke mount
Common Uses
Ideal for building exteriors, parking lots, loading docks, sports and recreation areas, security perimeters, and large commercial or industrial outdoor spaces requiring high-output, adjustable flood illumination.
