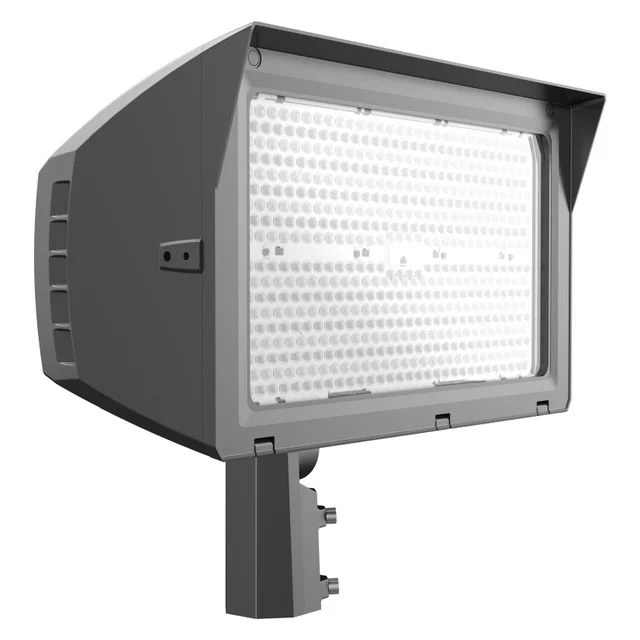

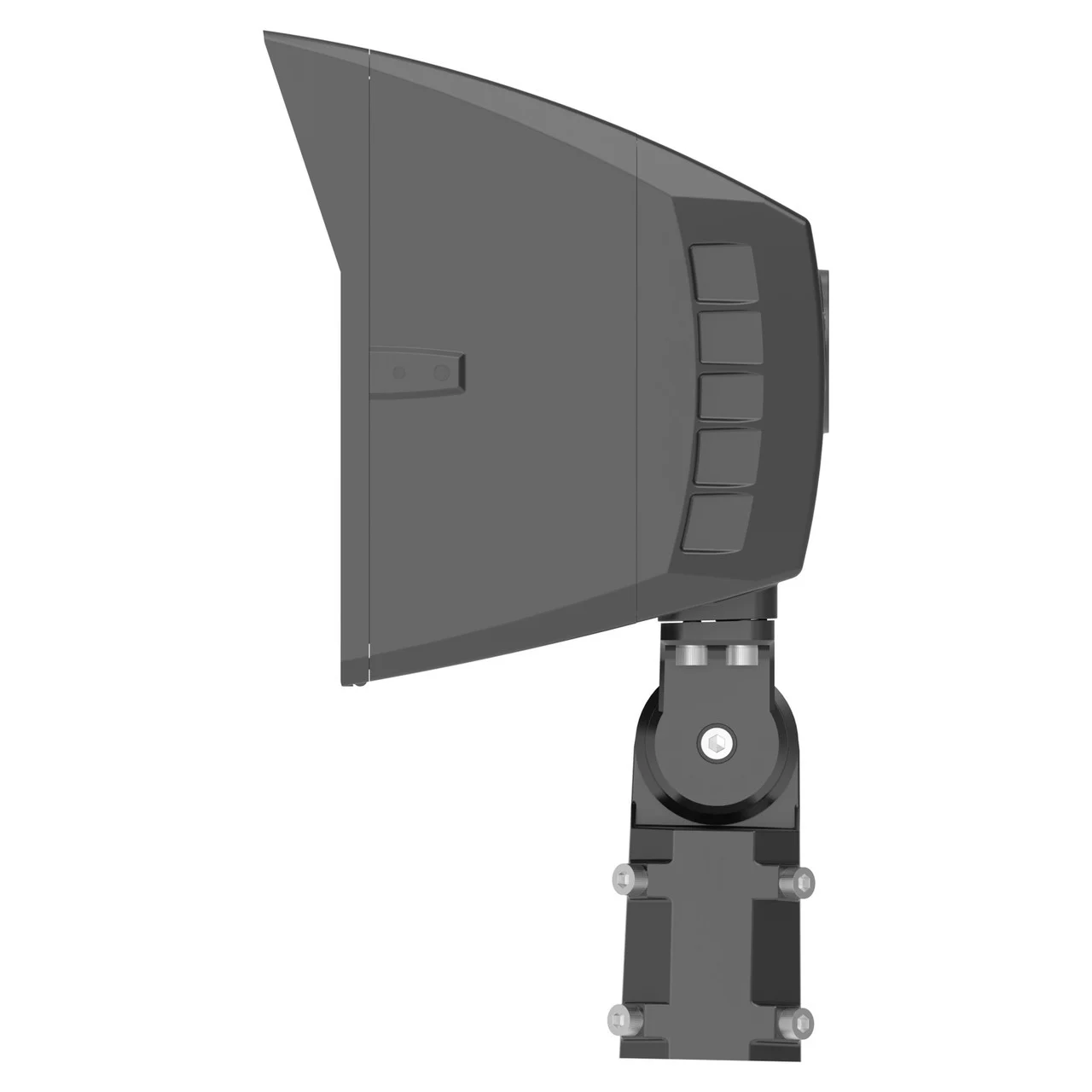

The ESL Vision Flood Light Series ESL-FLD-200320W-23050-BZ is a high-output, field-selectable exterior luminaire built for demanding area and facade lighting. As part of ESL Vision’s 2nd generation flood lineup, it combines flexible wattage, CCT, and beam control in one robust fixture to simplify project planning and installation.
Key Features and Benefits
- 4-in-1 selectable power settings (200W/240W/280W/320W) for on-site lumen tuning
- 3 selectable color temperatures (3000K/4000K/5000K) to match application needs
- Adjustable beam spreads (55°/75°/90°) for targeted or broader light distribution
- Twist-lock on/off photocell included for automatic dusk-to-dawn operation
- Durable die-cast housing with IP65 protection for outdoor reliability
- 0-10V dim-to-off capability for energy savings and control integration
- DLC Premium listed model with UL certification support
- Backed by a 5-year manufacturer warranty
Specifications
- Lumen Output: up to 48000
- Efficacy: up to 150 lm/W
- Input Voltage: 120-277V
- Input Frequency: 50/60 Hz
- CRI: >80
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Rated Life (L70): 165000 hours (TM-21 calculated)
- Dimensions: 16.63″ x 10.31″ x 8.50″
- Weight: 13.01 lbs
- Default Factory Setting: 320W, 5000K, 90° beam
Common Uses
Ideal for building exteriors, parking lots, loading zones, signage, security perimeters, and general area lighting where high output and field adjustability are required.
