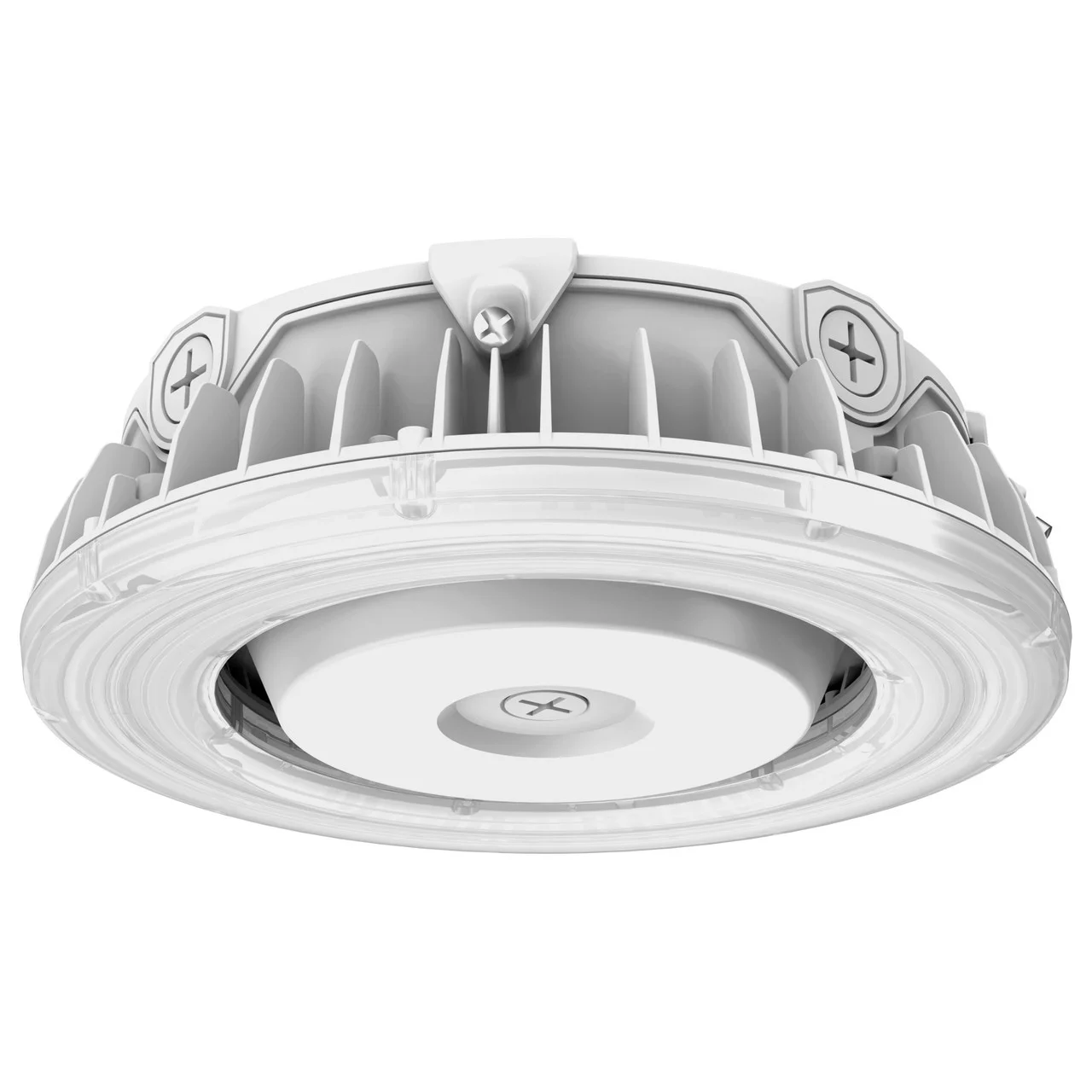

ESL Round Canopy, Round, 60W|80W|100W, 3000K|4000K|5000K, White

The ESL Round Canopy Series is a versatile surface-mount lighting solution designed for commercial exterior and semi-exterior applications. This 1st generation round canopy model combines field-selectable wattage and CCT in one fixture, helping contractors and facility teams simplify inventory while matching site requirements. Built for dependable performance, it delivers high output, strong efficacy, and long service life for demanding canopy environments.

Key Features and Benefits

• Multi-watt selectable operation (60W/80W/100W) for flexible light levels from one SKU
• 3-CCT selectable output (3000K/4000K/5000K) to tune visual comfort and site appearance
• 0-10V dimming to off for energy savings and lighting control integration
• High-performance output up to 16,500 lumens with efficacy up to 165 lm/W
• Long 175,000-hour L70 life reduces maintenance cycles in hard-to-service locations
• DLC Premium listed and UL certified with 5-year warranty support

Specifications

• Lumen Output: up to 16,500
• Input Voltage: 120-277V
• Frequency: 50/60Hz
• CRI: >80
• Beam Angle: 150°
• Power Factor: >0.9
• THD: <20%
• Surge Protection: 6kV
• Operating Temperature: -22°F to 113°F (-30°C to 45°C)
• Dimensions: Ø11.02″ x 3.11″
• Weight: 4.93 lbs
• Default Setting: 100W, 4000K

Common Uses

Ideal for gas station canopies, parking garages, covered walkways, loading zones, and other commercial soffit or overhang applications where durable, efficient, and selectable area lighting is required.
