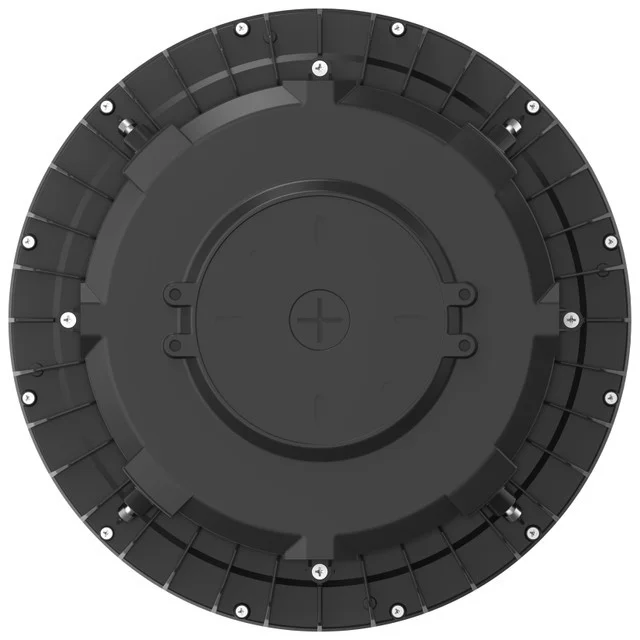

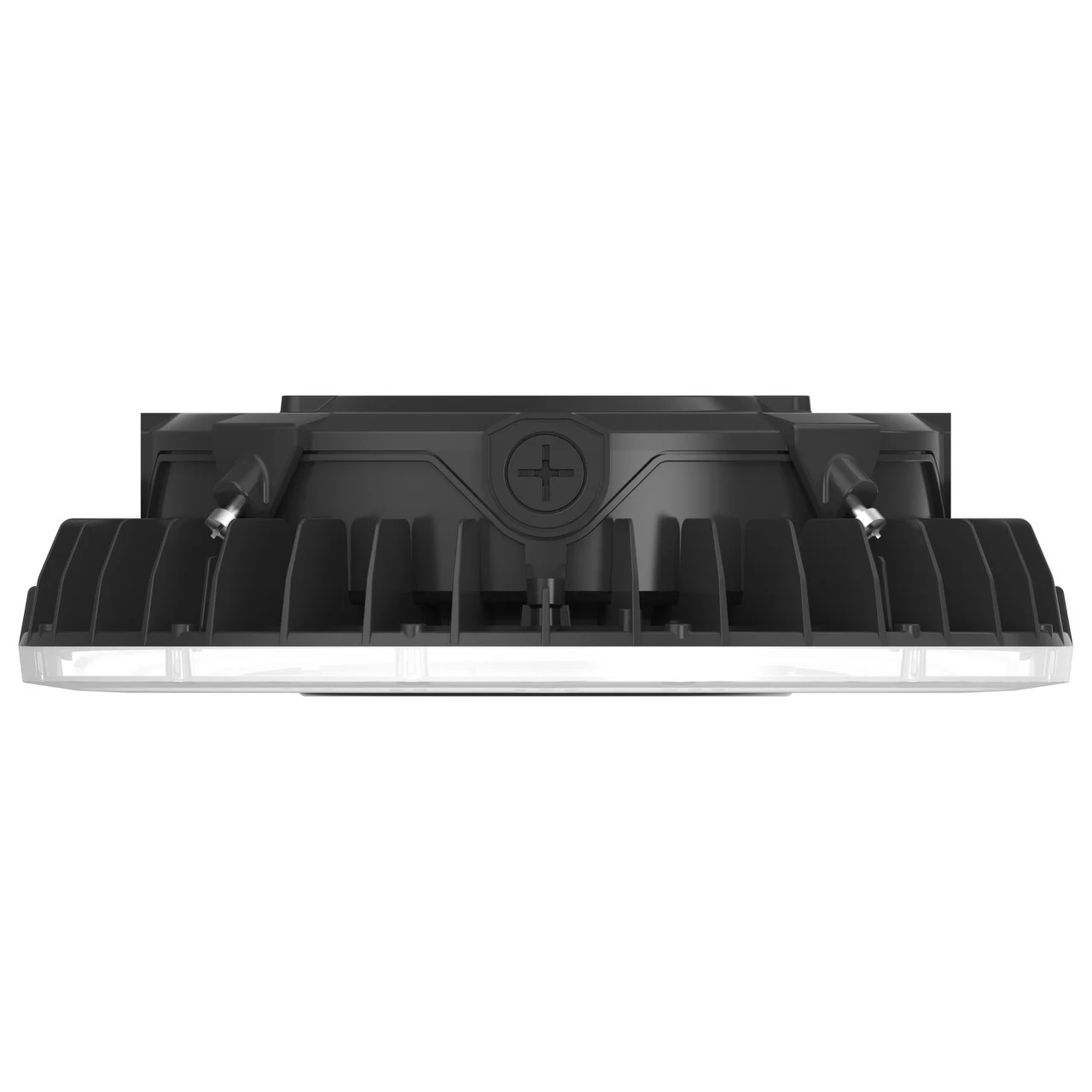

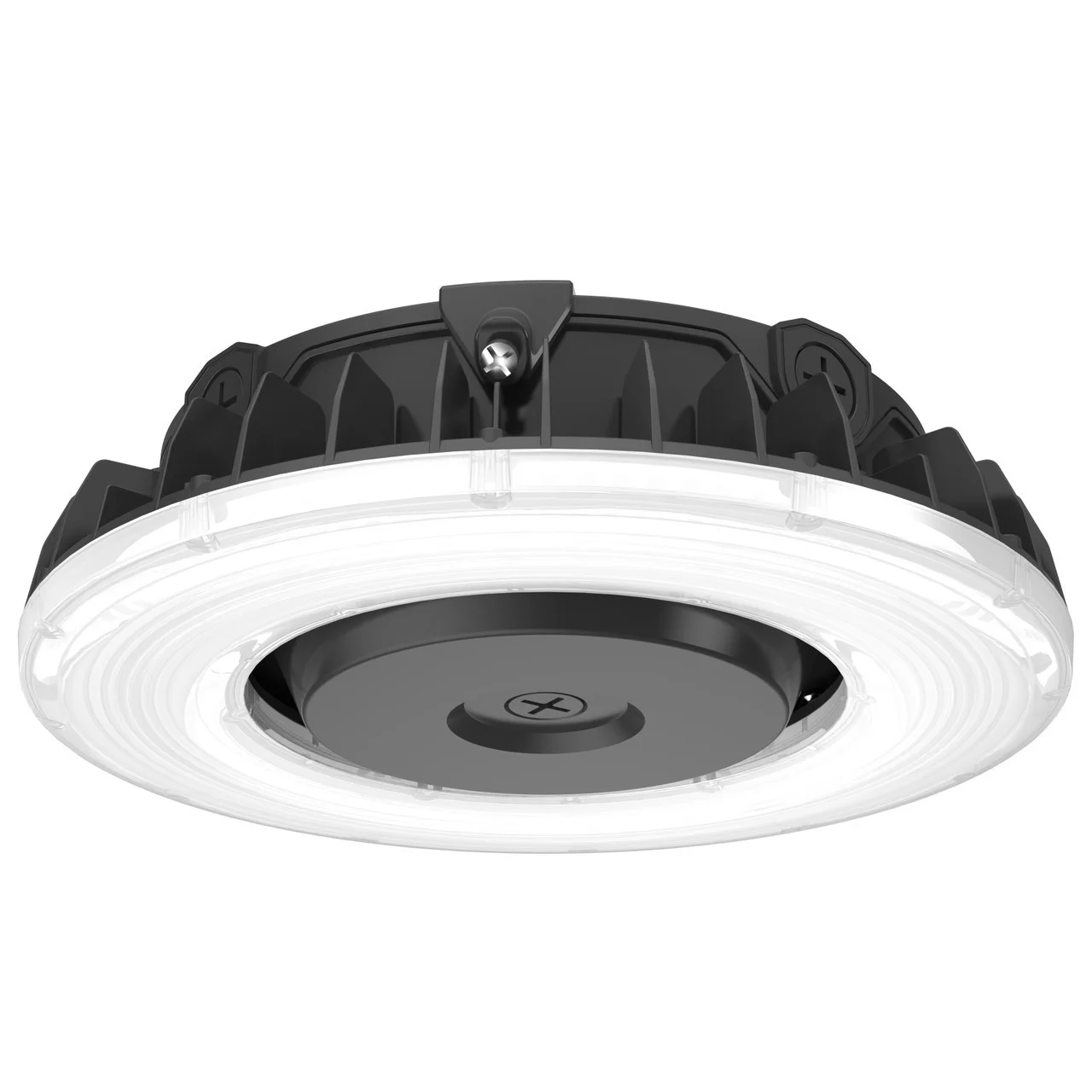

The ESL Round Canopy Series delivers versatile, high-performance illumination for commercial exterior and covered applications. This 1st generation round model combines field-selectable wattage and CCT in one fixture, helping contractors and facility teams simplify inventory while matching site lighting needs. Built for dependable operation, it is a key solution in ESL Vision’s canopy lineup for retrofit and new construction projects.
Key Features and Benefits
- Multi-watt and 3CCT selectable design enables fast on-site tuning for output and visual comfort
- 0-10V dim-to-off capability supports energy-saving controls and occupancy-based strategies
- IP65-rated construction helps protect performance in demanding outdoor and semi-exposed environments
- DLC Premium listed and UL certified to support utility rebate opportunities and code-driven projects
- Backed by a 5-year warranty for long-term confidence in commercial installations
- Surface-mount plate design streamlines installation and reduces labor time
Specifications
- Lumen Output: 8745
- Wattage: 25W|40W|55W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Efficacy: 159 lm/W
- Beam Angle: 150°
- Frequency: 50/60 Hz
- Power Factor: 0.9
- THD: 20
- Operating Temperature: -30°C to 45°C (-22°F to 113°F)
- Rated Life (L70): 175000 hours
- Dimensions: Ø10″ x 3.62″
- Weight: 4.03 lbs
- Surge Protection: 6kV
- Default Setting: 55W, 4000K
Common Uses
Ideal for parking garages, covered walkways, entry canopies, loading areas, and commercial soffit applications where durable, efficient, and configurable overhead lighting is required.
