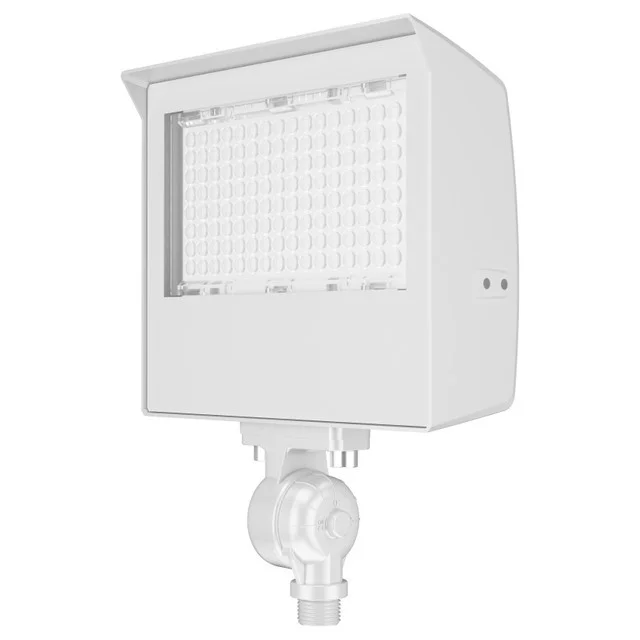

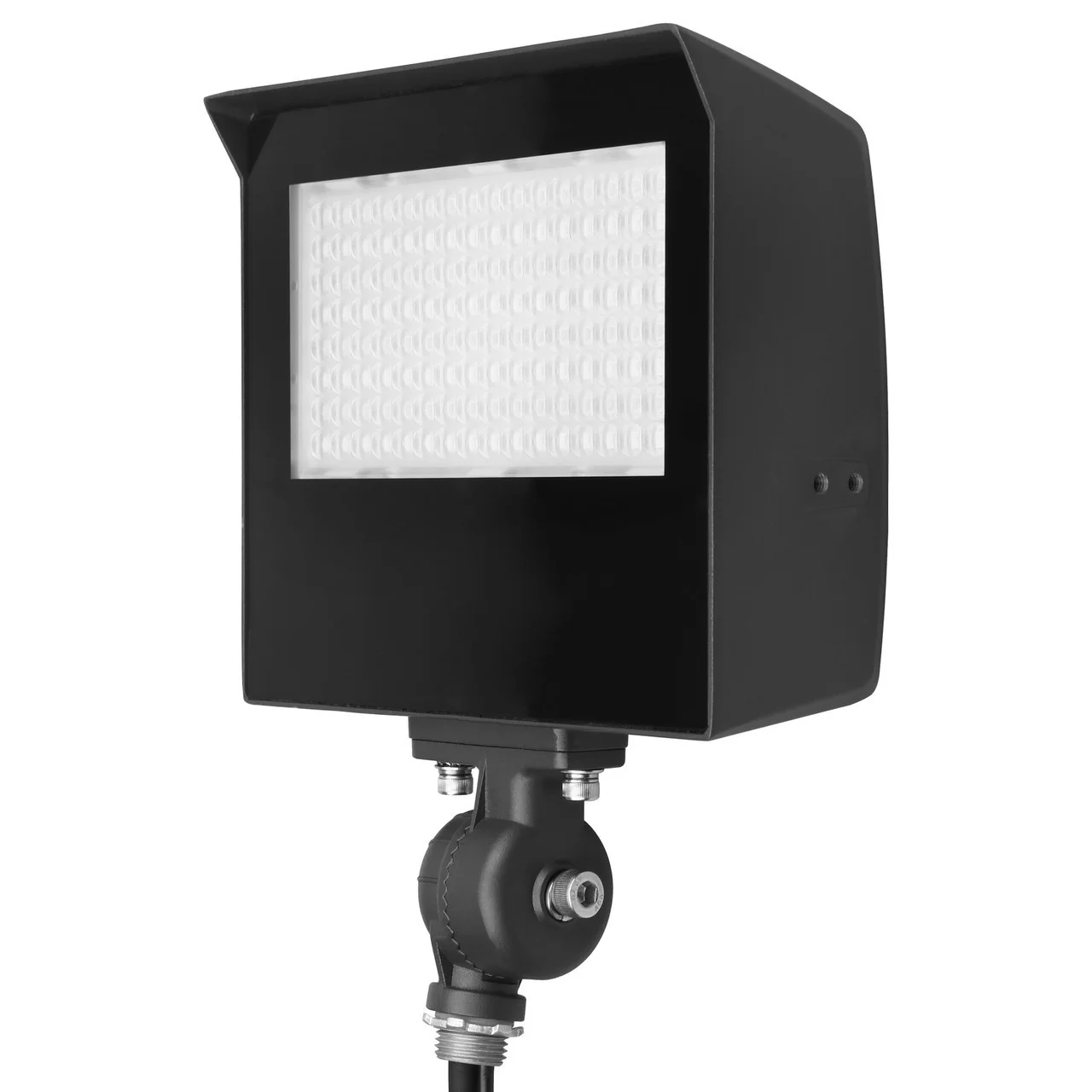

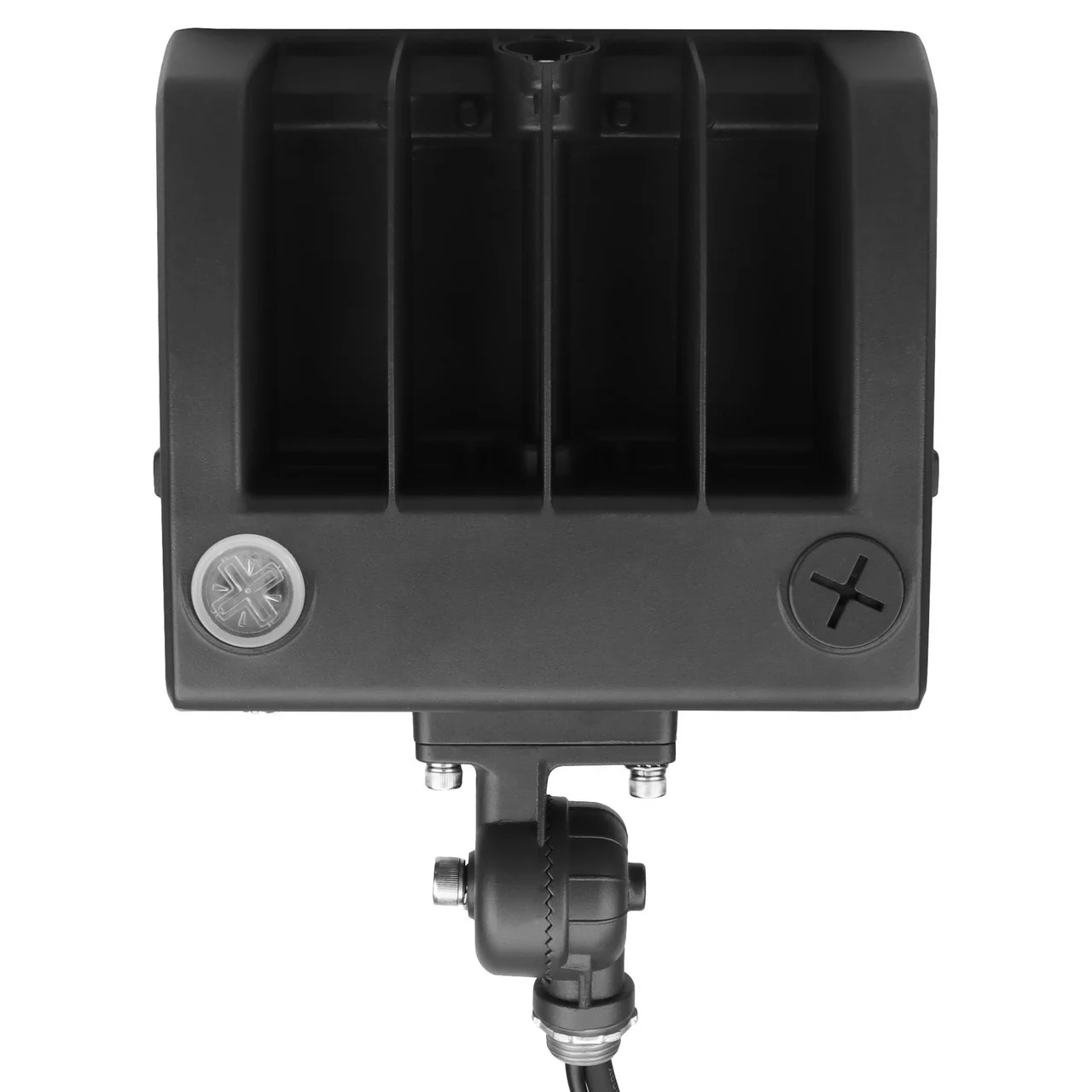

The ESL Flood Light Series in the 3060W platform is a versatile exterior lighting solution designed for adaptable performance across commercial and industrial sites. As part of ESL Vision’s Gen 2 lineup, it combines selectable wattage, CCT, and beam spread in one fixture to simplify stocking and field setup.
Key Features and Benefits
- Field-selectable output with four wattage settings (30W/40W/50W/60W) for flexible light levels
- 3-CCT selectable tuning (3000K/4000K/5000K) to match warm, neutral, or daylight applications
- Selectable optics (55°/75°/90°) for tighter throw or wider area coverage
- Integrated on/off photocell for automatic dusk-to-dawn operation and energy savings
- 0-10V dim-to-off control compatibility for advanced lighting control strategies
- Durable die-cast housing with IP65 protection for reliable outdoor performance
- DLC Premium and UL Certified design supports rebate eligibility and code confidence
- Backed by a 5-year warranty for long-term peace of mind
Specifications
- Lumen Output: Up to 9000
- Efficacy: Up to 150 lm/W
- Input Voltage: 120-277V
- Frequency: 50/60 Hz
- CRI: >80
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Rated Life (L70): 165000 hours (TM-21 calculated)
- Dimensions: 7.8″ x 7.2″ x 3.4″
- Weight: 2.51 lbs
- Default Settings: 60W, 5000K, 90° beam
- Included Mounts: Knuckle mount and trunnion mount
Common Uses
Ideal for building facades, loading zones, parking areas, security perimeters, signage illumination, and general-purpose outdoor floodlighting in commercial and light industrial environments.
