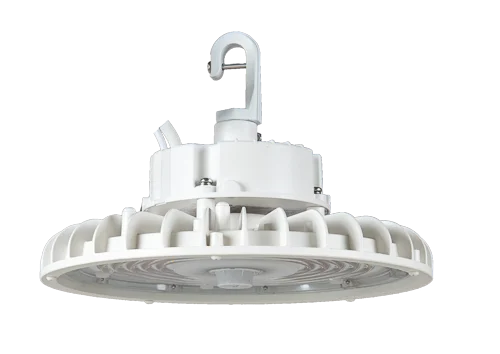

The Energetic Lighting HBC Series low-profile LED high bay is built for demanding commercial and industrial environments where reliable, efficient illumination is critical. Designed with selectable wattage and CCT, this fixture simplifies inventory while adapting to different mounting heights and task needs. Its rugged sealed construction and thermal management make it a dependable choice across the manufacturer’s high-performance lineup.
Key Features and Benefits
- Field-selectable output with ezWATT and ezCCT for flexible deployment across multiple applications
- IP65 sealed design supports wet-location use, including areas exposed to direct water contact
- Smooth 0-10V dimming down to 10% enables energy savings and control integration
- High efficacy performance helps reduce operating costs while maintaining strong light levels
- ETL Listed and NSF Listed with DLC Standard qualification for trusted compliance and rebate potential
- Backed by a 5-year warranty for long-term peace of mind
Specifications
- Lumen Output: 22500|18000|13500
- Wattage: 150W|120W|90W
- Voltage: 120-277V
- Color Temperature: 5000K|4000K
- CRI: 80
- Beam Angle: 90°
- Power Factor: 0.9
- THD: 0.2
- Efficacy (lm/W): 150
- Rated Life (70 Hours): 50000
- Max Ambient Temperature: 122°F
- Form Factor: Round
- Finish / Color: White
- Primary Material: Cast aluminum
- Lens Material: Polymer
- IP Rating: IP65
- Weight: 4.6 lbs
- Dimensions: 10.4″L x 10.4″W x 6.9″H
Common Uses
Ideal for warehouses, distribution centers, industrial facilities, grocery back-of-house areas, and commercial workstations requiring high-output, controllable, and wet-location-rated lighting.
