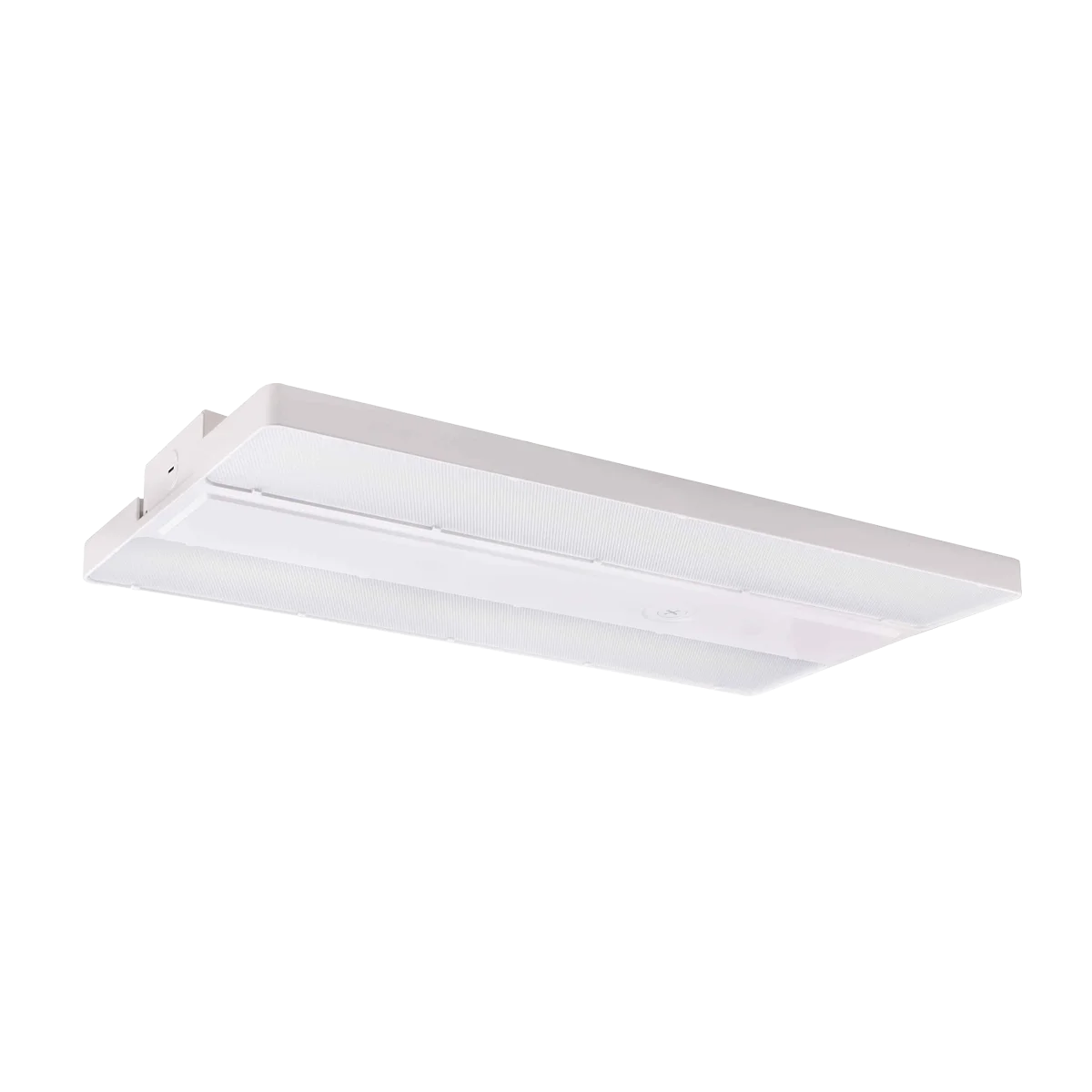

High-performance 4ft high bay light with 100,000 lumens output, 5000K color temperature, and narrow distribution. Ideal for large industrial spaces.
Key Features and Benefits
- Sleek Curved Polycarbonate Injection Molded End Caps
- Aluminum Body with steel channel for added rigidity
- Toolless Hinged Driver Access
- Narrow Distributions
- V-Clips for dual point chain or cable hanging (standard)
- 131°F Standard Ambient Temperature Range
- 5000K CCT
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 0-10V Dimmable Driver (100%– 10%)
- 5 Year Warranty (standard)
- ETL Listed for Damp Location
- DesignLights Consortium® Premium Qualified Luminaire
Specifications
- Construction: Aluminum body with steel driver channel for maximum rigidity and thermal properties
- Electrical: Class 2 LED light engine for high efficacy and long life. Calculated L70 > 100,000 hrs. Power Factor > 0.90. THD < 20%
- Mounting: Options include suspension chain, aircraft cables, hook, single pendant (HUB), surface mount (SMZB KIT EDV)
- Warranty: 5 Year Warranty Standard
- Thermal: Standard ambient temperature range -40°F up to 131°F (-40°C to 55°C)
- Controls: Factory installed Advanced
- Certifications: ETL listed to US and Canadian safety standards. Suitable for damp locations
Common Uses
Suitable for gymnasium, manufacturing, warehouse, distribution centers, hangar, retail, government facilities, auto service bays/lanes.
