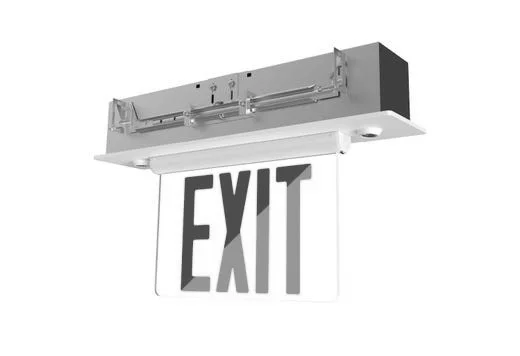

The Halco Emergence Thermoplastic Edgelit Combo Series is a versatile recessed exit and emergency solution designed for dependable life-safety performance. Built for commercial interiors, it combines a clean edgelit exit sign with integrated emergency lighting and flexible field-selectable options. This model is a key choice in Halco’s emergency lineup for code-driven projects requiring adaptable installation and operation.
Key Features and Benefits

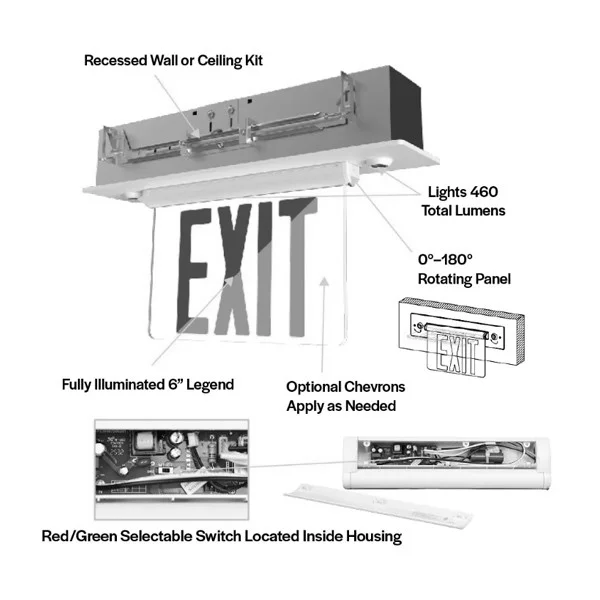

- Field-selectable red or green legend and single- or double-face configuration for on-site flexibility
- Selectable manual test or automatic self-test/self-diagnostics to simplify maintenance checks
- Integrated battery backup with 90+ minute emergency operation for reliable egress illumination
- Recessed ceiling or wall mounting with included bar hangers and universal J-box pattern
- UL 924 listed for damp locations and compliant with CEC Title 20, NFPA 101, and NFPA 70
- Backed by a 2-year warranty for added project confidence
Specifications
- Input Voltage: 120/277VAC
- Frequency: 60Hz
- Emergency Lamp Heads: Two fully rotatable 3.2VDC, 0.75W heads (1.5W total)
- Lumen Output: 460 lumens total
- Battery: Maintenance-free LiFePO4
- Recharge Time: <24 hours
- Emergency Discharge Duration: 90 minutes+
- Operating Temperature: 5°C to 50°C
- LED Life Expectancy: 100,000+ hours
- Legend Size: 6″ height with 3/4″ stroke
- Panel: Snap-in/out field-replaceable clear acrylic
- Housing: Pivoting injection-molded thermoplastic
Common Uses
Ideal for hallways, stairwells, offices, retail spaces, hospitality facilities, medical buildings, and other commercial interiors where compliant exit marking and emergency illumination are required.
