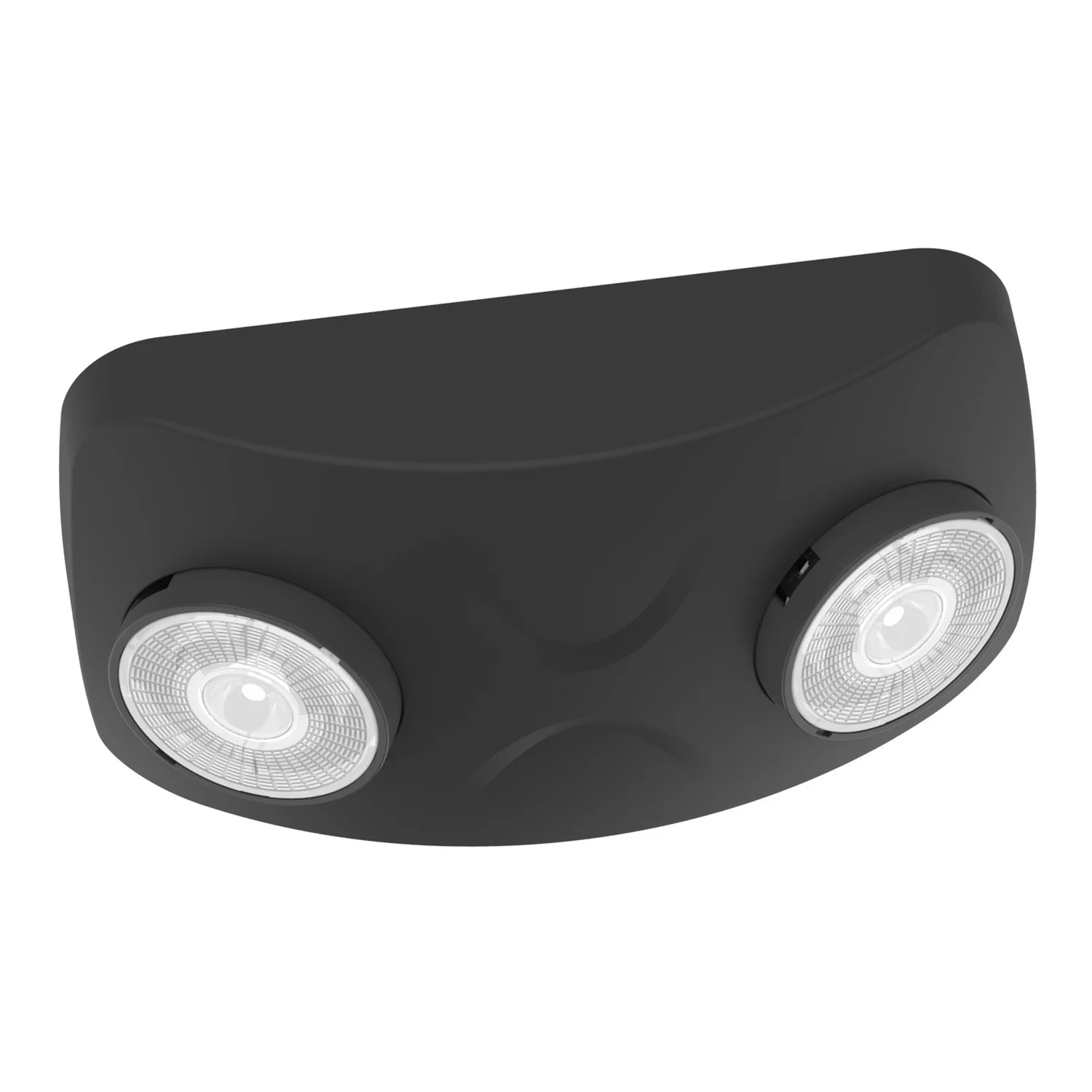

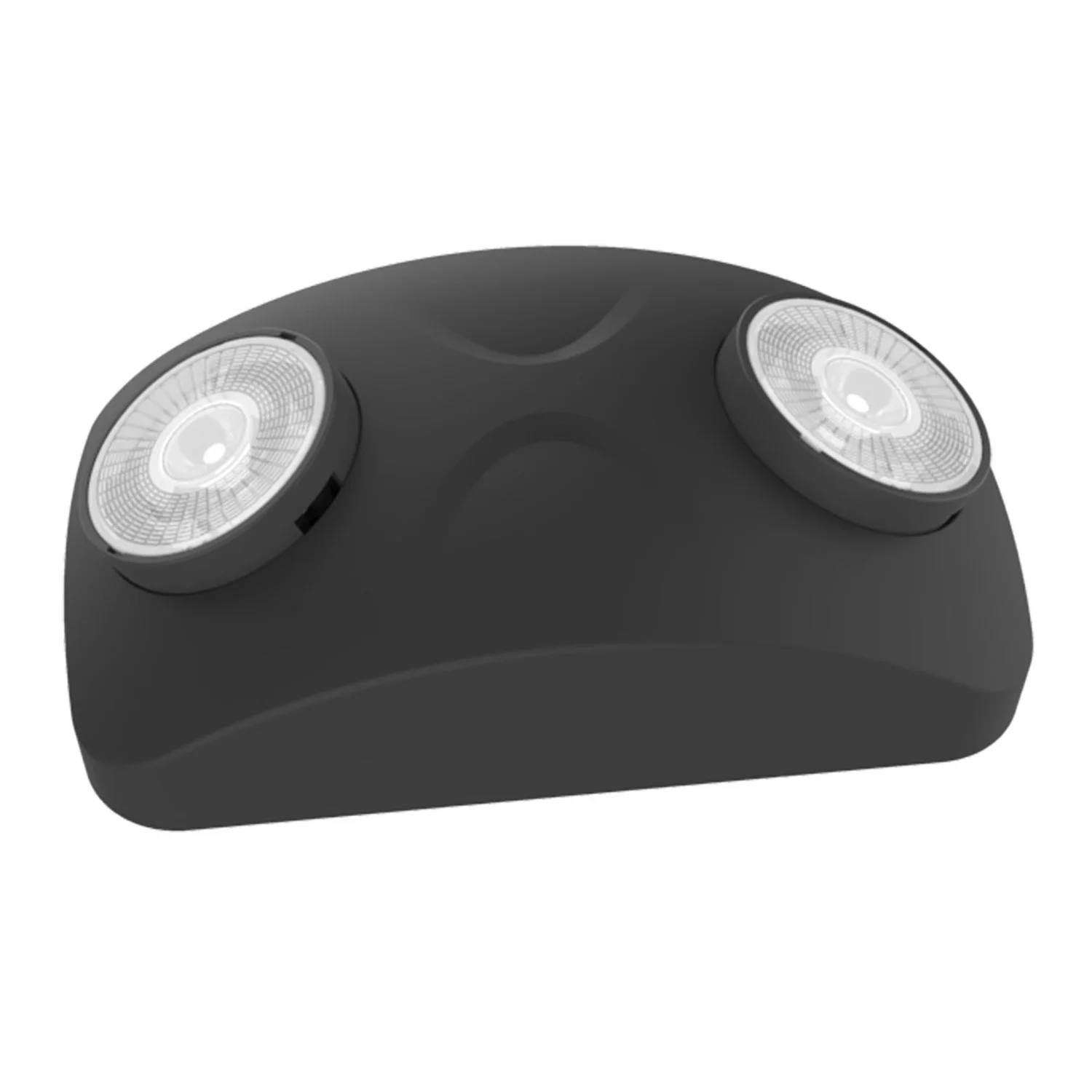

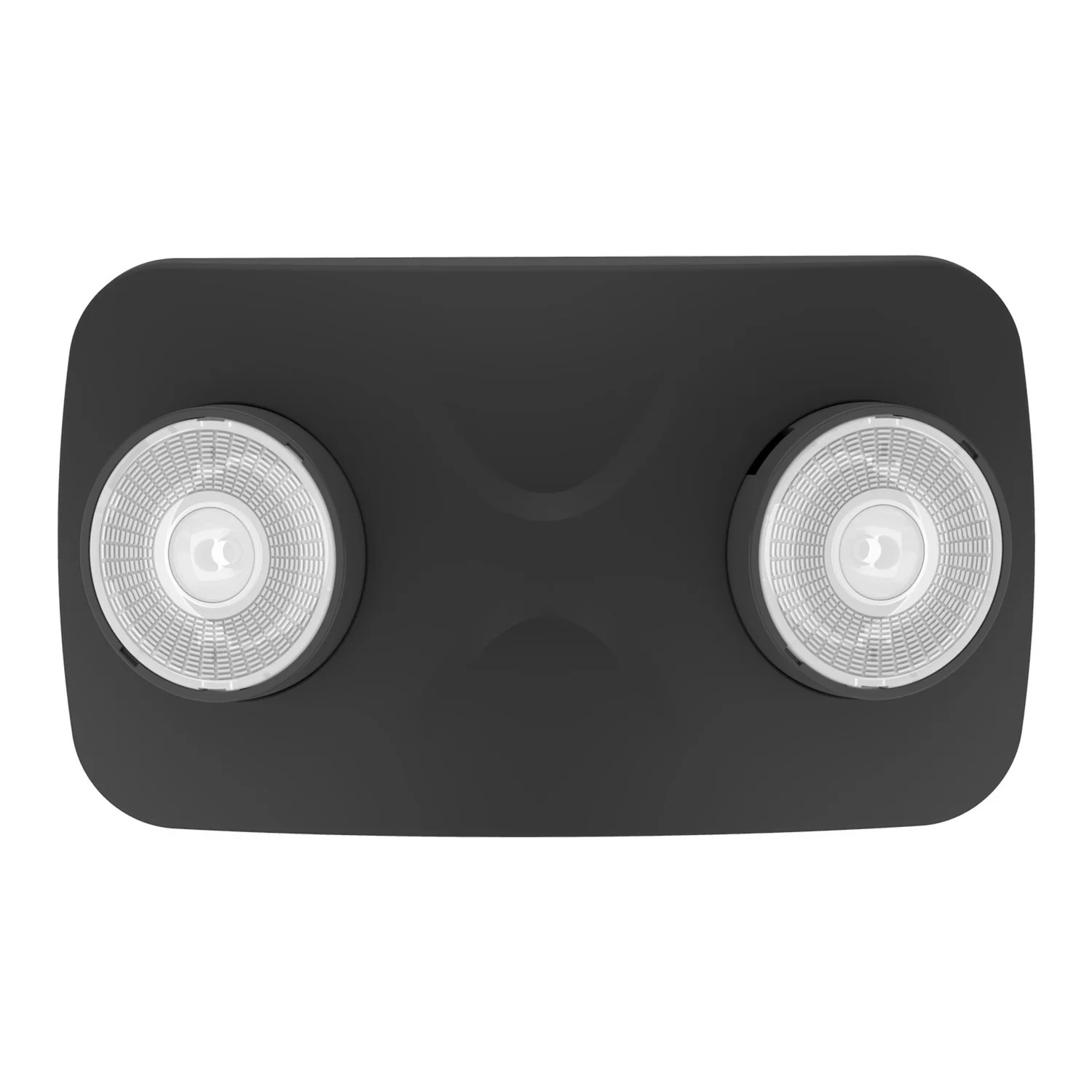

The Westgate EL Series EL-M5-BK is a modern mini emergency light designed for dependable egress illumination in commercial and multi-occupancy spaces. As part of Westgate’s emergency lineup, it combines compact styling with intelligent control and self-test functionality for reliable life-safety performance.
Key Features and Benefits
- Dual fully adjustable LED lamp heads provide targeted emergency coverage for open areas and escape routes.
- Interchangeable round and oval lens options support flexible light distribution based on application needs.
- Built-in 3.6V 1000mAh Ni-MH battery delivers a minimum 90-minute emergency runtime during power loss.
- Integrated test switch and charge indicator simplify routine inspection and maintenance.
- UL Listed construction supports code-driven emergency lighting installations.
Specifications
- Lumen Output: 150
- Wattage: 1W per head (2 heads)
- Voltage: 120-277V AC, 50/60Hz
- Color Temperature: 5700K
- Efficacy: 75 lm/W
- Power Factor: >0.90
- BUG Rating: B0-U1-G0
- Operating Temperature: 32° to 122°F
- Mounting: Surface mount with universal J-box pattern
- Head Adjustment: 90° vertical tilt, 350° horizontal rotation
- Recharge Time: Up to 24 hours
- IP Rating: IP20 (IP65 with optional box)
Common Uses
Ideal for corridors, stairwells, exits, and general egress paths in offices, schools, retail buildings, and other commercial or high-occupancy residential facilities requiring emergency illumination.
