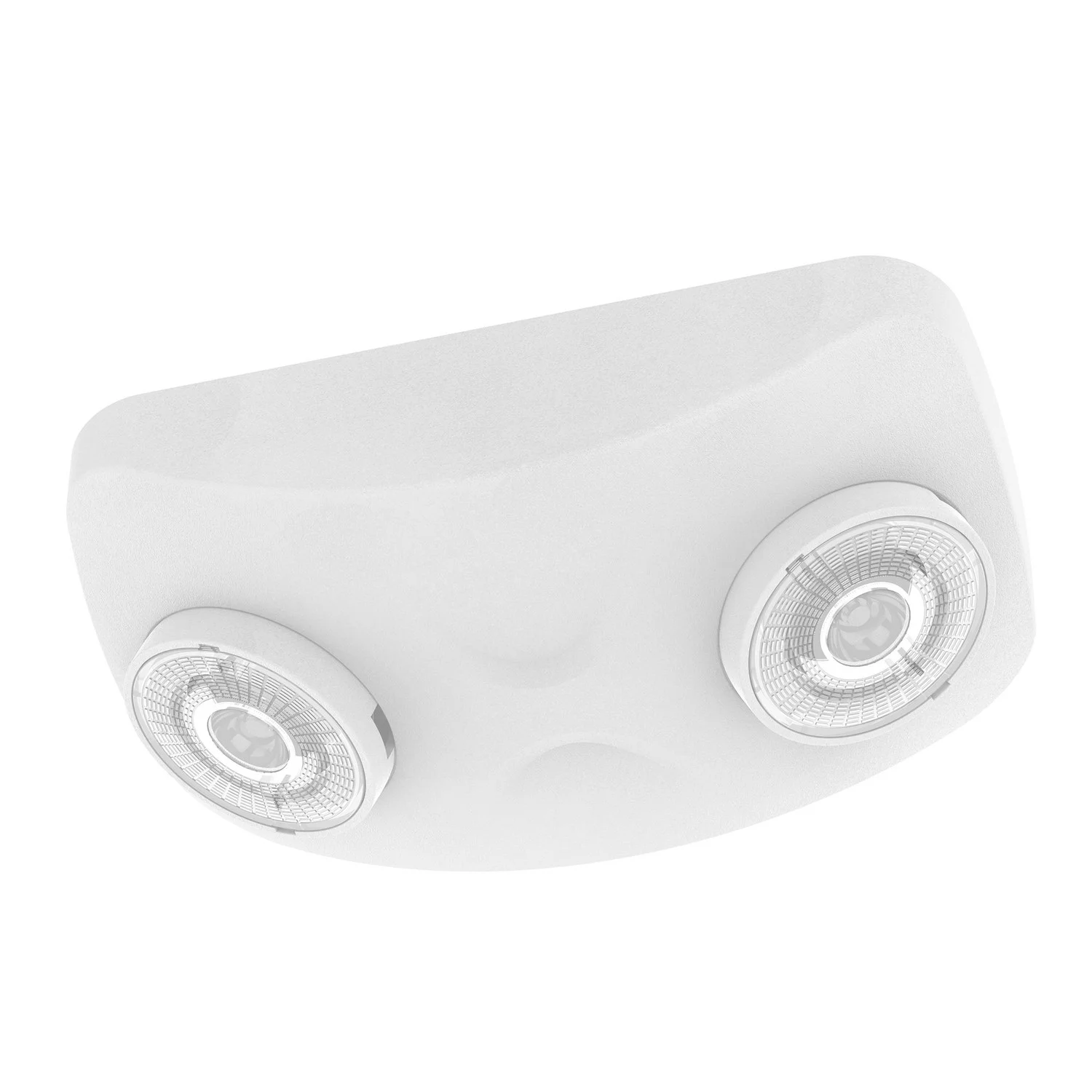

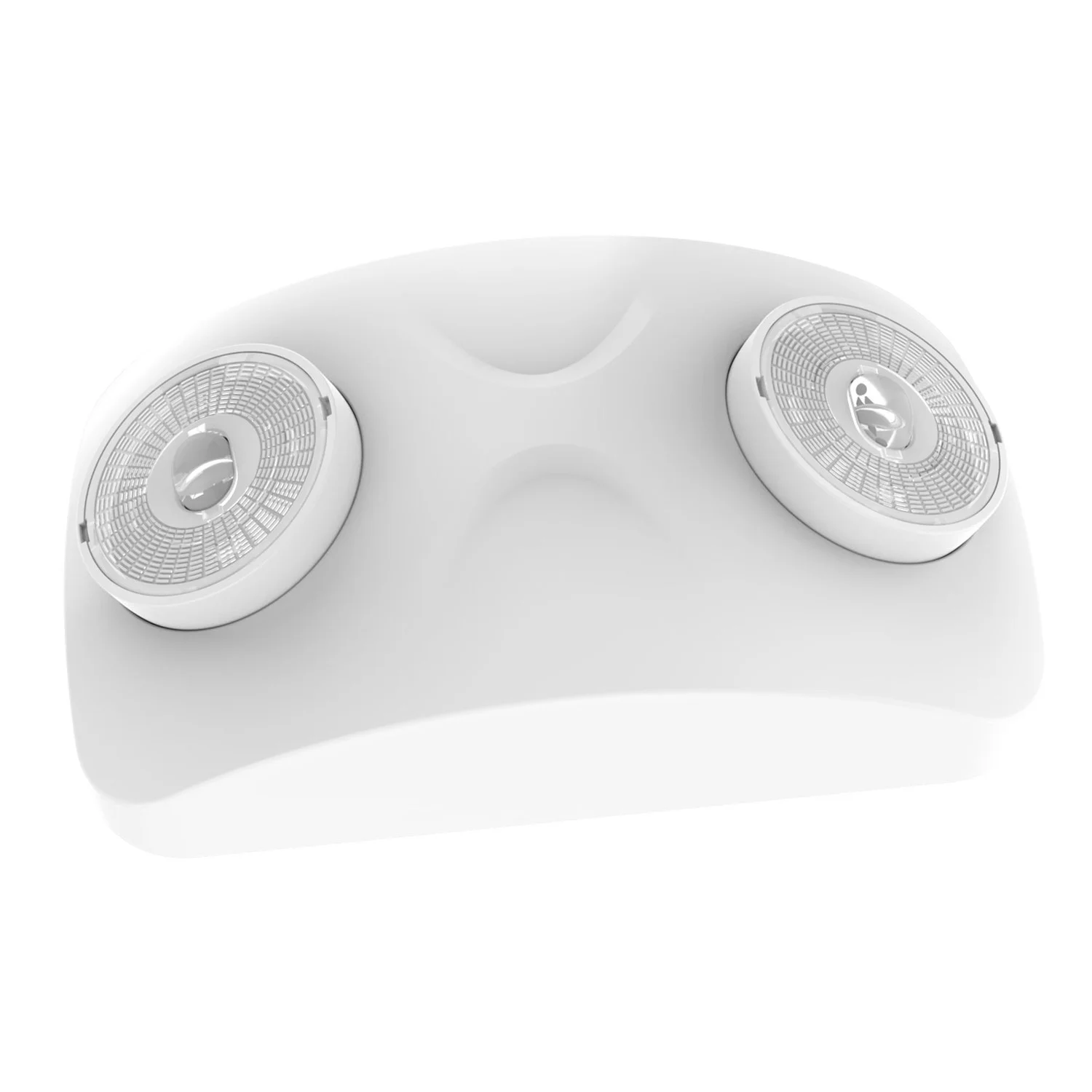

The Westgate EL Series EL-M5 Modern Mini Emergency Light is a compact, code-oriented emergency unit designed for dependable egress illumination. As part of Westgate’s emergency lineup, it combines a clean architectural look with practical performance for commercial and multi-occupancy buildings.
Key Features and Benefits
- Dual fully adjustable LED lamp heads provide targeted light coverage for open areas and escape routes.
- Built-in 3.6V 1000mAh Ni-MH battery delivers at least 90 minutes of emergency operation during power loss.
- Integrated test switch and LED charge indicator simplify routine inspection and maintenance checks.
- Universal J-box pattern with wall or ceiling surface mounting supports fast, flexible installation.
- UL Listed construction supports trusted safety compliance for emergency lighting applications.
Specifications
- Lumen Output: 150
- Wattage: 1W per head (2 heads)
- Voltage: 120-277V AC, 50/60Hz
- Color Temperature: 5700K
- Efficacy: 75 lm/W
- Power Factor: >0.90
- BUG Rating: B0-U1-G0
- Operating Temperature: 32° to 122°F
- Recharge Time: 24 hours max
- Dimensions: 4.25″(H) x 7.32″(W) x 2.28″(D)
- Finish: White
- IP Rating: IP20 (IP65 with optional box)
Common Uses
Ideal for corridors, stairwells, exits, and general egress paths in offices, retail spaces, schools, healthcare facilities, and other commercial or high-occupancy residential environments.
