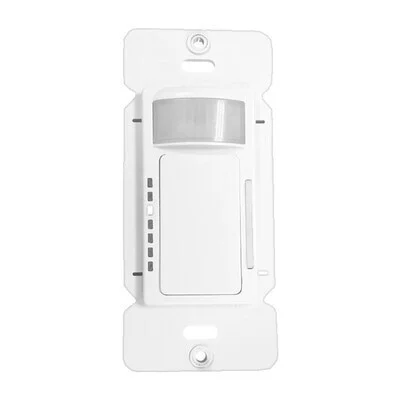

EiKO Wireless Wall Controller, PIR Sensor, Bluetooth Mesh, Single Button, 120-277V, PSC-DM-I-WS-100-BLE-SR

The EiKO PSC-DM-I-WS-100-BLE-SR is a smart wireless wall controller designed for seamless integration into networked lighting control systems. Featuring a built-in PIR sensor and Bluetooth SIG mesh technology, this controller enables advanced area zoning, grouping, and personal control, all managed through an intuitive iOS app. With its single-button interface, it offers manual on/off and dimming, along with occupancy/vacancy detection and ambient threshold settings. The device is cULus listed for damp locations, FCC and RoHS compliant, and supports over-the-air firmware upgrades for future-proof performance.

Key Features and Benefits

• Wireless Bluetooth mesh connectivity for robust, hub-free networking
• Integrated PIR sensor for occupancy and vacancy detection
• Simple single-button control for on/off and dimming
• Easy commissioning and adjustments via free iOS app
• Continuous dimming and customizable profiles
• Supports over-the-air firmware updates
• cULus listed for damp locations, FCC and RoHS compliant
• Mounts in a standard electrical box with white plastic housing

Specifications

• Input Voltage: 120-277V, 50/60Hz
• Power Consumption: 1.5W max
• Communication Range: up to 30ft
• Operating Temperature: 32°F to 131°F (0°C to 55°C)
• Single button interface

Common Uses

Perfect for office spaces, classrooms, conference rooms, storage areas, break rooms, and restrooms where smart, energy-efficient lighting control is needed.
