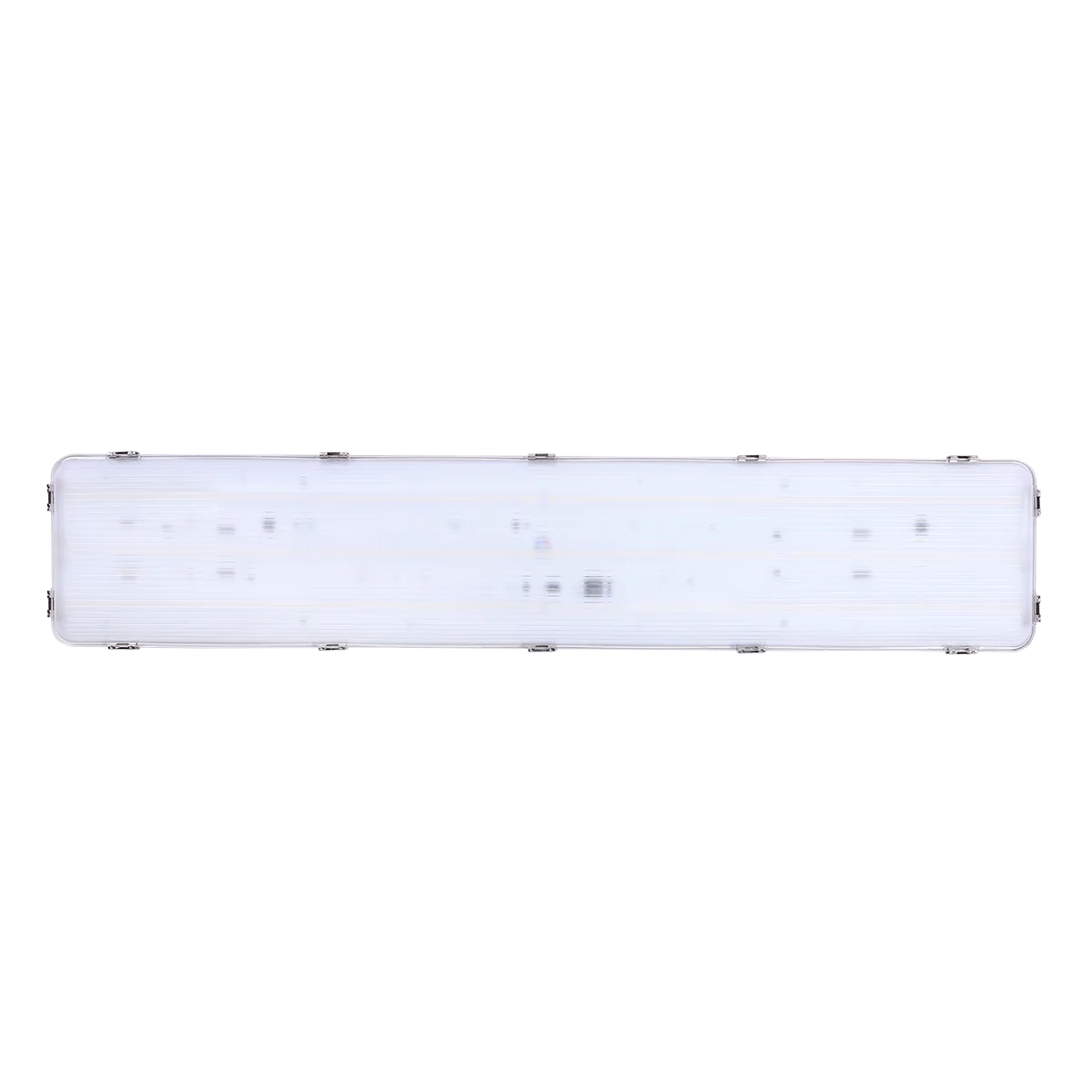

The EiKO VPHB2 series is a rugged vapor proof linear fixture engineered for demanding environments where moisture, dust, and impact resistance are critical. This PS135 configuration combines field-selectable wattage and CCT to simplify stocking while delivering dependable high-output performance across industrial and commercial applications.
Key Features and Benefits
- PowerSet and ColorSet technology enables on-site tuning for output and color to match changing project needs.
- Built for harsh locations with NEMA 4X, IP67, and IK10 protection for long-term reliability.
- Controls-ready platform supports plug-and-play occupancy sensor upgrades and advanced lighting strategies.
- DLC Standard and DLC Premium listed, NSF rated, and backed by a 5-year limited warranty for confidence in specification.
Specifications
- Lumen Output: 20250|18000|15000
- Wattage: 135W|120W|100W
- Voltage: 120-347V
- Color Temperature: 3500K|4000K|5000K
- CRI: 80
- Efficacy (lm/W): 150
- Rated Life (70 Hours): 100000
- Power Factor: 0.9
- THD: 20
- Dimming Type: 0-10V
- Max Ambient Temperature: 104°F (40°C)
- Housing Material: Polycarbonate
- Lens Material: Polycarbonate
- Form Factor: Linear
- IP Rating: IP67
- IK Rating: IK10
- Weight: 14.5 lbs
- Dimensions: 50.118″ x 10.236″ x 4.724″
Common Uses
Ideal for poultry barns, food processing areas, commercial freezers, warehouses, parking garages, and industrial facilities requiring sealed, high-lumen linear lighting.
