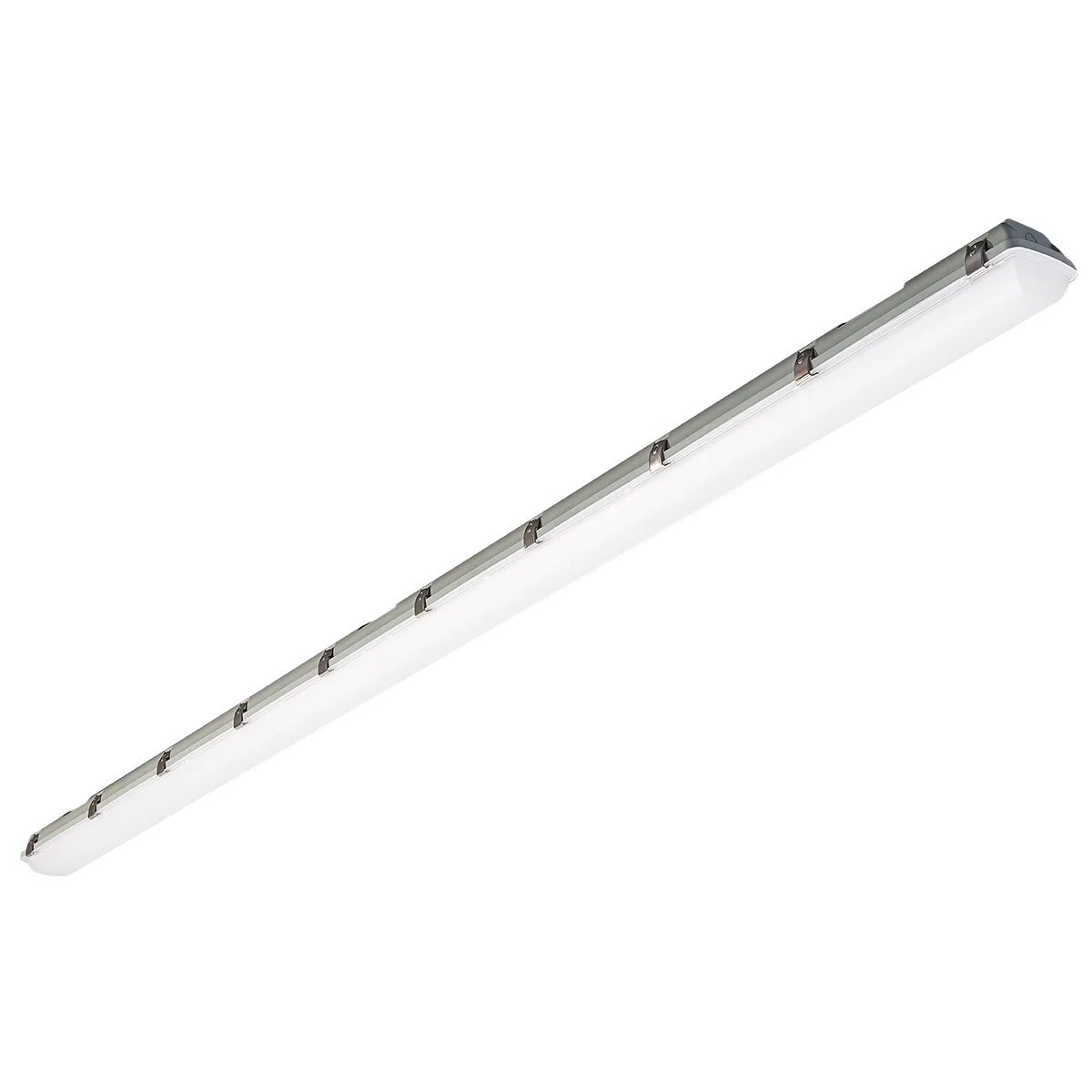

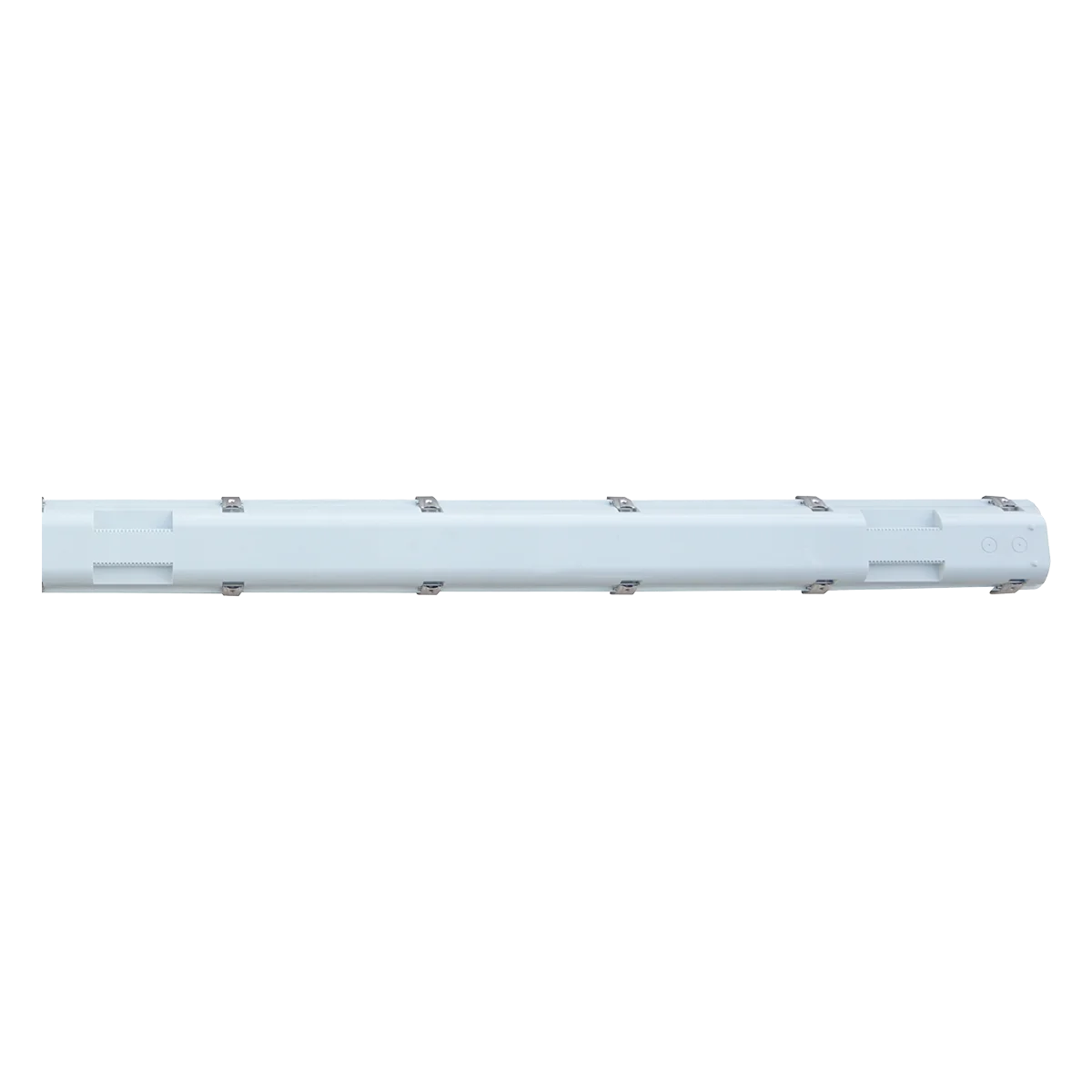

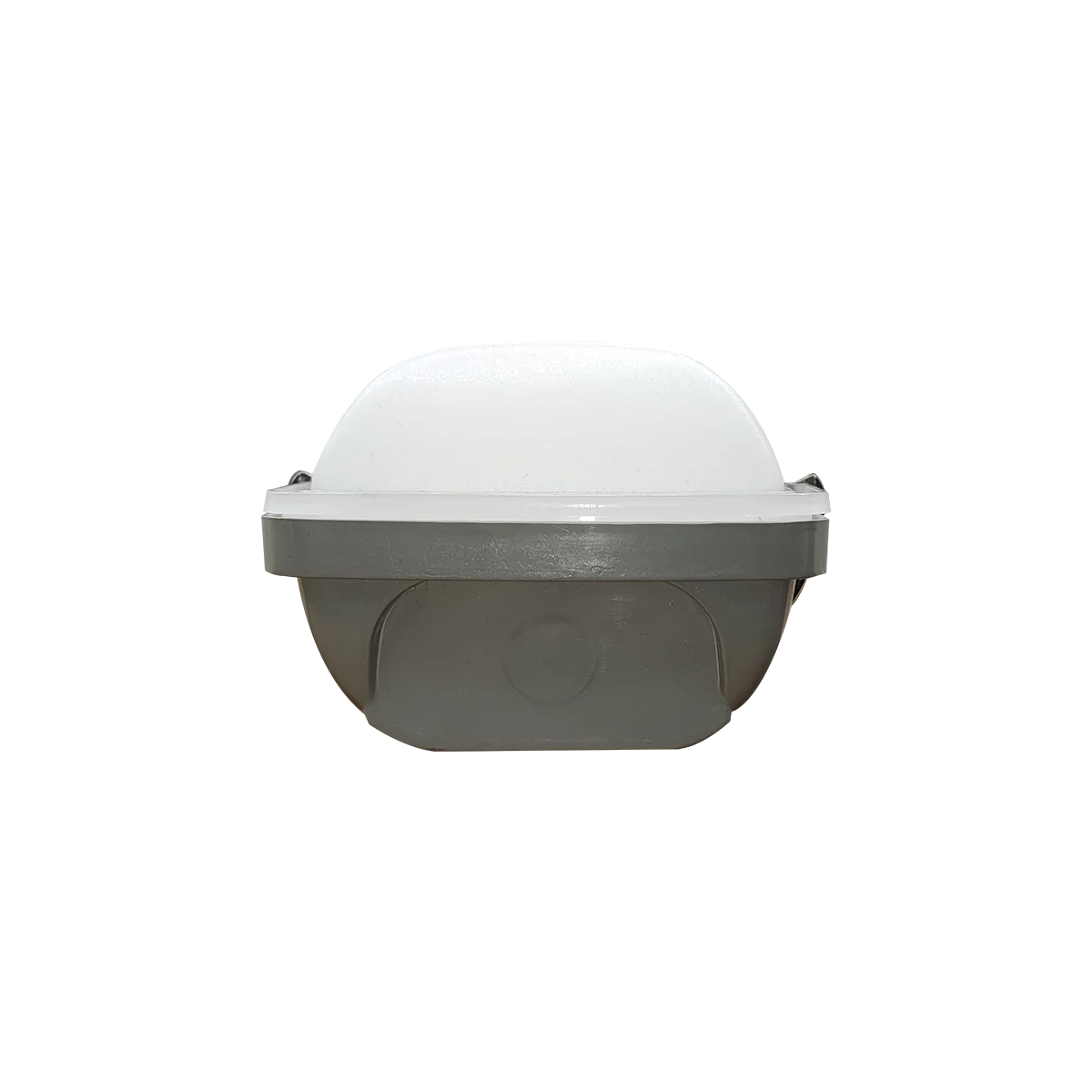

The EiKO VP3 series is a rugged vapor proof linear fixture designed for demanding commercial and industrial environments. This 8′ configuration combines high output, field-selectable wattage, and durable sealed construction to support reliable lighting in wet and corrosive locations. As part of EiKO’s VP3 lineup, it delivers flexible performance while helping standardize fixture appearance across mixed-length installations.
Key Features and Benefits
- PowerSet technology provides selectable wattage (90/75/65W) for easier on-site light level tuning.
- High-performance output up to 12,600 lumens with 140 lm/W efficacy for energy-efficient operation.
- Built for harsh conditions with IP66 ingress protection, NEMA 4X corrosion resistance, and IK10 impact rating.
- 0-10V dimming with dim-to-off capability supports advanced energy-saving control strategies.
- Frosted polycarbonate lens helps reduce glare while maintaining broad, even illumination.
- Certified for demanding projects with UL Listed, DLC Standard, DLC Premium, NSF, FCC, and RoHS compliance.
- Backed by a 5-year limited warranty for long-term confidence.
Specifications
- Lumen Output: 12600|10500|9100
- Wattage: 90W|75W|65W
- Voltage: 120-347V
- Color Temperature: 4000K
- CRI: 80
- Beam Angle: 110°
- Power Factor: 0.9
- THD: 20
- Rated Life (L70): 100000 hours
- Operating Temperature (Suspended): -40°C to 50°C
- Operating Temperature (Surface): -40°C to 45°C
- Dimensions: 94.5″ L x 5.1″ W x 3.6″ H
- Housing Material: Polycarbonate
- Lens Material: Frosted Polycarbonate
- Finish / Color: Grey
Common Uses
Ideal for parking garages, stairwells, warehouses, utility areas, barns, low-bay spaces, and general industrial/commercial applications where moisture, dust, and impact resistance are critical.
