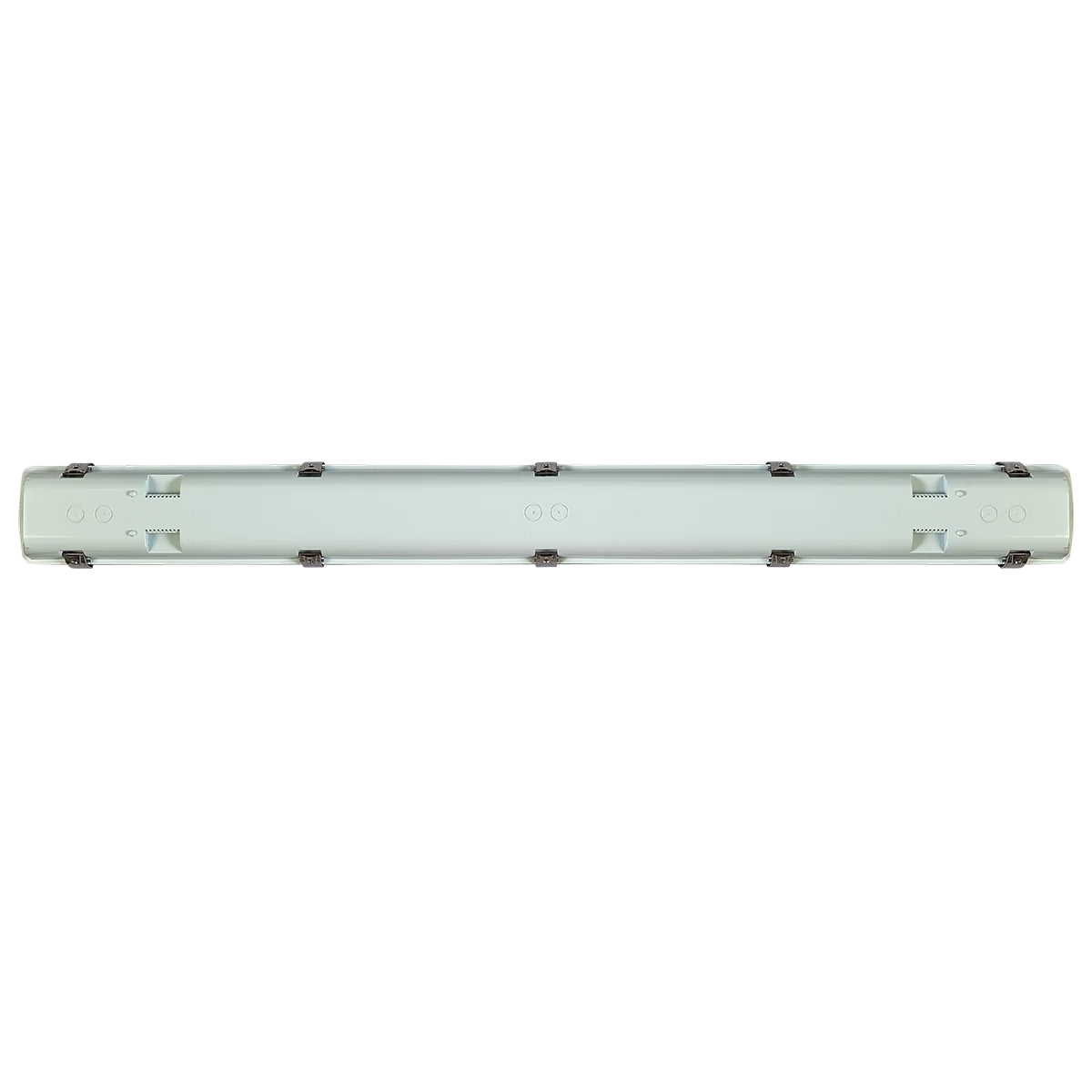

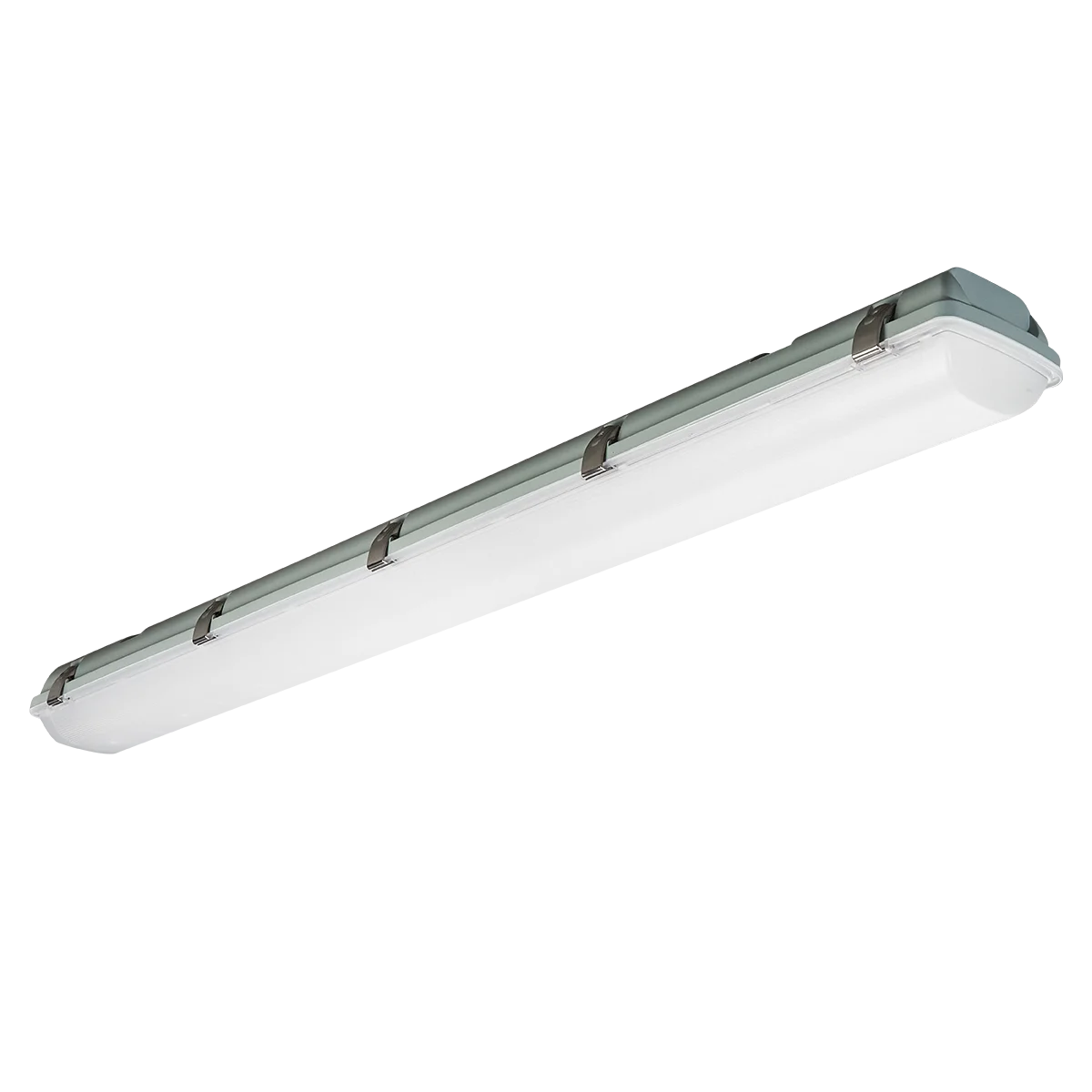

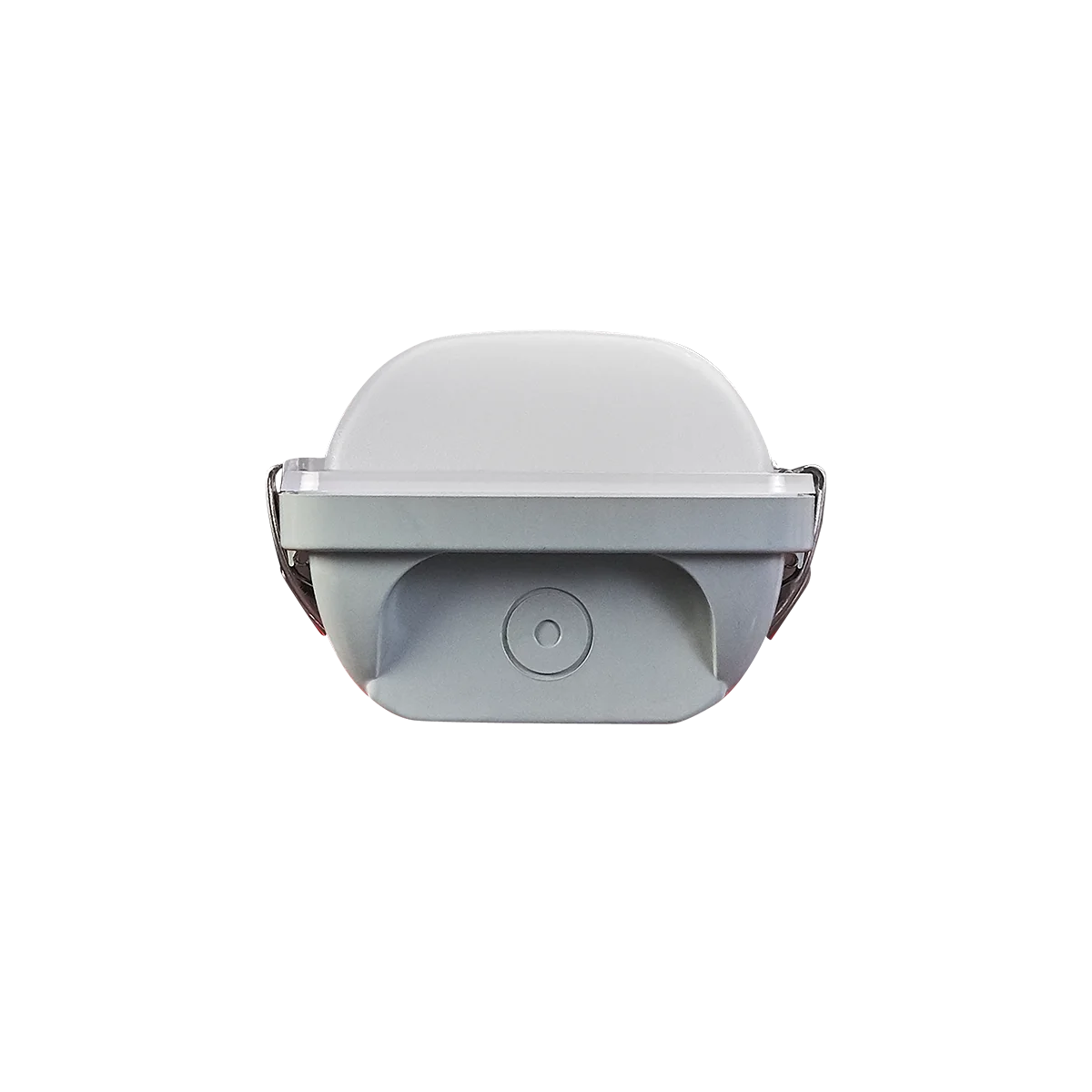

The EiKO VP3 series is a rugged vapor proof linear fixture designed for demanding commercial and industrial environments where moisture, dust, and impact resistance are critical. This 4′ configuration delivers high-output, power-selectable performance with dependable efficiency and long service life, making it a strong fit in EiKO’s sealed linear lineup.
Key Features and Benefits
- PowerSet technology provides three field-selectable wattage levels for easier lumen tuning on site.
- Field-ready control flexibility with behind-the-lens sensor compatibility and 0-10V dim-to-off dimming.
- Built for harsh locations with IP66 ingress protection, NEMA 4X corrosion resistance, and IK10 impact rating.
- Frosted polycarbonate lens helps reduce glare while maintaining strong light distribution.
- Certified for broad project acceptance: UL Listed, DLC Standard, DLC Premium, RoHS, FCC, and NSF listed.
- Backed by a 5-year limited warranty for long-term reliability.
Specifications
- Lumen Output: 6300/4900/3640
- Wattage: 45/35/26W
- Voltage: 120-347V
- Color Temperature: 5000K
- CRI: >80
- Beam Angle: 110°
- Efficacy: 140 lm/W
- Rated Life (L70): 100000 hours
- Power Factor: >0.9
- THD: <20%
- Operating Temperature (Suspended): -40°C to 50°C
- Operating Temperature (Surface): -40°C to 45°C
- Dimensions: 49.8″ L x 5.1″ W x 3.6″ H
- Weight: 6.0 lbs
Common Uses
Ideal for parking garages, stairwells, warehouses, utility areas, barns, low-bay applications, and other wet or washdown-prone commercial and industrial spaces.
