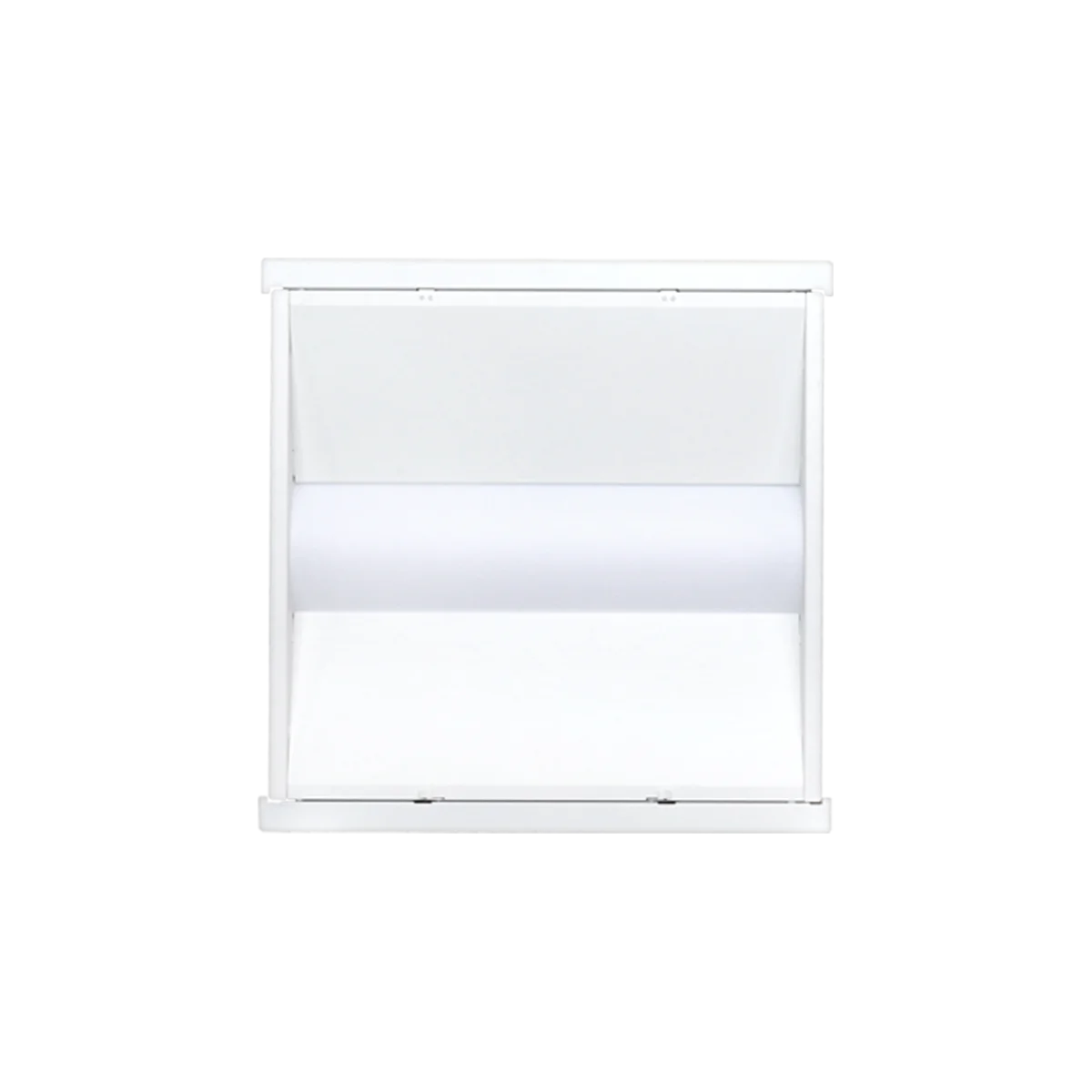

The EiKO VOL-R Volumetric Troffer Retrofit is a high-performance architectural LED upgrade designed for fast one-for-one replacement of fluorescent troffers. As part of EiKO’s commercial retrofit lineup, it combines modern direct/indirect visual comfort with selectable power and CCT to simplify project standardization.
Key Features and Benefits
- PowerSet technology enables field-selectable wattage for flexible lumen packages from one fixture.
- FieldCCeT selection allows quick tuning between 3500K, 4000K, and 5000K to match space requirements.
- Smooth 0-10V dim-to-off control supports energy-saving lighting strategies and occupant comfort.
- Architectural volumetric design with diffuse lens improves visual comfort in offices and public interiors.
- UL Listed and DLC Standard qualified for trusted performance and rebate-friendly projects.
- Backed by a 5-year limited warranty for dependable long-term operation.
Specifications
- Lumen Output: 5000|4100|3100|2500
- Wattage: 39W|32W|24W|19W
- Voltage: 120-277V
- Color Temperature: 3500K|4000K|5000K
- CRI: 80
- Efficacy (lm/W): 130
- Rated Life (70 Hours): 50000
- Power Factor: 0.90
- THD: 20
- Max Ambient Temperature: 40°C
- Distribution Type: Direct|Indirect
- Housing Material: Powder-coated steel
- Lens Material: Polycarbonate
- Form Factor: 2×2
Common Uses
Ideal for conference rooms, offices, schools, healthcare spaces, retail areas, reception zones, corridors, hospitality environments, and foyers where efficient, comfortable general illumination is required.
