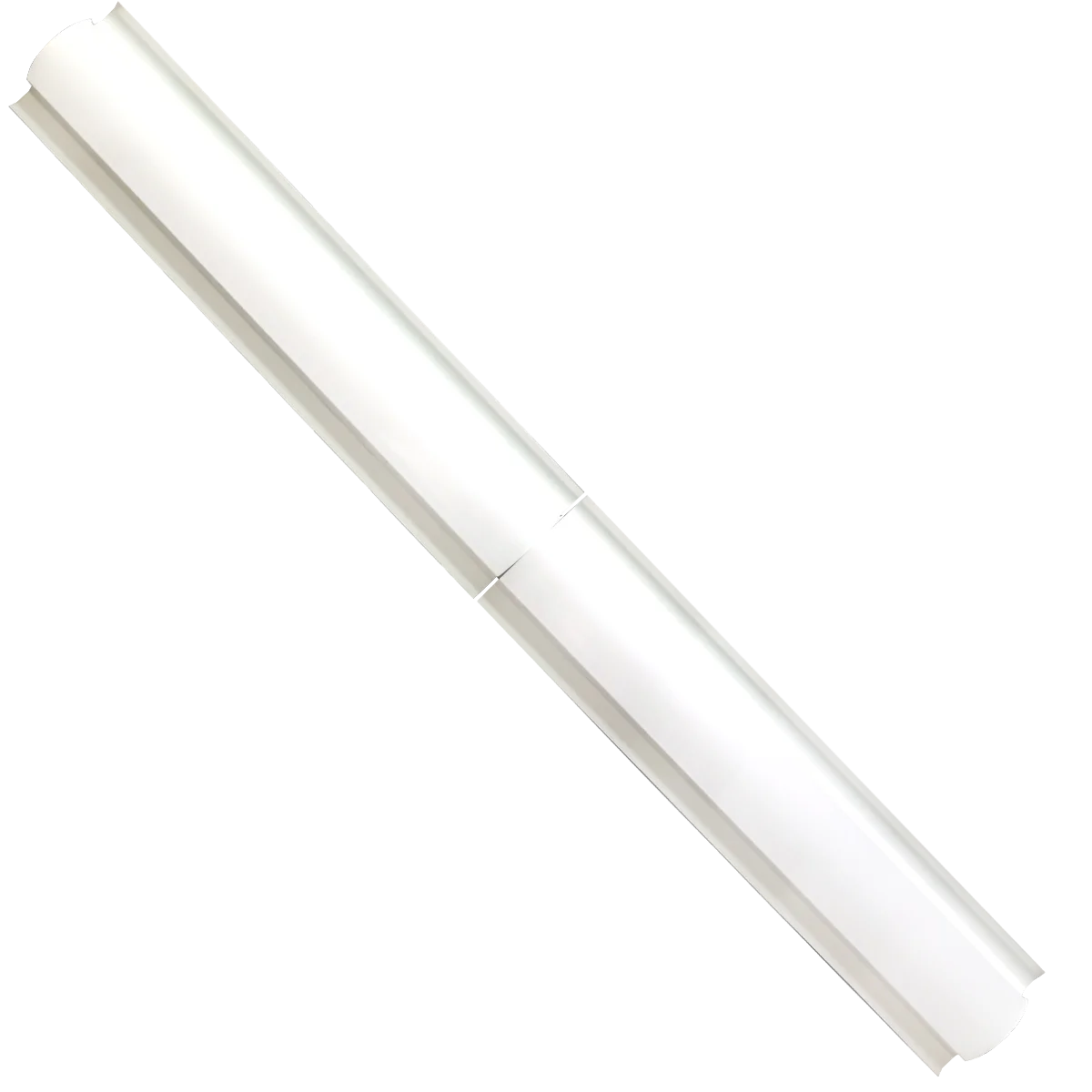

The EiKO STR8R/PS88/UD Series is an advanced 8-foot LED linear strip retrofit kit designed to upgrade existing fluorescent strip fixtures with the latest in energy-efficient LED technology. This retrofit solution offers exceptional flexibility with both field-selectable color temperature (3500K, 4000K, 5000K) and PowerSet wattage options (88W, 68W, 54W), making it easy to tailor the lighting to your specific needs.
Key Features and Benefits
- Easy installation into existing 8′ fluorescent strip fixtures—no need for new housings
- Selectable wattage and color temperature for maximum versatility
- Delivers up to 11,400 lumens with high efficacy (up to 130 lm/W)
- Long lifespan with L70 rated at over 100,000 hours
- 0-10V dimming capability for advanced lighting control
- UL, DLC, RoHS, and FCC certified for quality and compliance
- Sturdy die-formed steel construction with a glare-reducing acrylic lens
Specifications
- Wattage: 88W | 68W | 54W (PowerSet selectable)
- Lumens: 11,400lm | 8,800lm | 7,000lm (based on wattage setting)
- Color Temperature: 3500K | 4000K | 5000K (field-selectable)
- Voltage: 120-277V
- CRI: >80
- Operating temperature: -22°F to 122°F (-30°C to 50°C)
- Power factor: >0.9, THD: <20%
- 5-year limited warranty
Common Uses
Ideal for retrofitting strip lighting in storage areas, utility rooms, coves, display cases, retail spaces, task lighting, and general area lighting where energy savings and flexibility are a priority.
