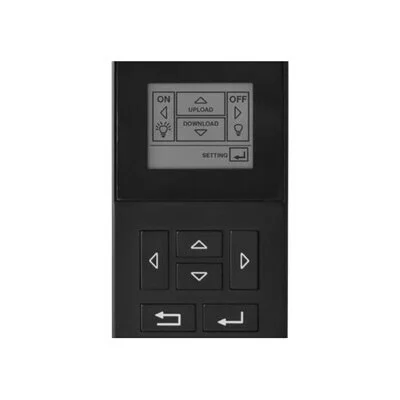

The EiKO SEN-3-RC is a handheld, two-way remote programmer built for Series 3 remote-programmable sensors, including SEN-3B and SEN-3C models. It streamlines sensor setup and verification from floor level, making commissioning faster and safer across commercial lighting projects. As part of EiKO’s controls lineup, it combines programming, profile management, and manual light control in one compact device.
Key Features and Benefits
- Two-way infrared communication enables both parameter upload and live setting retrieval from installed sensors
- Ladder-free commissioning helps reduce labor time and improves jobsite safety
- Stores and recalls up to 4 custom profiles plus default profile for rapid multi-sensor setup
- Supports advanced control tuning including ambient lux, dim levels, delays, sensitivity, and burn-in/test modes
- Intuitive keypad and LCD workflow speeds startup, troubleshooting, and verification
- Protective rubber jacket improves durability for field use
Specifications
- Power supply: 2 x AAA 1.5V battery (alkaline preferred)
- Display unit: 128 x 96 dot matrix LCD
- Communication: 940nm infrared Tx & Rx
- Upload range: Up to 33′ (10m)
- Uploading time: 6 seconds
- Downloading time: 10 seconds
- LCD auto-off time: 1 minute
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Dimensions: 5.1″ x 2″ x 0.8″ (130 x 50 x 21mm)
Common Uses
Ideal for commissioning and maintaining occupancy/daylight sensor systems in warehouses, offices, schools, retail spaces, and other commercial interiors where quick, repeatable sensor configuration is required.
