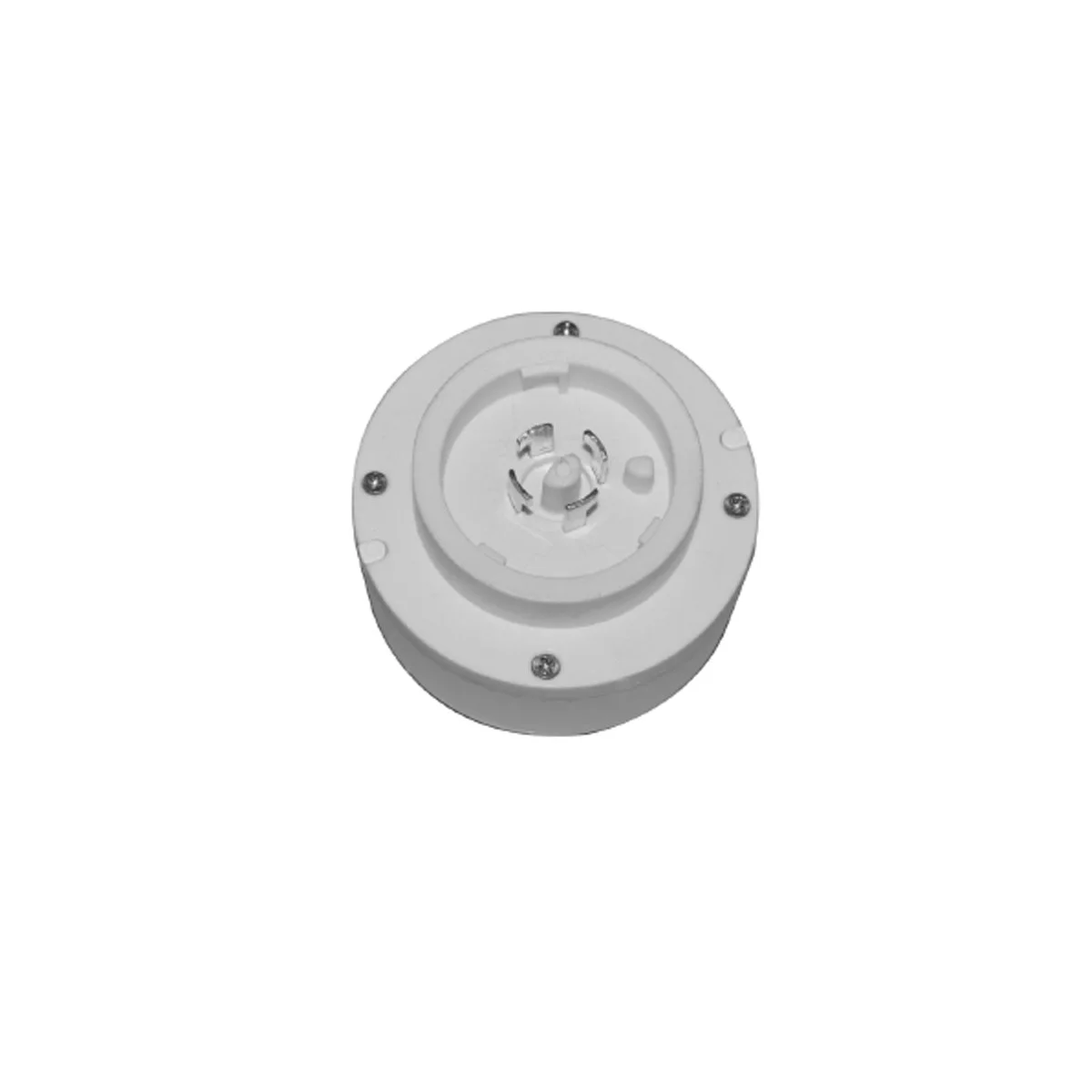

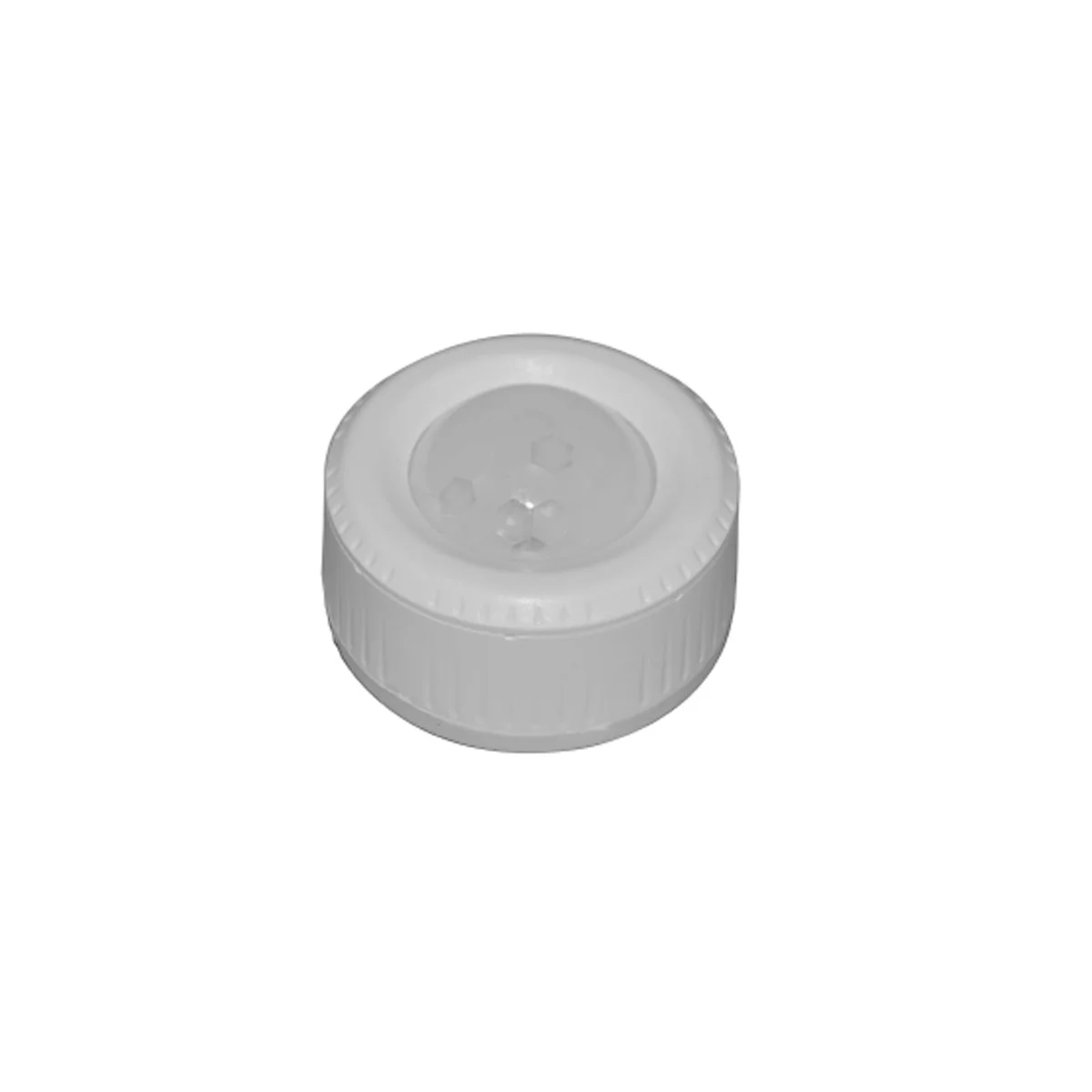

The EiKO SENA-WZPA-WH is a networked Z10 twist-lock wireless PIR motion sensor designed for modern lighting control projects. As part of EiKO’s NLC lineup, it enables scalable Bluetooth mesh control without requiring hubs or gateways. This sensor helps streamline commissioning while improving energy performance through occupancy-based and daylight-responsive control.
Key Features and Benefits
- Bluetooth SIG Mesh connectivity supports flexible wireless lighting control across grouped zones and areas.
- Fast Z10 twist-lock installation reduces field labor and simplifies sensor deployment.
- Supports occupancy/vacancy strategies, daylight harvesting, trim settings, ambient threshold, and time delay via mobile/web apps.
- Continuous and bi-level 0-10V dimming capability for improved energy savings and visual comfort.
- Built for demanding environments with IP65 protection and wet-location suitability.
- Certified for broad project acceptance: ETL Listed, FCC, and RoHS compliant, backed by a 5-year limited warranty.
Specifications
- Input Voltage: 12-24VDC
- Input Current: 50mA
- Sensor Technology: PIR
- Operating Frequency: 2.4GHz-2.483GHz
- Mounting Height: 8′-40′
- Communication Range: Up to 200′
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Housing: High-strength UV-resistant plastic
- Finish: White
- Installation Type: Z10 twist lock
Common Uses
Ideal for warehouses, parking garages, parking lots, car dealerships, and sports field lighting zones where wireless control, occupancy sensing, and daylight-based dimming are needed.
