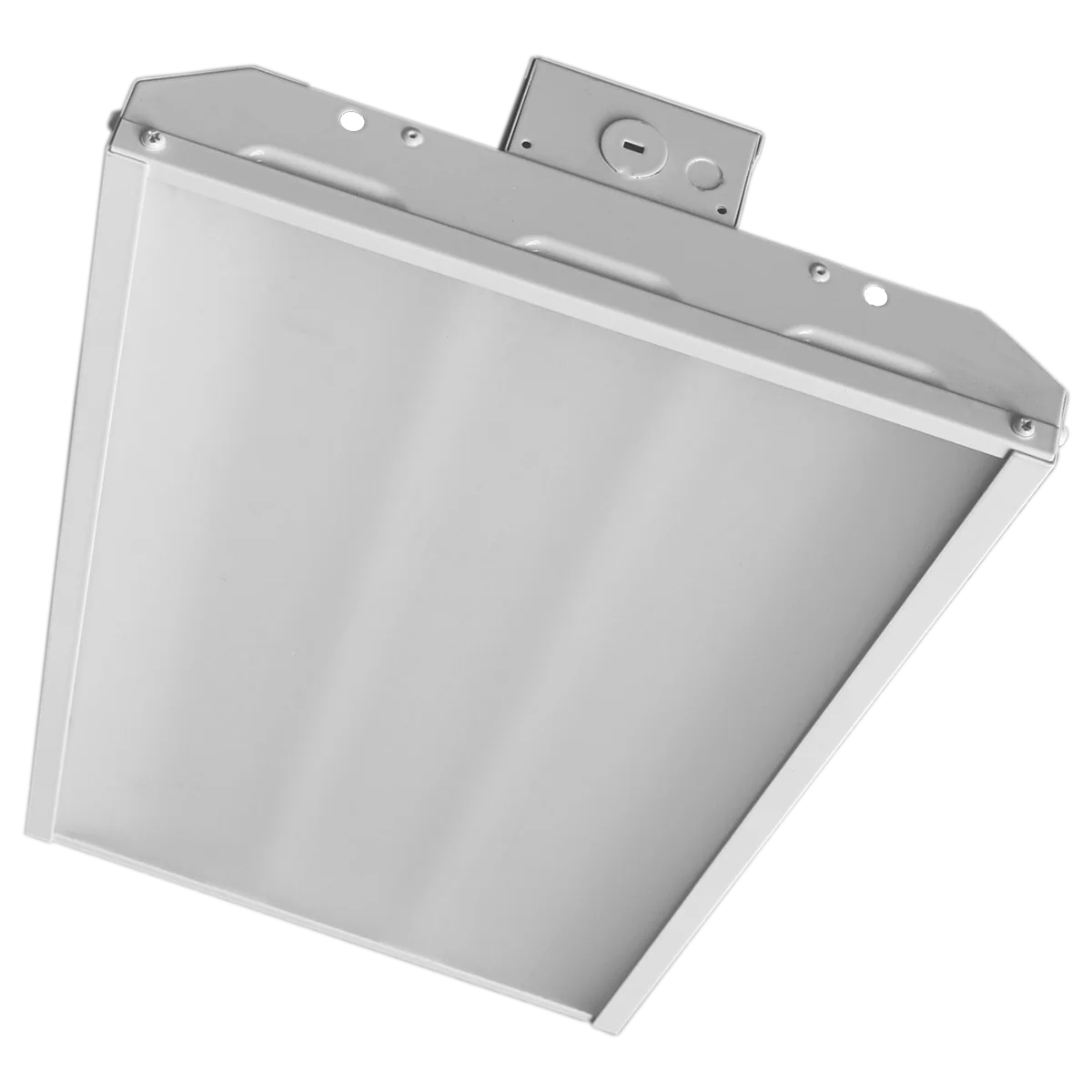

The EiKO LLH series is a high-performance linear high bay family designed to replace fluorescent and HID high bay systems in demanding commercial and industrial spaces. This LLH-2DX-40K-U configuration combines strong output, efficient operation, and a classic single-lens appearance for broad facility upgrades. It is a core option in EiKO’s high bay lineup for projects that need reliable light quality, controls compatibility, and long service life.
Key Features and Benefits
- Delivers high efficacy up to 135 lm/W to help reduce energy use versus legacy fluorescent and HID fixtures
- Integrated 0-10V dimming with dim-to-off capability for improved energy management and control flexibility
- Classic frosted single-lens design helps reduce glare while maintaining even light distribution
- Heavy-gauge steel housing with welded frame construction improves durability in commercial and industrial environments
- Built-in 2.5kV surge protection supports dependable operation in electrically noisy facilities
- UL Listed, RoHS compliant, and DLC Premium qualified for rebate-friendly, code-conscious projects
- Backed by a 5-year limited warranty for long-term peace of mind
Specifications
- Wattage: 162W
- Light output: 21,850 lumens
- Efficacy: 135 lm/W
- CCT: 4000K
- CRI: >80
- Input voltage: 120-277V
- Dimming: 0-10V, down to <10% with dim-to-off
- Power factor: >0.9; THD: <20%
- Auxiliary power: 12VDC, 100mA
- Operating temperature: -22°F to 122°F (-30°C to 50°C)
- Estimated lifetime: L80 >54,000 hours at 45°C; L90 >36,000 hours at 45°C
- Fixture size: 2′ form factor (23.8″ x 12.6″ x 3.65″)
- Mounting hardware included: 10′ Y-toggle aircraft cable kit
Common Uses
Ideal for warehouses, manufacturing plants, distribution centers, grocery stores, gymnasiums, indoor recreational facilities, cold storage areas, big box retail, and service repair centers.
