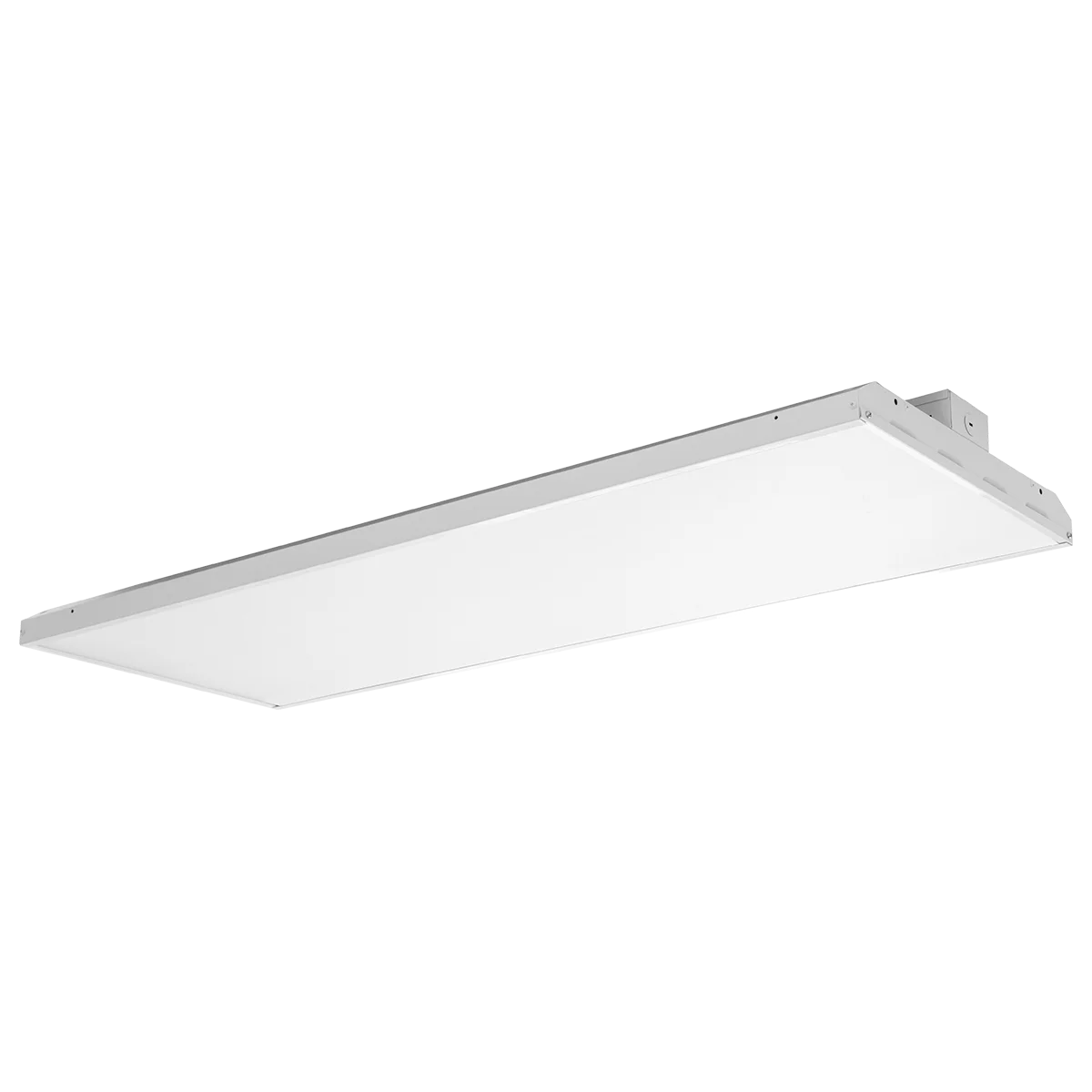

The EiKO LLH series LED Linear Highbay is a cost-effective, high-performance solution for demanding highbay and lowbay applications. Designed to replace legacy HID and fluorescent systems, this 5C configuration delivers powerful light output with strong efficacy and robust industrial construction. It is a key option in EiKO’s linear high bay lineup for large commercial and industrial facilities requiring reliable, long-life illumination.
Key Features and Benefits
- Delivers ultra-high output with strong efficacy to reduce energy use versus traditional HID and fluorescent fixtures
- Supports smooth 0-10V continuous dimming for better lighting control and potential additional energy savings
- Built with a heavy-gauge steel welded frame to resist twisting and bowing in demanding environments
- Includes built-in 2.5kV surge protection to improve durability and electrical resilience
- UL Listed for damp locations and RoHS compliant for dependable commercial deployment
- Backed by a 5-year limited warranty for long-term confidence
Specifications
- Part Number: LLH-5C-40K-V
- Series: LLH LED Linear Highbay
- Length: 4′
- Power: 321W
- Lumen Output: 41,920 lm
- Efficacy: 130 LPW
- CCT: 4000K
- CRI: 80+
- Input Voltage: 347-480V
- Driver: 0-10V dimmable, driver efficiency >85%, power factor >0.9, THD <20%
- Lens: Diffuse frosted acrylic (standard)
- Operating Temperature: -22°F to 122°F (-30°C to 50°C)
- Rated Life (L70): >100,000 hours at 40°C; >72,000 hours at 50°C
- Mounting: 10′ Y-toggle aircraft cable hardware included
- Equivalent Replacement: Up to 1000W HID
Common Uses
Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, grocery and big box retail, indoor recreational facilities, cold storage areas, and service repair centers.
