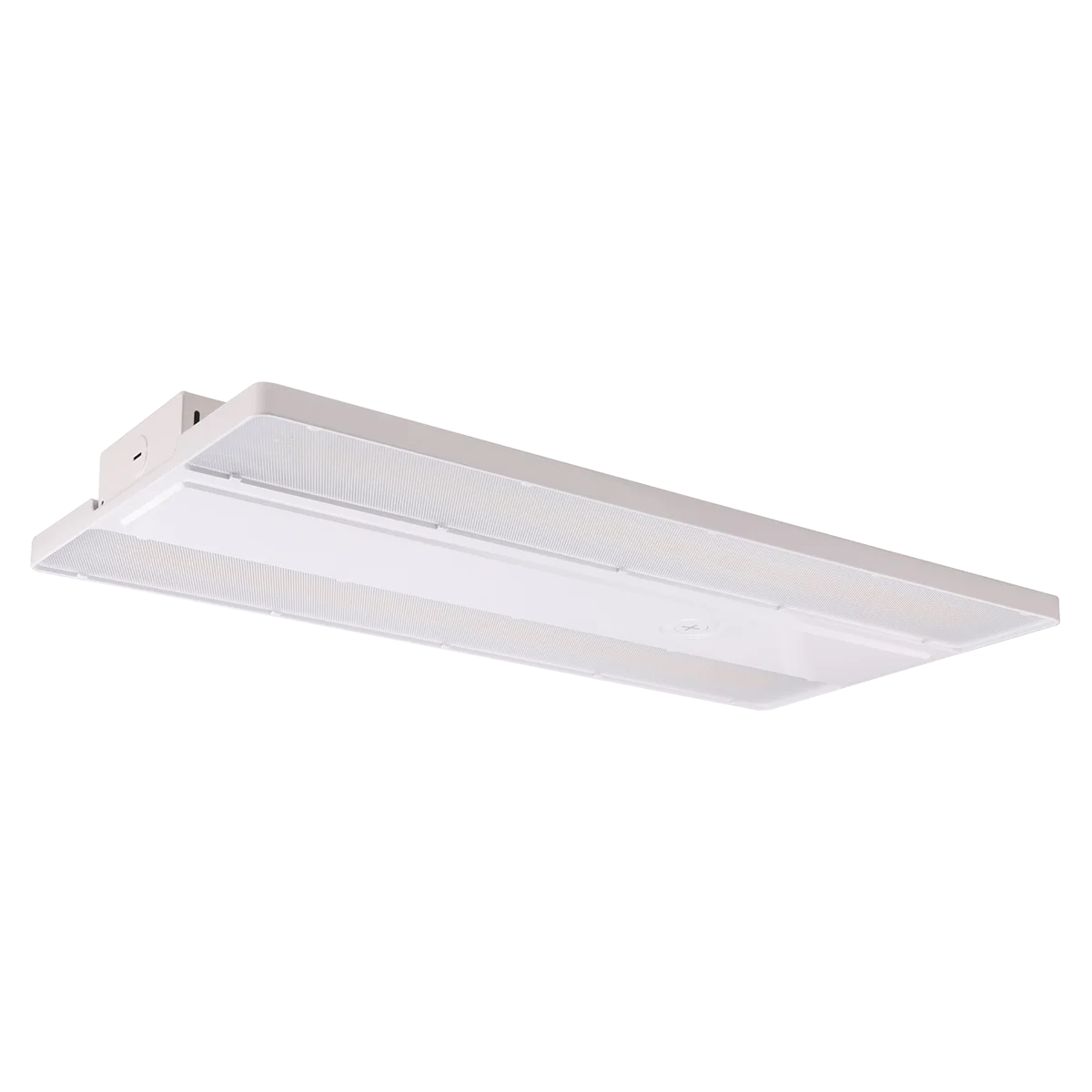

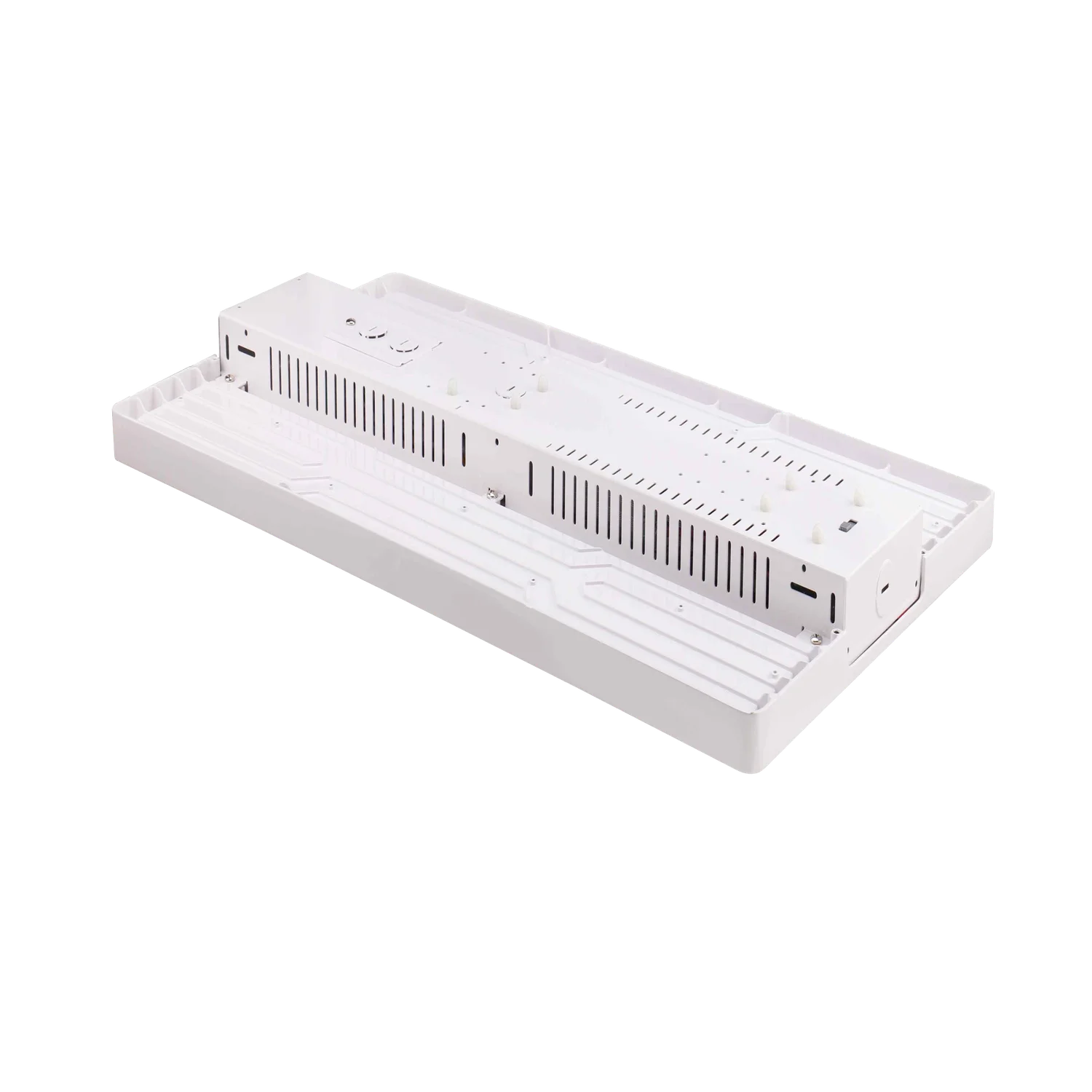

The EiKO LH1 Linear High Bay is a high-performance industrial fixture designed for large indoor spaces that demand strong, efficient illumination. As part of EiKO’s Controls Ready lineup, it combines flexible power selection, robust construction, and long-life LED performance for modern commercial facilities.
Key Features and Benefits
- PowerSet flexibility with four selectable wattage levels to match light output to application needs
- Controls Ready design with screw-in receptacle for quick sensor or networked control integration
- DLC Premium qualified for top-tier efficacy and energy savings potential
- Backed by a 5-year limited warranty for dependable long-term operation
- Frosted polycarbonate lens helps reduce glare while maintaining strong illumination
- Supports optional external emergency battery backup configurations for added safety
Specifications
- Lumen Output: 66000/60000/57000/54000
- Wattage: 440W/400W/380W/360W
- Voltage: 120-277V
- Color Temperature: 5000K
- CRI: 80+
- Dimming: 0-10V, dim-to-off
- Beam Angle: 90°
- Efficacy: 150 lm/W
- Rated Life (L70): 100000 hours
- Power Factor: >0.9
- THD: <20%
- Operating Temperature: -40°C to 50°C
- Housing: Die-cast aluminum, white powder coat
- Lens: Impact-resistant frosted polycarbonate
- Fixture Dimensions: 29-1/2″ L x 14-3/16″ W x 2-3/8″ H
- Weight: 13.0 lbs
Common Uses
Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, big box retail, service repair centers, grocery facilities, and indoor recreational or cold storage environments.
