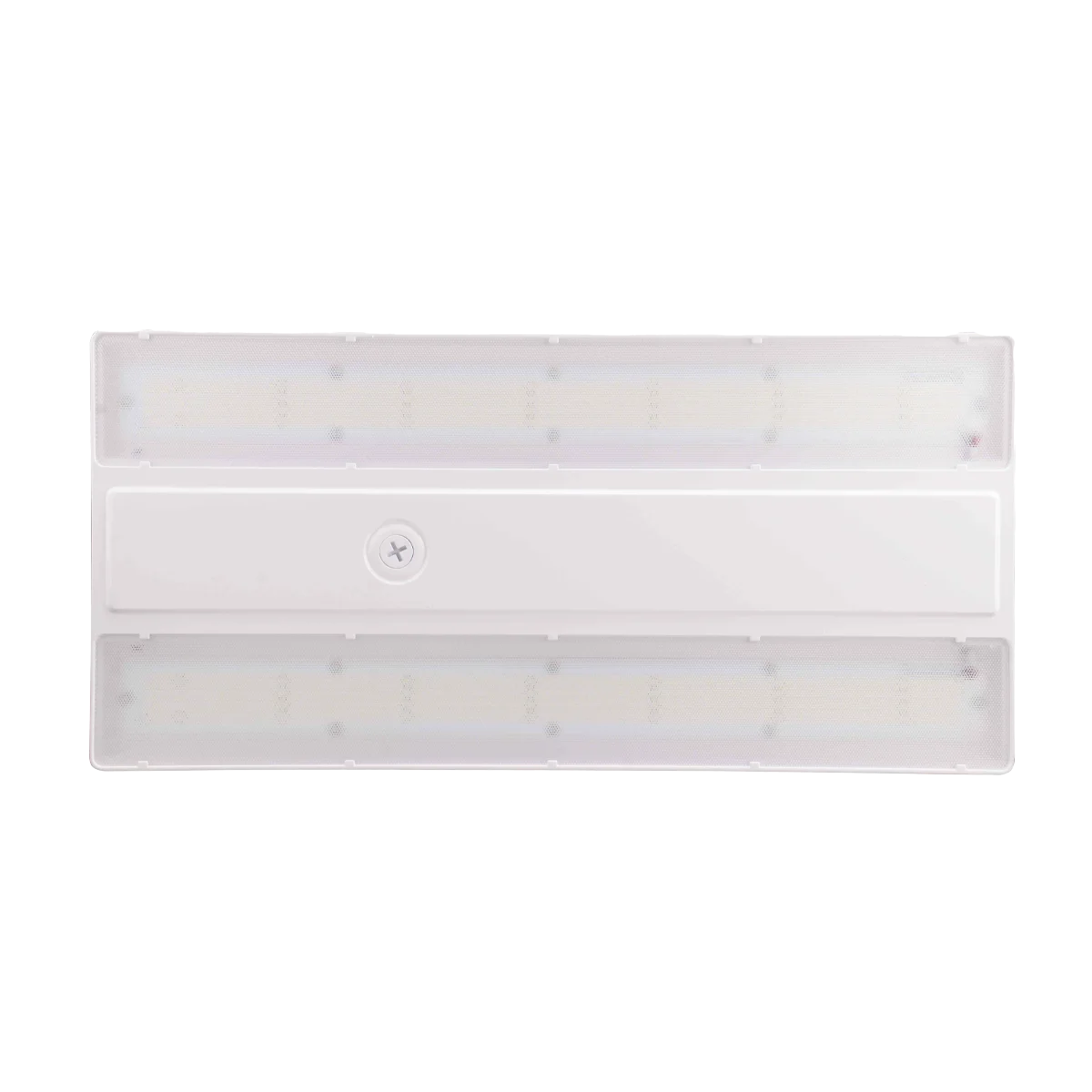

The EiKO LH1 Linear High Bay series is a high-performance indoor lighting solution built for demanding commercial and industrial environments. Designed with controls-ready flexibility and robust thermal management, it is a core option in EiKO’s high bay lineup for efficient, long-life illumination.
Key Features and Benefits
- Delivers high-output illumination up to 36,000 lumens with strong 150 lm/W efficacy for energy savings.
- Controls-ready design with screw-in receptacle simplifies future sensor and networked control upgrades.
- Frosted polycarbonate lens helps reduce glare while maintaining broad, uniform light distribution.
- Durable die-cast aluminum body with molded heatsink fins supports reliable operation in tough environments.
- Certified for quality and compliance with UL Listed, FCC, RoHS, ICES-005, and DLC Premium qualification.
- Backed by a 5-year limited warranty for long-term project confidence.
Specifications
- Lumen Output: 36000
- Wattage: 240W
- Voltage: 277-480V
- Color Temperature: 4000K|5000K
- CRI: 80
- Dimming Type: 0-10V
- Beam Angle: 90°
- Power Factor: 0.9
- THD: 20
- Rated Life (L70): 100000 hours
- Max Ambient Temperature: 50°C
- Housing Material: Die-cast aluminum
- Lens Material: Polycarbonate
- Finish / Color: White powder coat
Common Uses
Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, grocery stores, cold storage areas, big box retail, and service repair facilities where high mounting heights and dependable light levels are required.
