The Lum-Tech LTG-48220 is part of the Modera-CSL Eclipse Steplight Series, designed as a compact vertical clip-in fixture for clean architectural step lighting. This model combines low-wattage efficiency, selectable white tones, and reliable dimming performance for modern residential and commercial interiors.
Key Features and Benefits
- Selectable 5CCT output lets you tune the ambiance from warm to cool white in one fixture.
- Triac dimming down to 5% supports smooth light control for comfort and energy savings.
- IC-rated construction allows installation in insulated ceiling/wall assemblies where required.
- Long 50,000-hour life reduces maintenance in hard-to-access step and corridor locations.
- Title 24 and JA8 compliant design helps meet stringent energy code requirements.
- Backed by a 3-year warranty for dependable project support.
Specifications
- Lumen Output: 200
- Wattage: 5W
- Voltage: 120V
- Color Temperature: 2700K|3000K|3500K|4100K|5000K
- CRI: 90
- Beam Angle: 80°
- Cut Out: 2.50″ x 2.50″

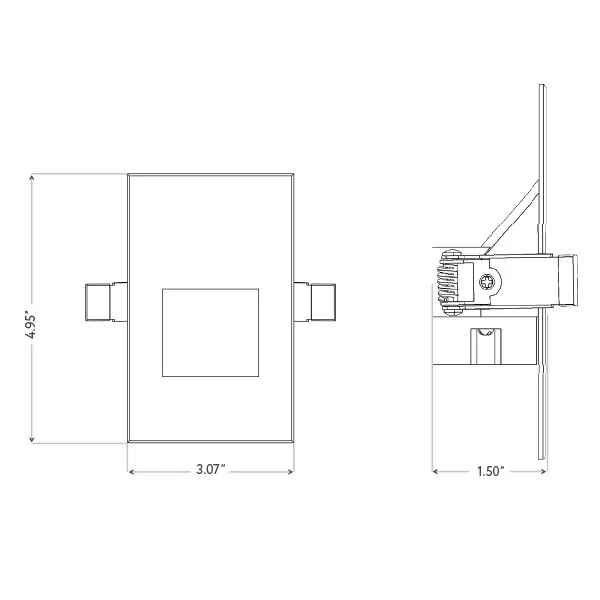

- Overall Dimensions (OD): 3.07″ x 4.95″
- Depth: 1.50″
- Plenum Rating: FT6
- Rated Life: 50,000 hours
Common Uses
Ideal for interior stairways, hallways, theater aisles, corridor transitions, and low-level wayfinding in multifamily, hospitality, and light commercial spaces.
