The E2BL Series LED patient bed light delivers independently controlled uplight and downlight in a streamlined 48.5-inch fixture for healthcare bedside use. Its selectable light modes, locating nightlight, and long-life dimmable LED design offer a practical alternative to traditional bi-directional fluorescent bed lights.
Key Features and Benefits

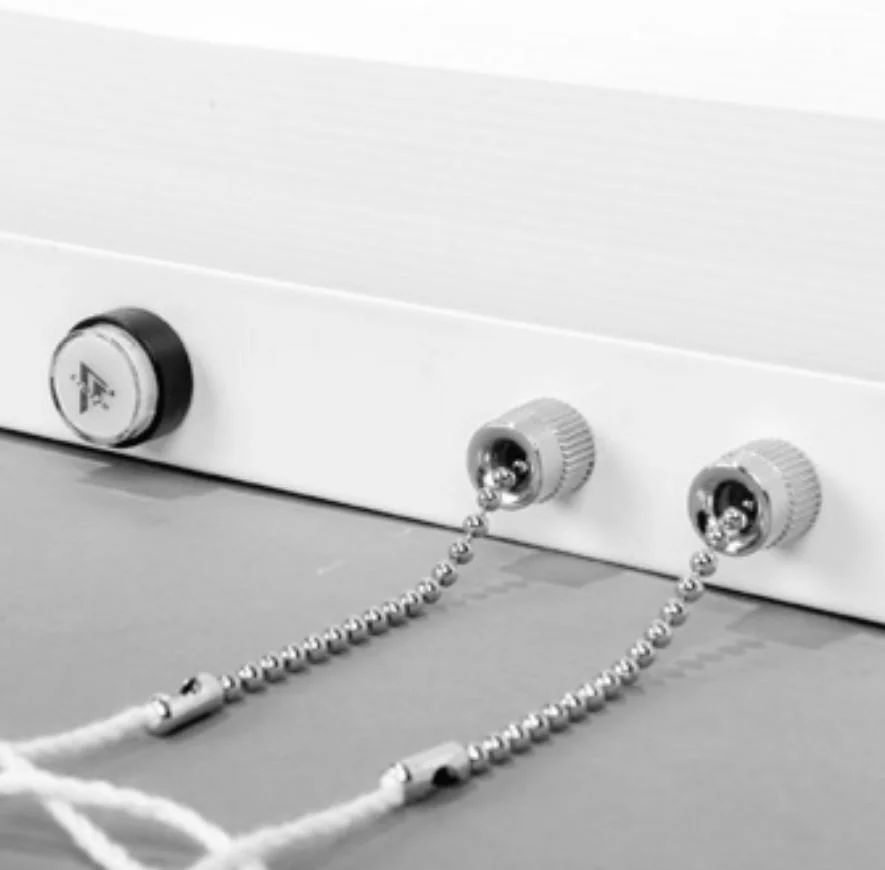

- Choose downlight, uplight, both together, or off with a dedicated pull-chain control.
- A second pull-chain switch operates the nightlight, while its indicator helps users find the controls in the dark.
- Adjust illumination to as low as 10% with a standard 0-10V DC dimming system.

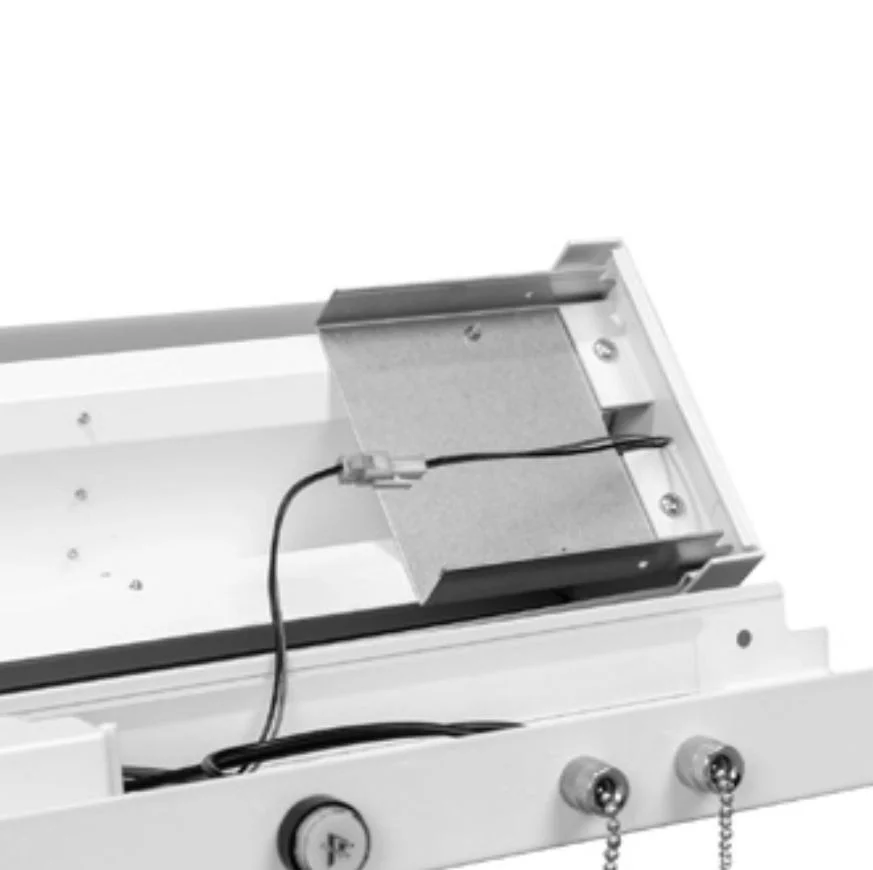

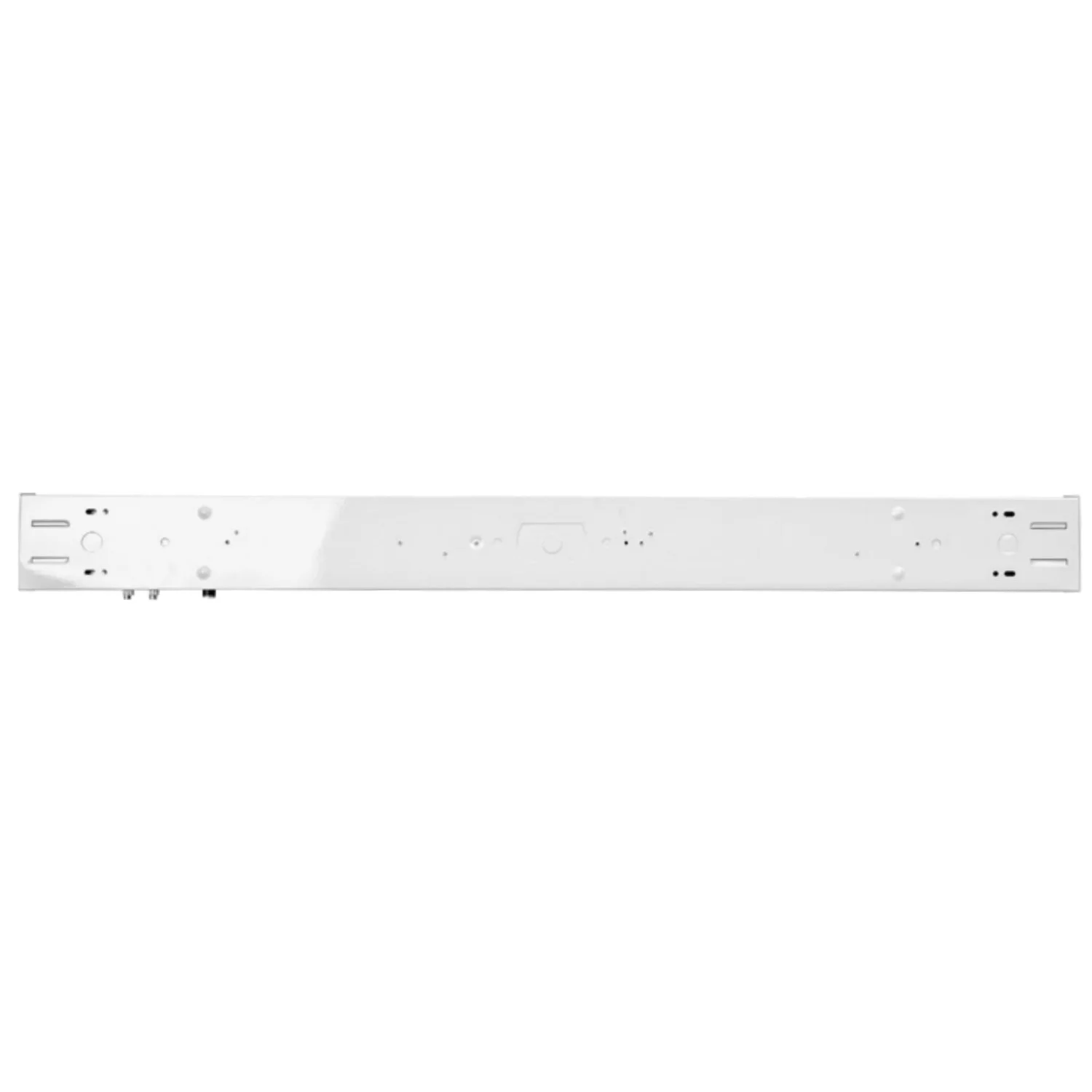

- Two-piece housing lets the lens assembly detach from the backplate for easier installation; multiple backplate knockouts support different wiring configurations.
- Long-service LED design provides a 50,000-hour system lifetime, over 84% lumen maintenance at 50,000 hours, and projected L70 of 100,000 hours.
- Pull-chain string extensions can be adjusted for easier access, up to 43 inches from the switch.
- UL listed, DLC 5.1-S qualified, RoHS compliant, and suitable for California Title 24, Part 6 (JA8) high-efficacy LED source requirements.
- Backed by a 10-year warranty.
Specifications
- Fixture type: LED patient bed light

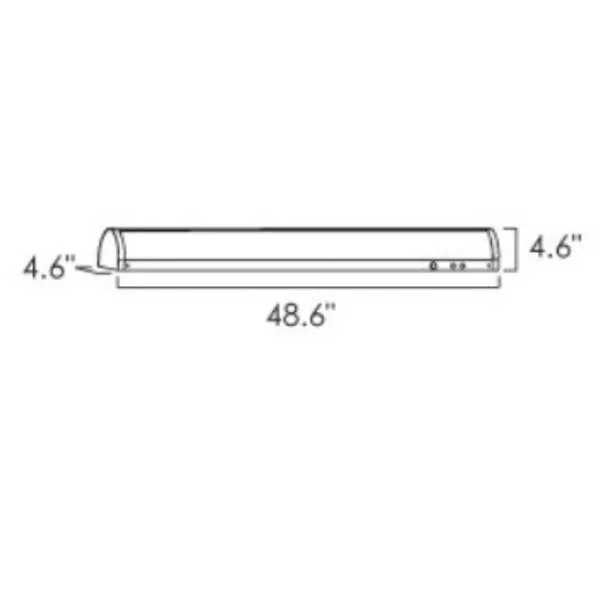

- Fixture dimensions: 48.5 in. long × 4.5 in. high × 4.5 in. deep
- Total light output: 6,900 lumens (4,610 down / 2,290 up)
- Wattage: 58W total (40W down / 18W up)
- Efficacy: 119 lumens per watt
- Color temperature: 4000K
- Color rendering index: 83
- Input voltage: 120VAC
- Dimming: 0-10V
- Control: Two pull-chain switches for nightlight and selectable lighting modes
- Pull-chain extension: Maximum 43 in. from switch
- Power factor: 0.99
- Total harmonic distortion: 9%
- Operating temperature: -20°C (-4°F) minimum start; 40°C (104°F) maximum
- Ambient temperature for lumen maintenance data: 25°C
- Lumen maintenance: Greater than 84% at 50,000 hours
- Projected L70 lifetime: 100,000 hours
- Fixture weight: 8 lb
- Shipping: 9 lb per package; 1 fixture per pack; 2 per case; 20 lb per case; pallet quantity 72
Common Uses
Designed for installation above patient beds in hospital rooms, nursing homes, long-term care facilities, and other medical or healthcare environments. The independent up/down lighting and accessible pull chains support bedside tasks and room illumination, while the nightlight helps locate controls after dark.
